Steering Gear Assembly: Notes

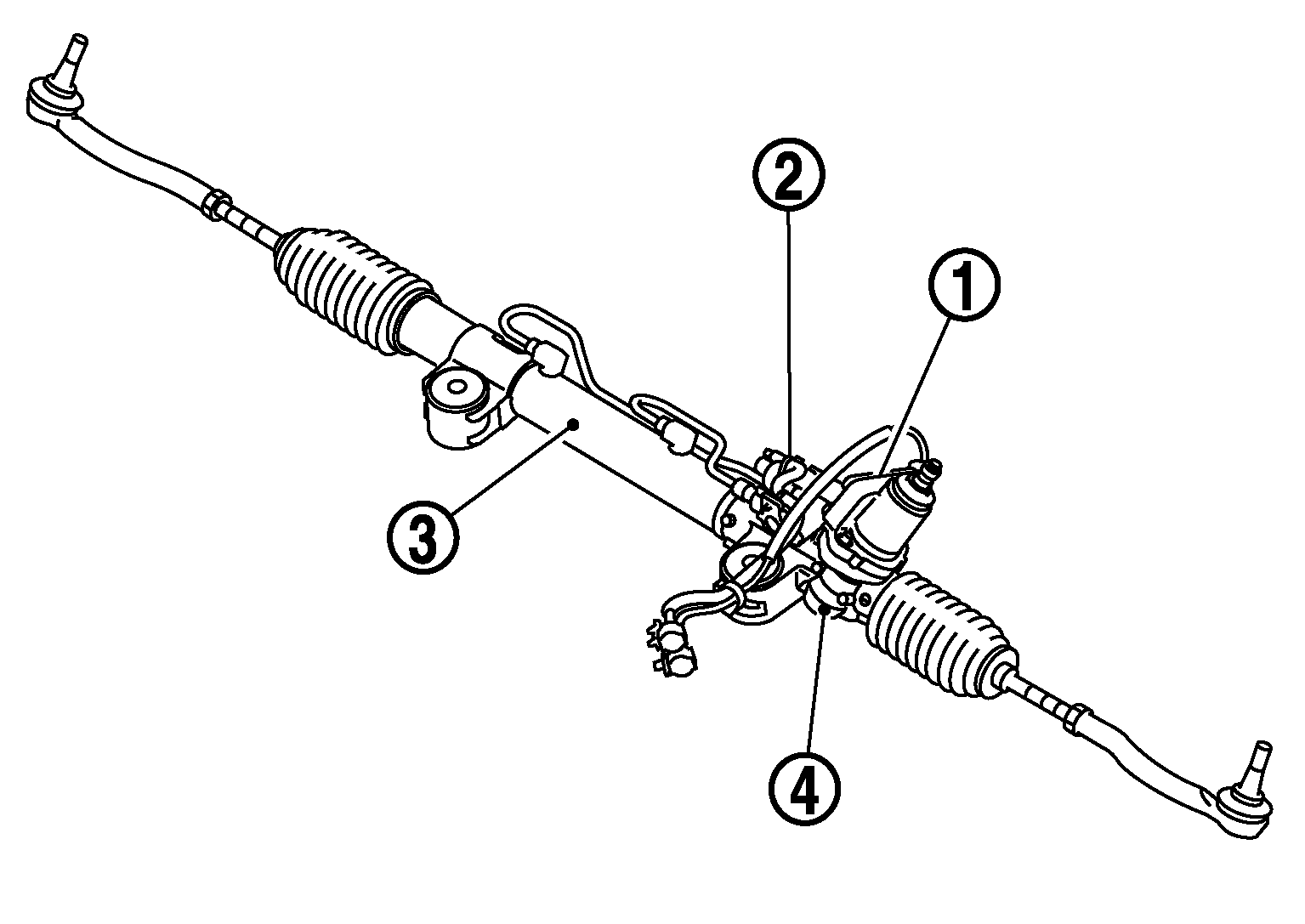

The steering gear assembly is primarily composed of the torque sensor (1), flow connection valve (2), cylinder (3), and steering gear (4).

GNSJSGIA0912Z-912Courtesy of NISSAN NORTH AMERICA, INC.
