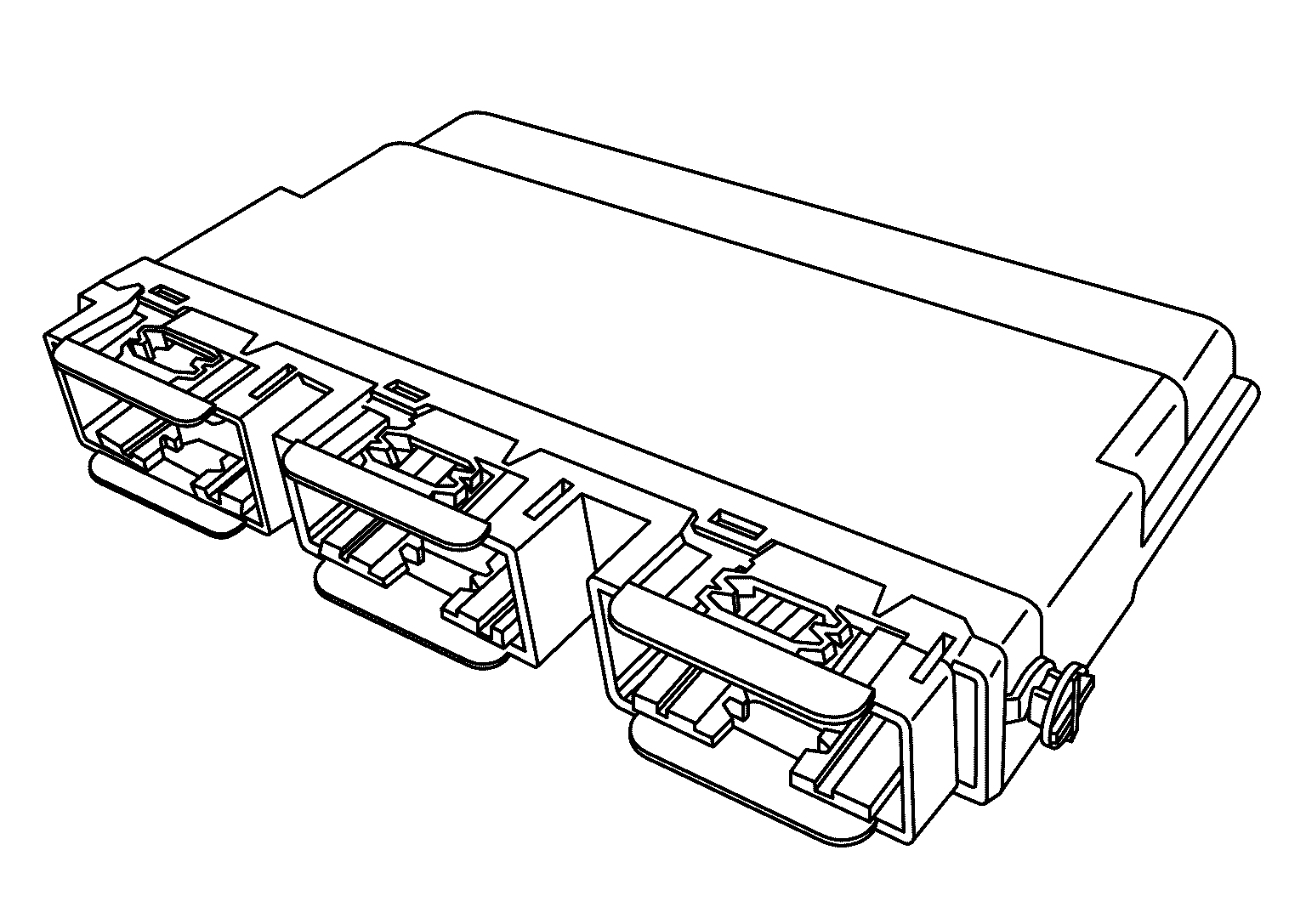

Seat Control Unit

It is connected to the CAN communication system.

Courtesy of NISSAN NORTH AMERICA, INC.
The address of each part is recorded.
Operates each motor of seat to the registered position.
Requests the operation of door mirror to front door control unit.
Perform the control of front seat adjustment switch group.
Operates the specific seat motor with the signal from front seat adjustment switch group.
