Timing Chart

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

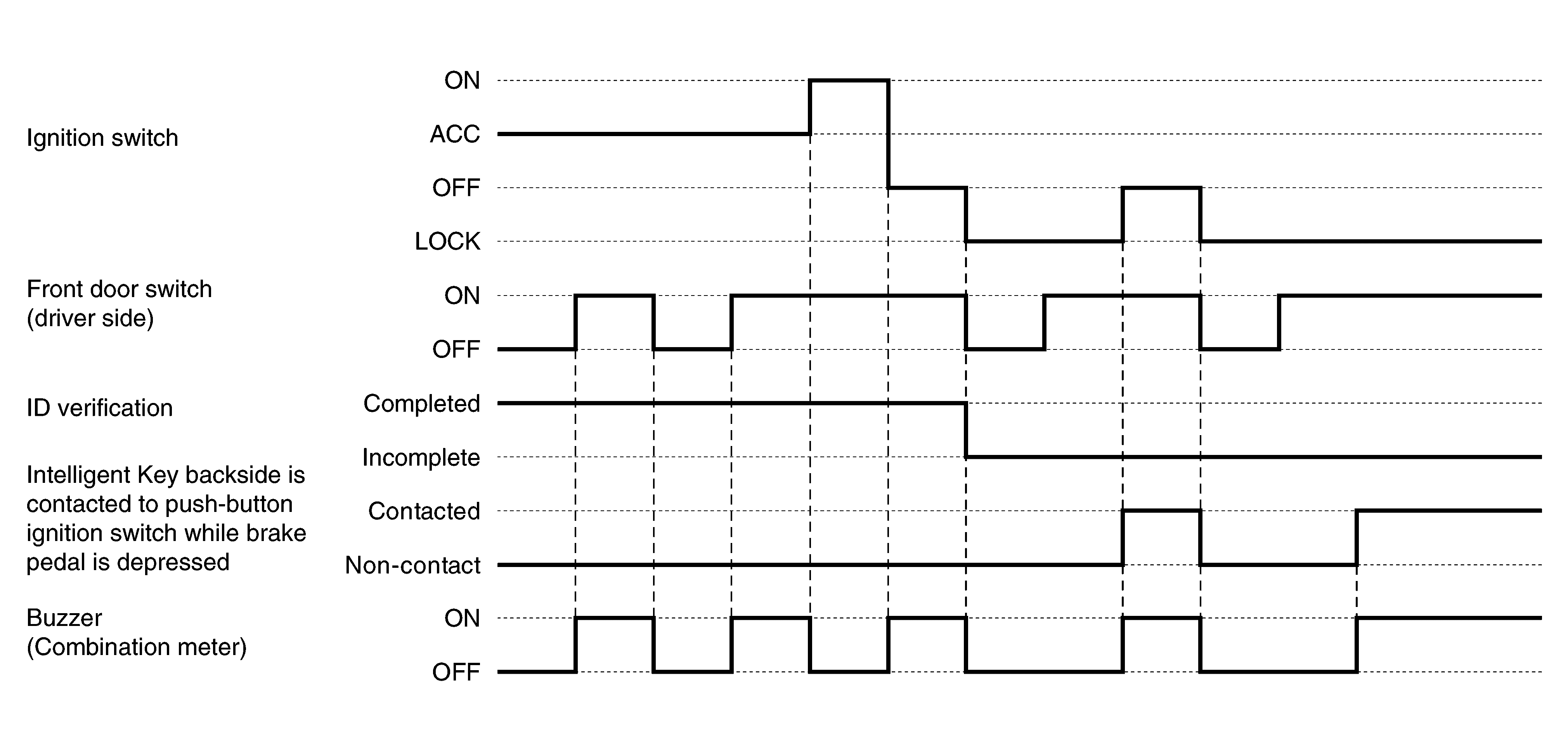

For internal

G09161410Courtesy of NISSAN NORTH AMERICA, INC.

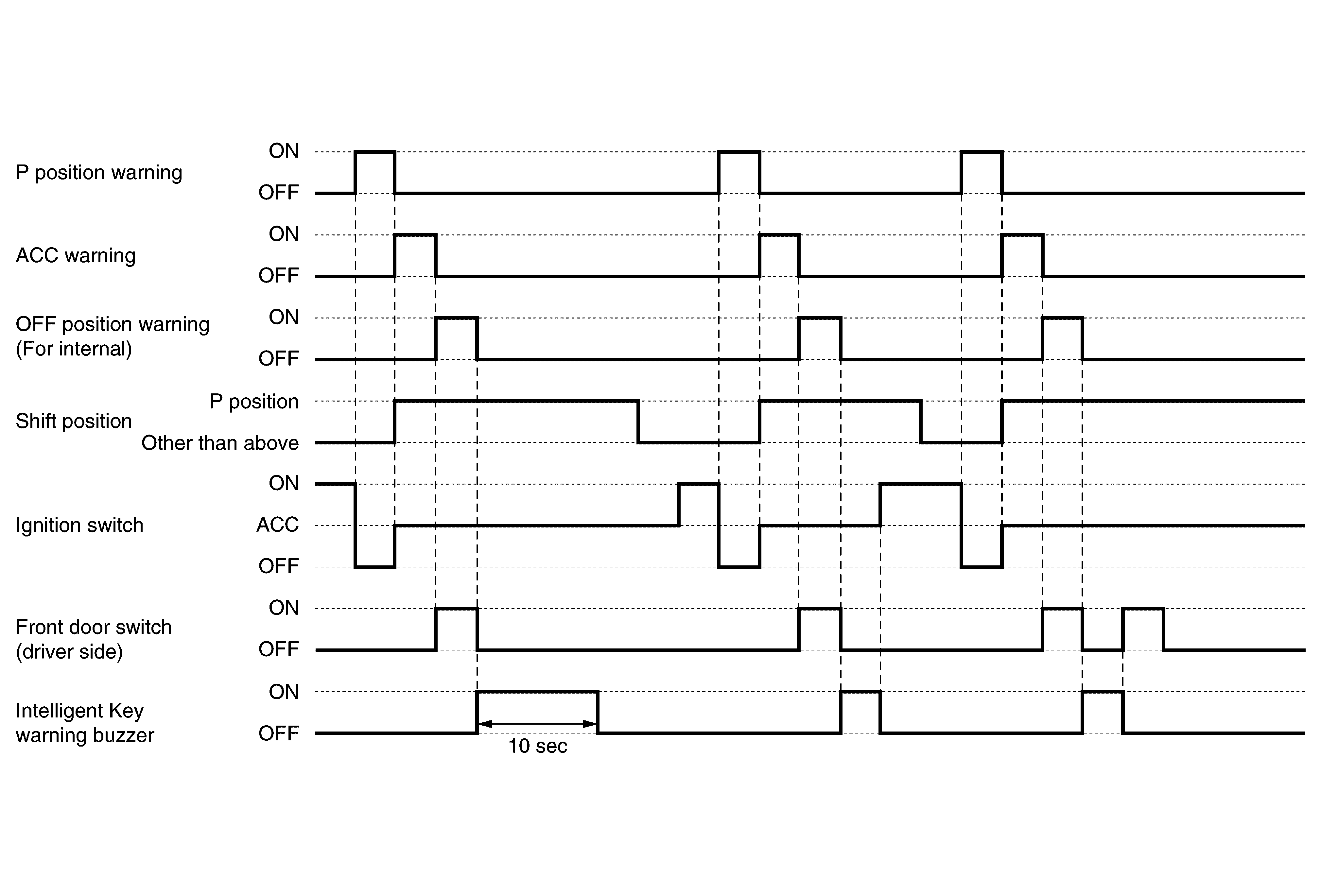

For external

G09161411Courtesy of NISSAN NORTH AMERICA, INC.
