System Diagram

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

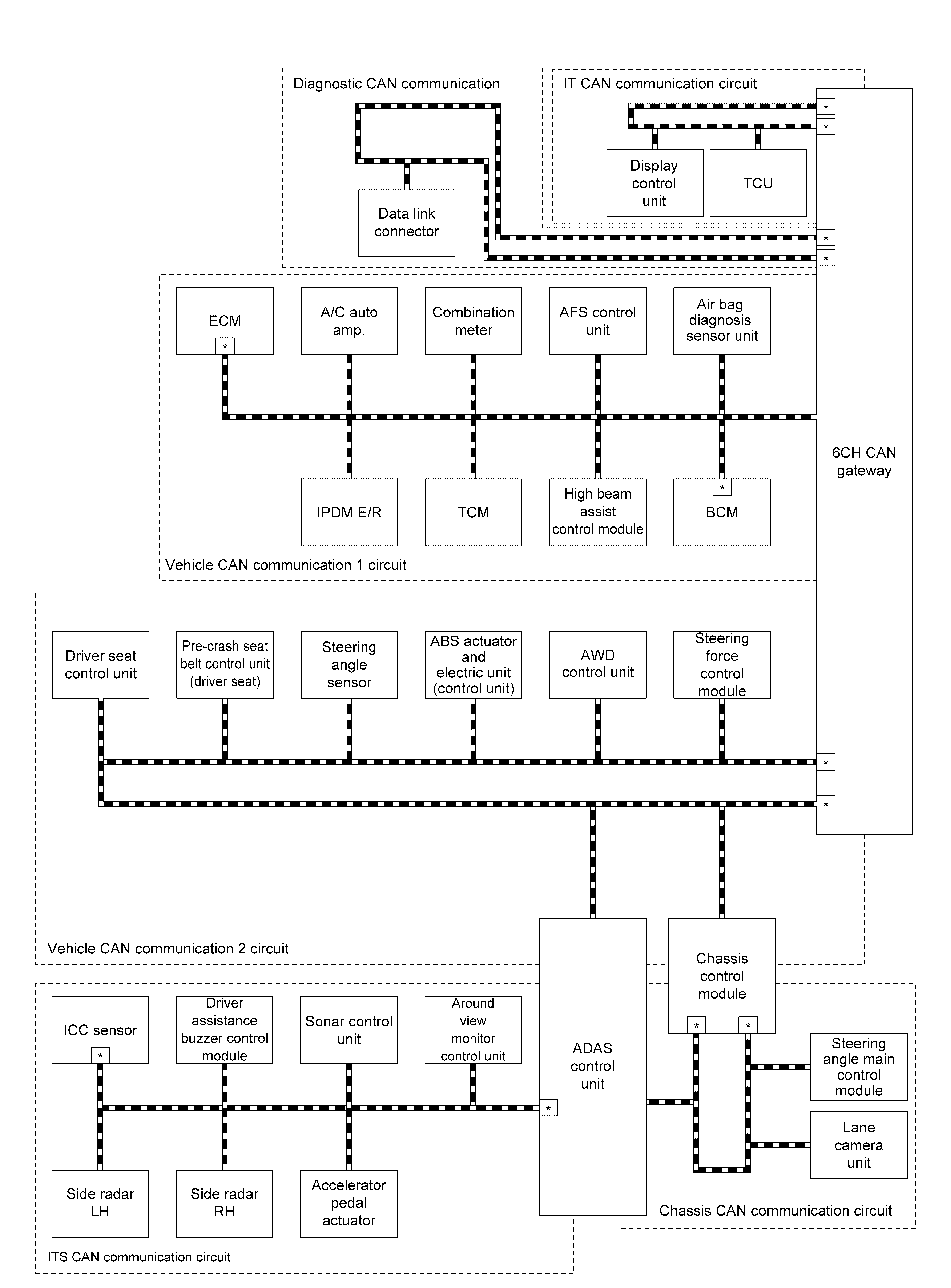

2.0L turbo gasoline engine with blind spot warning

Courtesy of NISSAN NORTH AMERICA, INC.

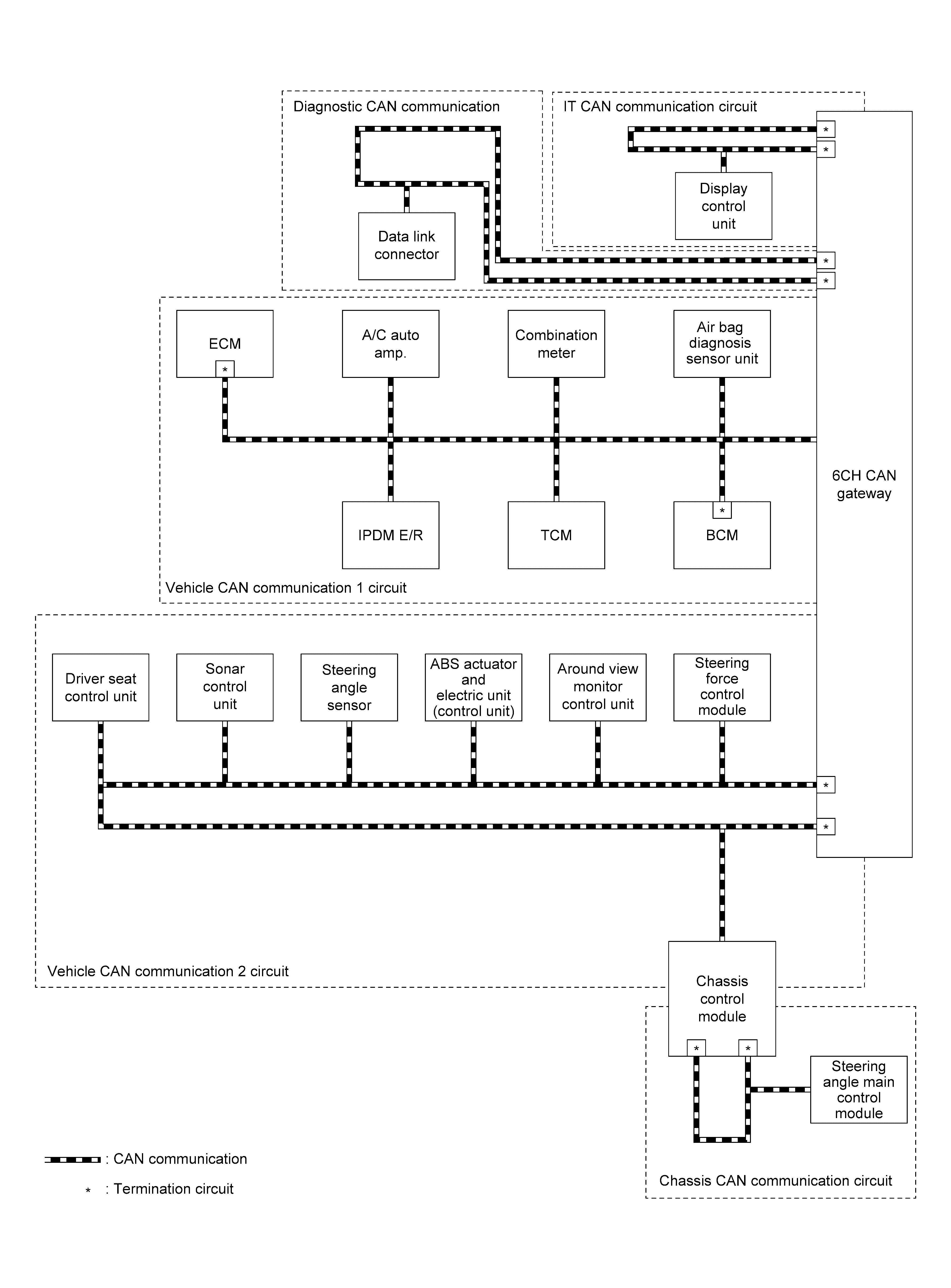

2.0L turbo gasoline engine without blind spot warning

Courtesy of NISSAN NORTH AMERICA, INC.

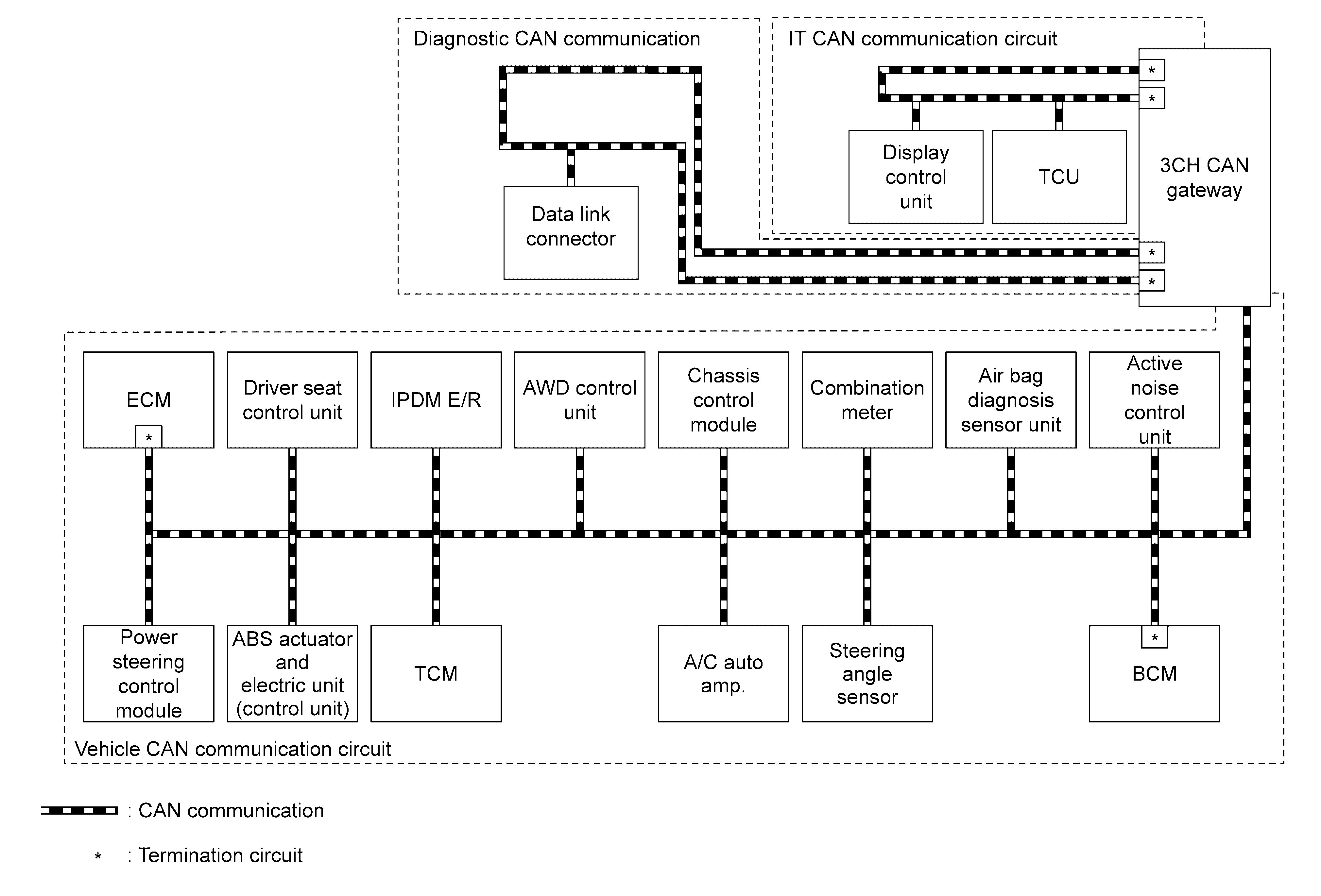

VR30DDTT engine without around view monitor system except with navigation system for Mexico

Courtesy of NISSAN NORTH AMERICA, INC.

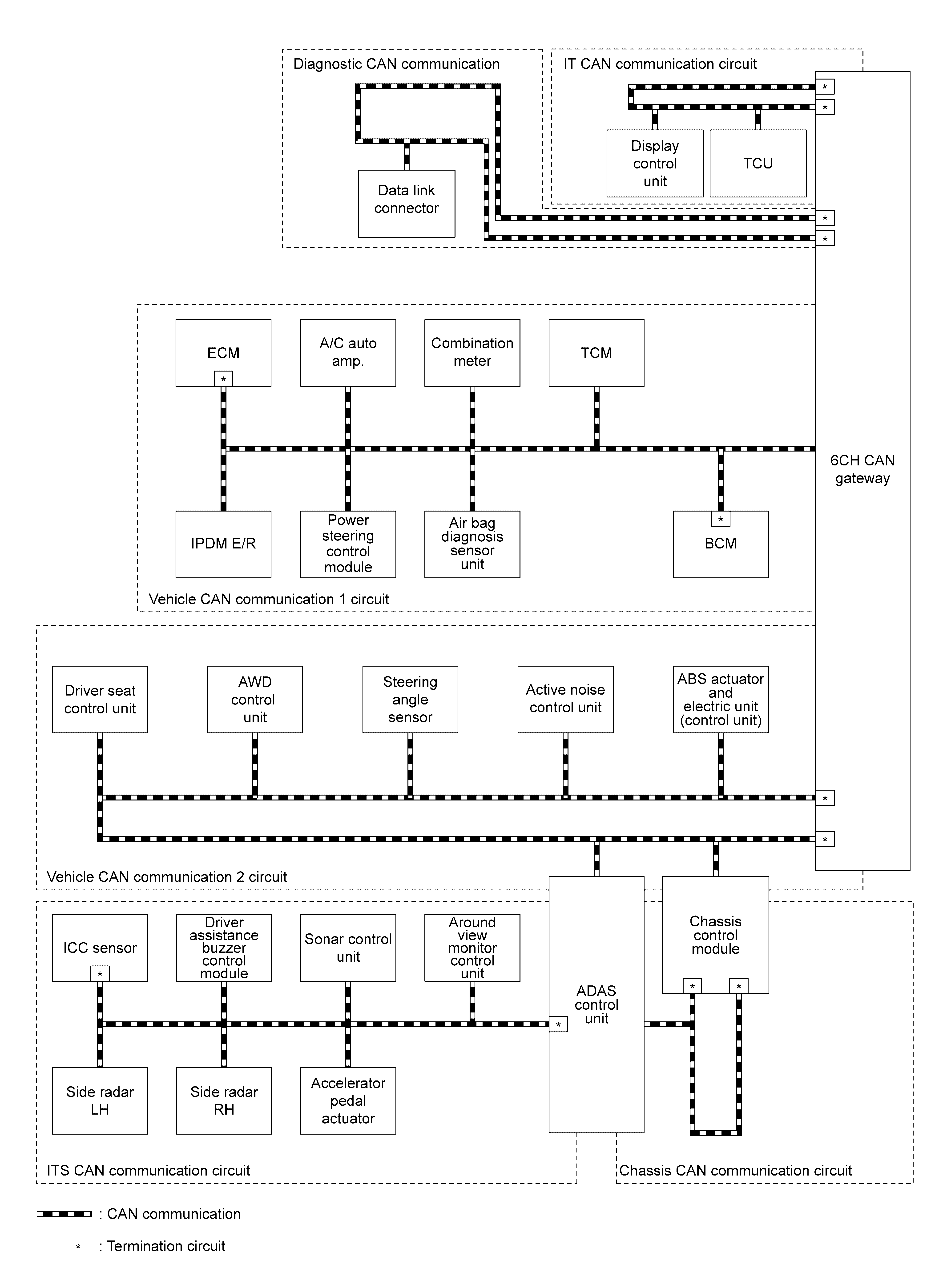

VR30DDTT engine without around view monitor system with navigation system for Mexico

Courtesy of NISSAN NORTH AMERICA, INC.

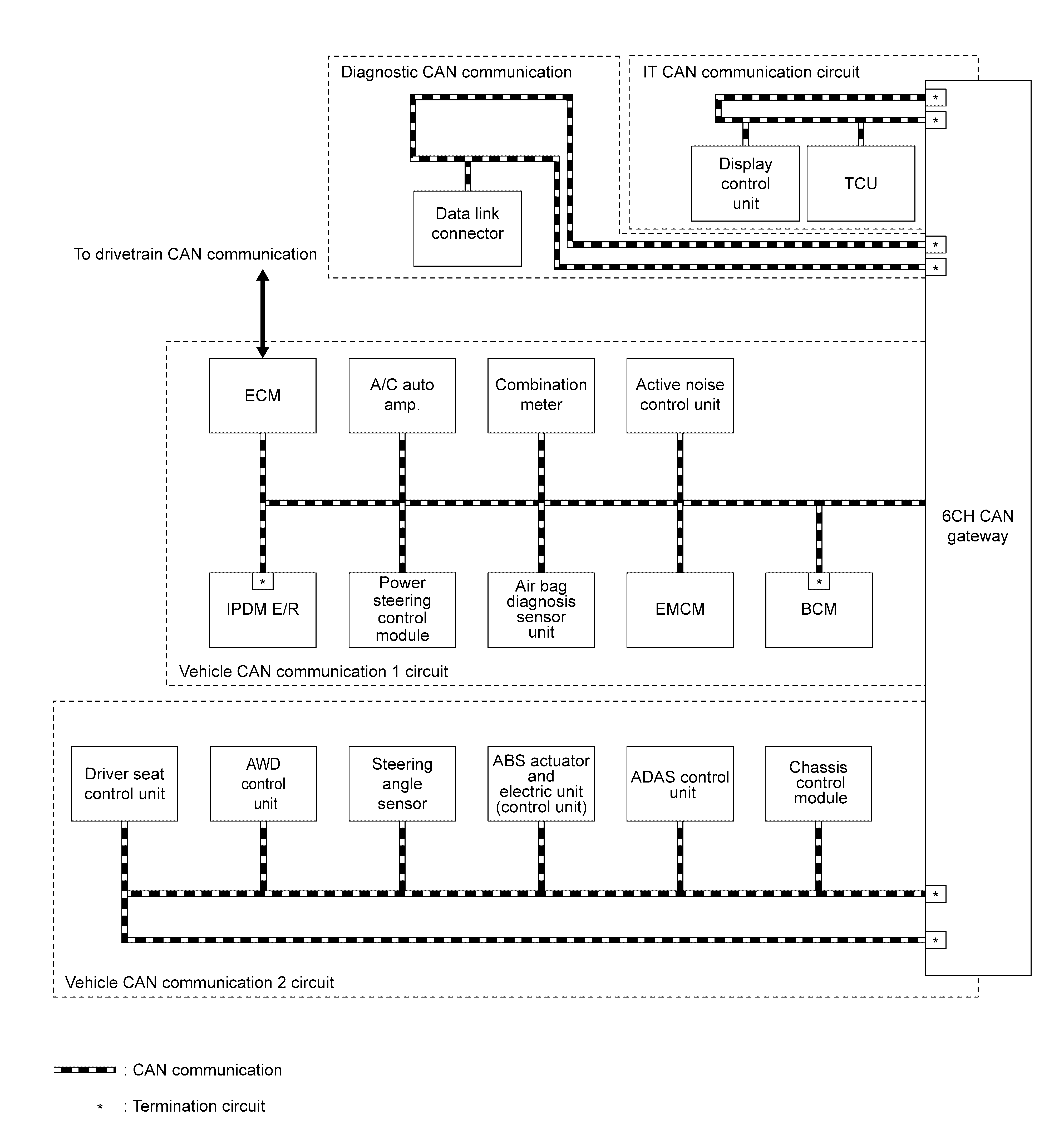

VR30DDTT engine with around view monitor system, without direct adaptive steering system

Courtesy of NISSAN NORTH AMERICA, INC.

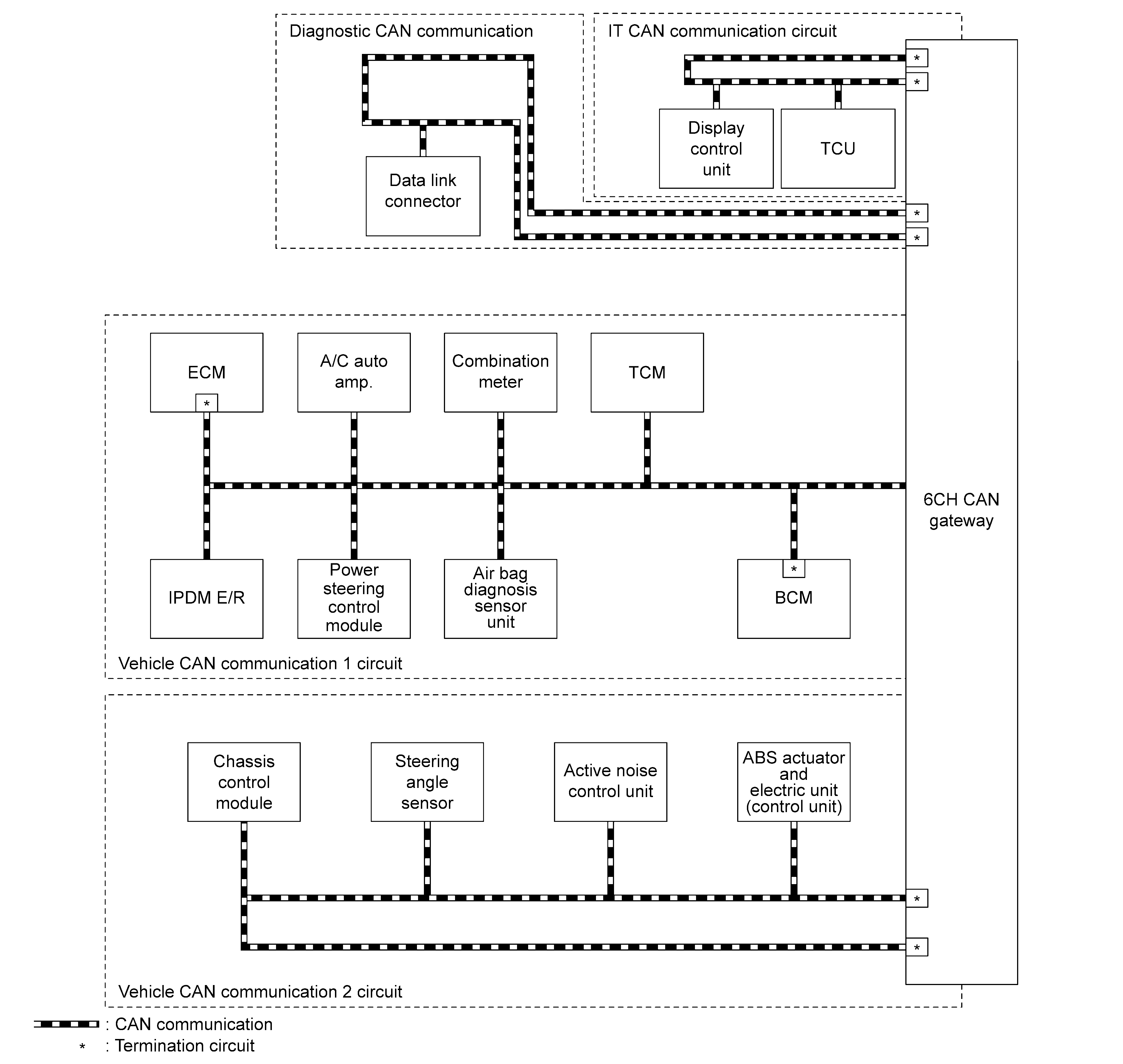

VR30DDTT engine with around view monitor system and direct adaptive steering system (with telematics system or high beam assist system)

Courtesy of NISSAN NORTH AMERICA, INC.

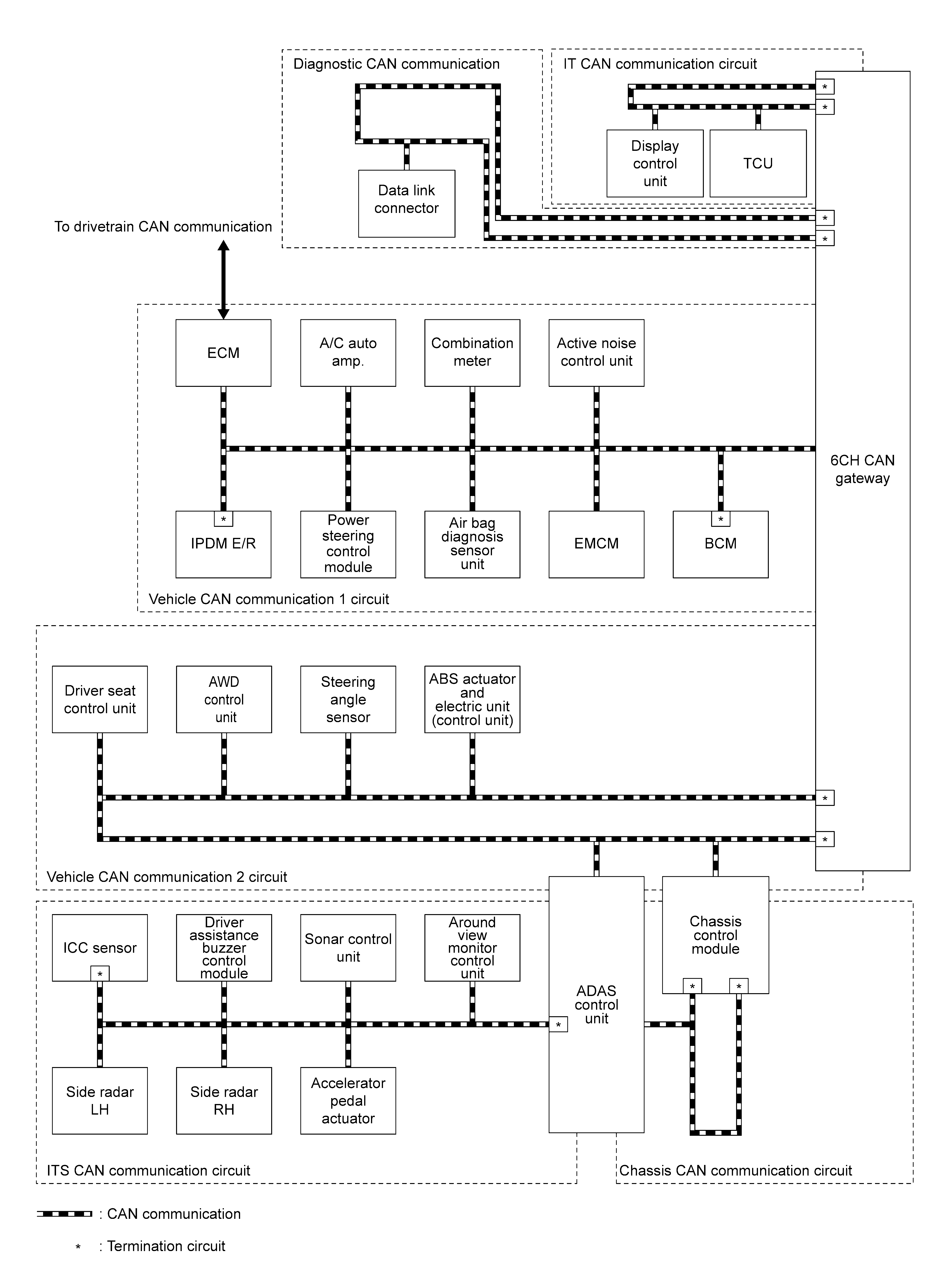

VR30DDTT engine with around view monitor system and direct adaptive steering system (without telematics system and high beam assist system)

Courtesy of NISSAN NORTH AMERICA, INC.
