Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.

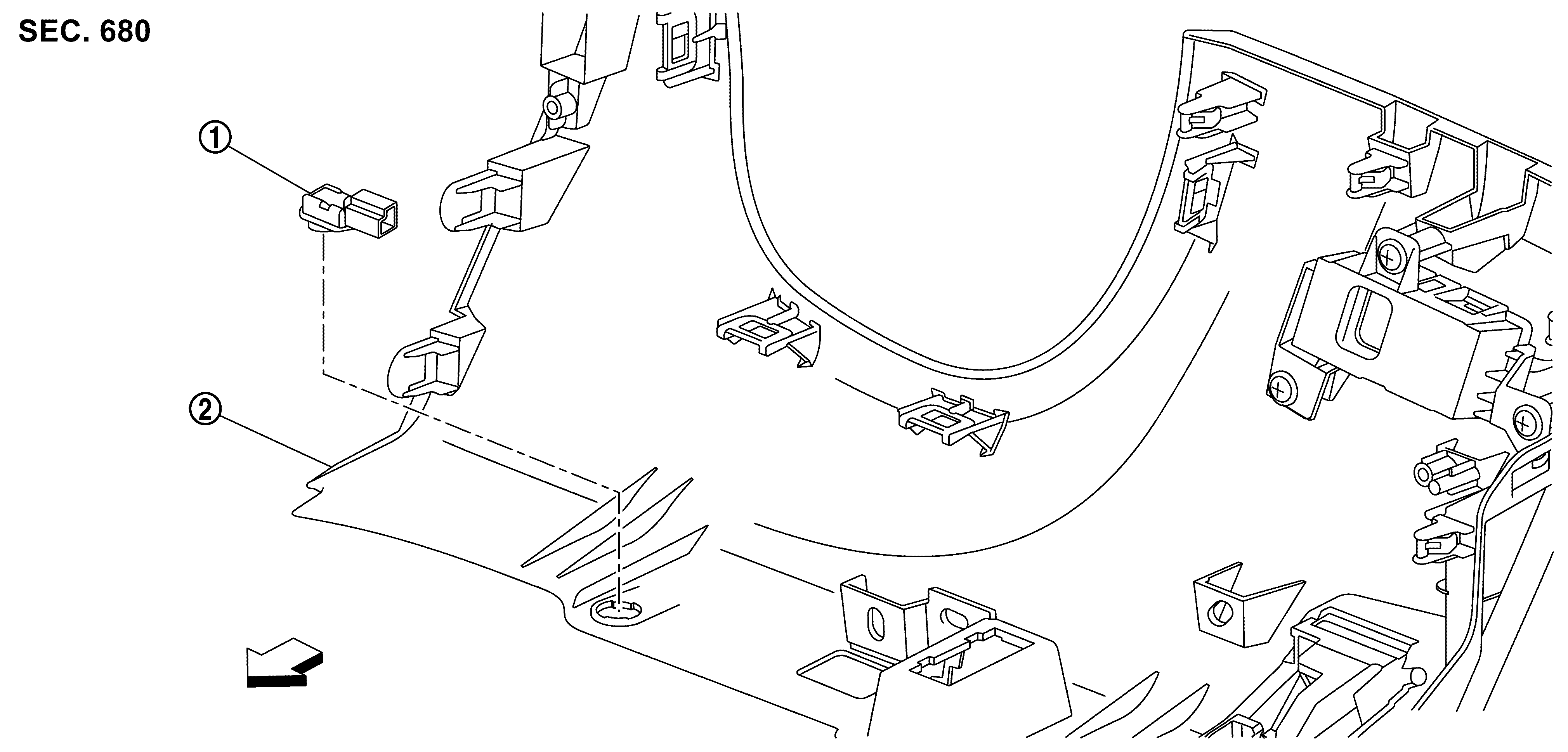

GNSJMLIA7590Z-590Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Foot lamp

SYMBOL

Instrument lower panel LH

SYMBOL

: Vehicle front
