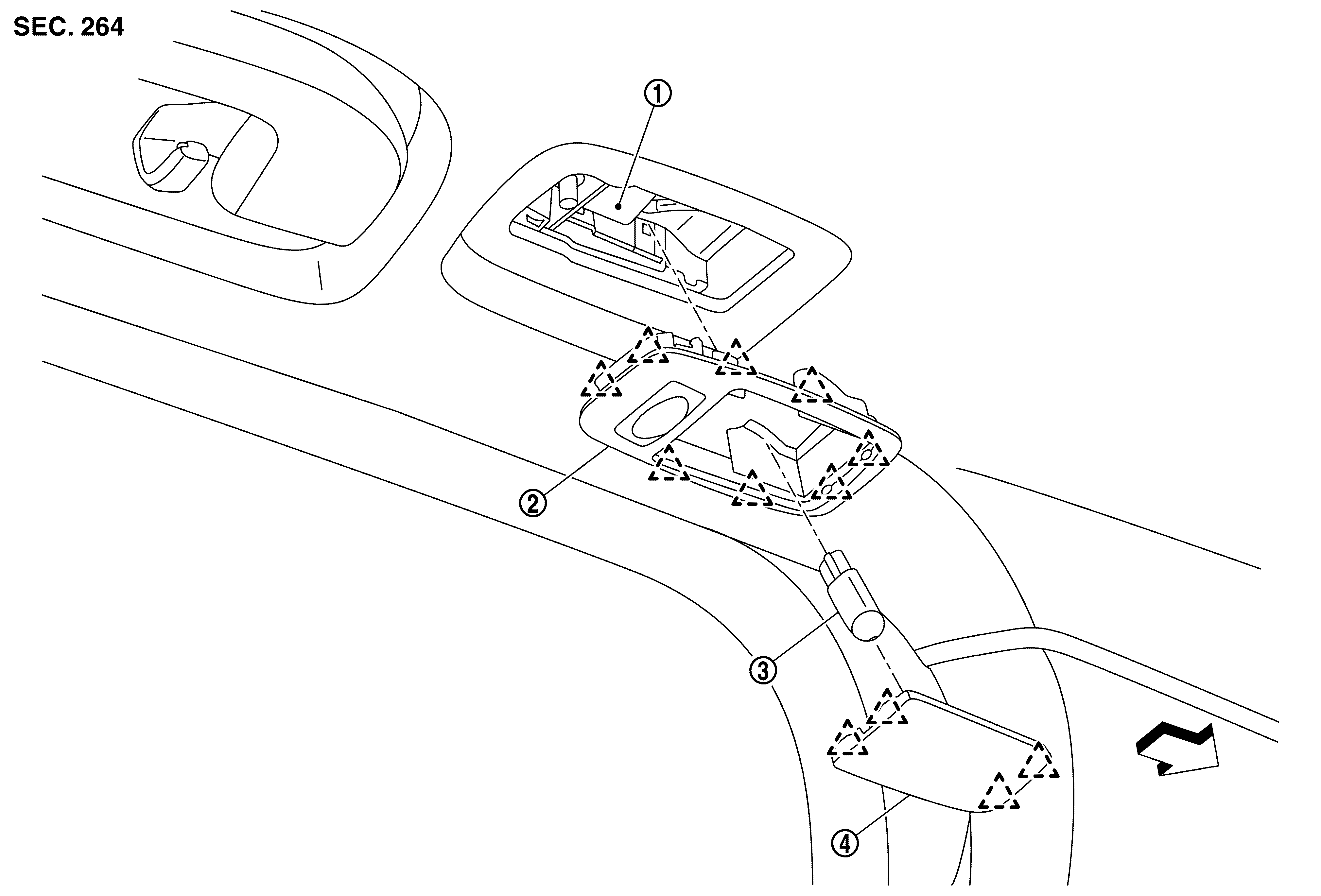

Exploded View

WARNING: This page is about a different car, the 2018 Infiniti Q60. However, it is still accessible from the selected car via links, so may be relevant.
GNSJMLIA4275Z-275Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Personal lamp base

SYMBOL

Personal lamp finisher

SYMBOL

Bulb

SYMBOL

Lens

SYMBOL

: Pawl

SYMBOL

: Vehicle front
