Section 2 (Transfer Case)
>>
System Description
>>
System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

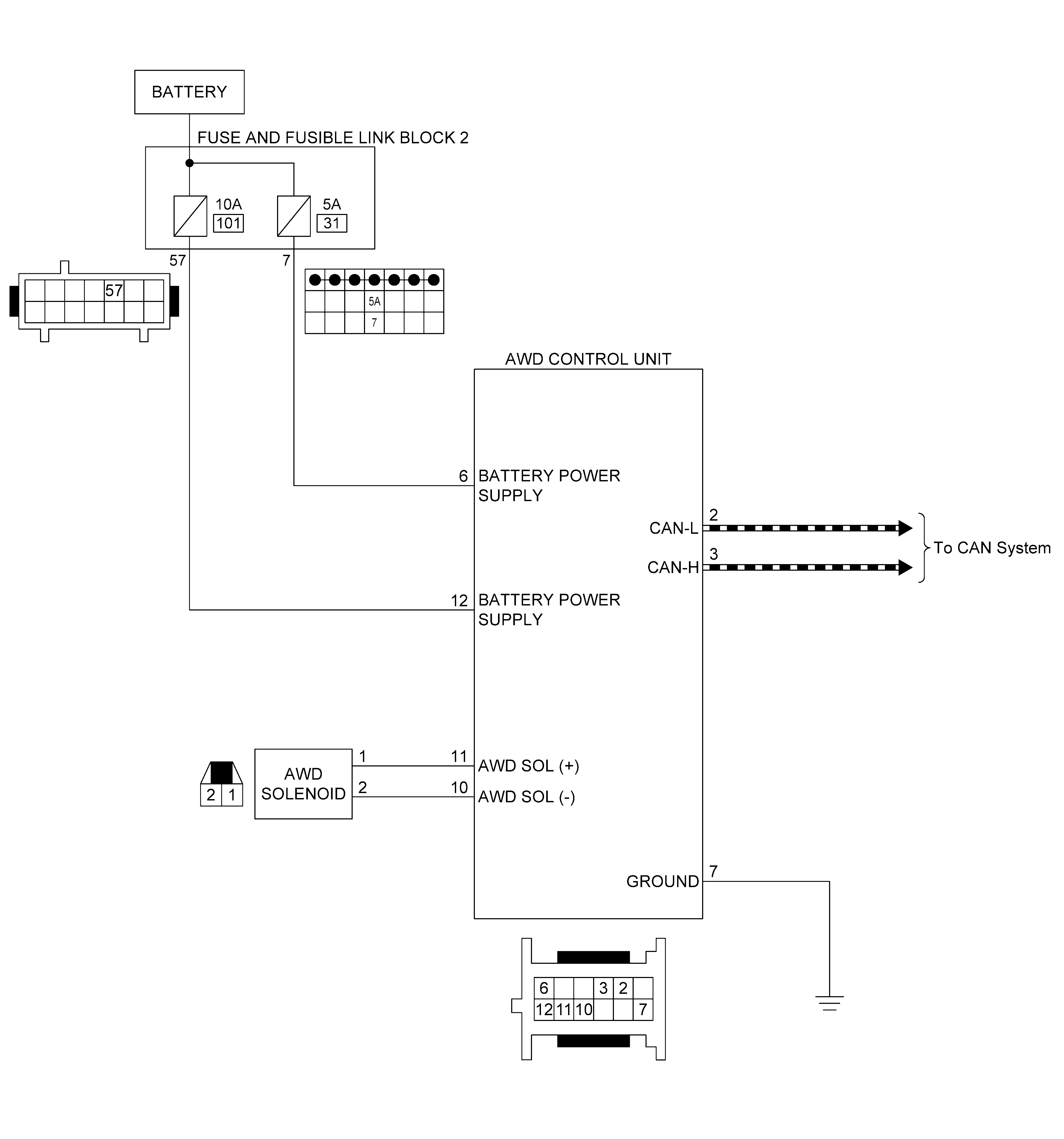

Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
