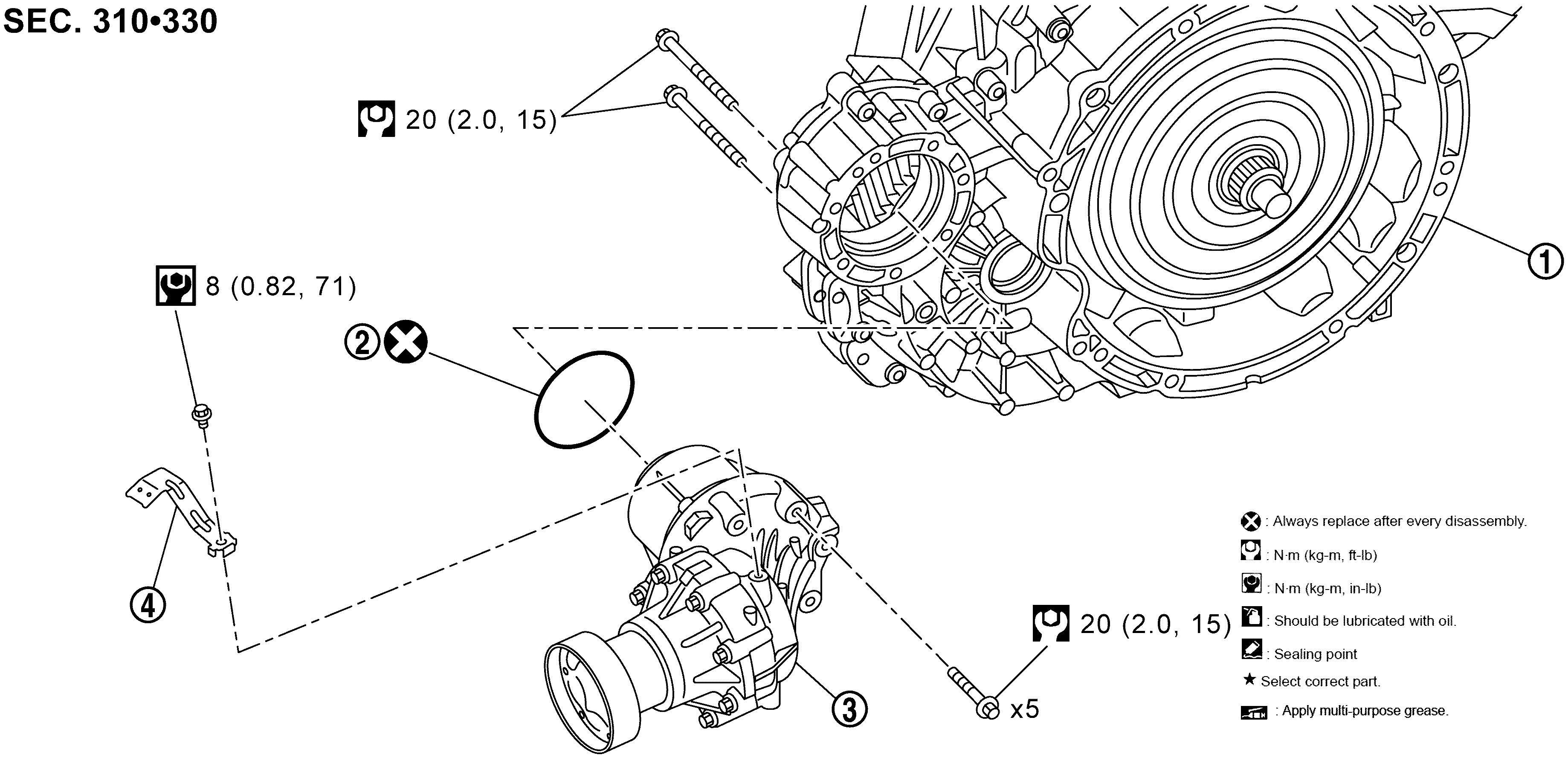

Exploded View
WARNING: This page is about a different variant/trim than selected.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Transaxle assembly
|
|
O-ring
|
|
Transfer assembly
|
|
|
Harness bracket*
|
|
: N.m (kg-m, in-lb)
|
|
: N.m (kg-m, ft-lb)
|
|
: Always replace after every disassembly.
|
|
*: Not applicable
|
