Home
>>
Infiniti
>>
2018
>>
QX60 AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Charging System
>>
Basic Inspection
>>
Diagnosis And Repair Work Flow
>>
Work Flow (With DSS-5000P NI)
>>
Overall Sequence
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

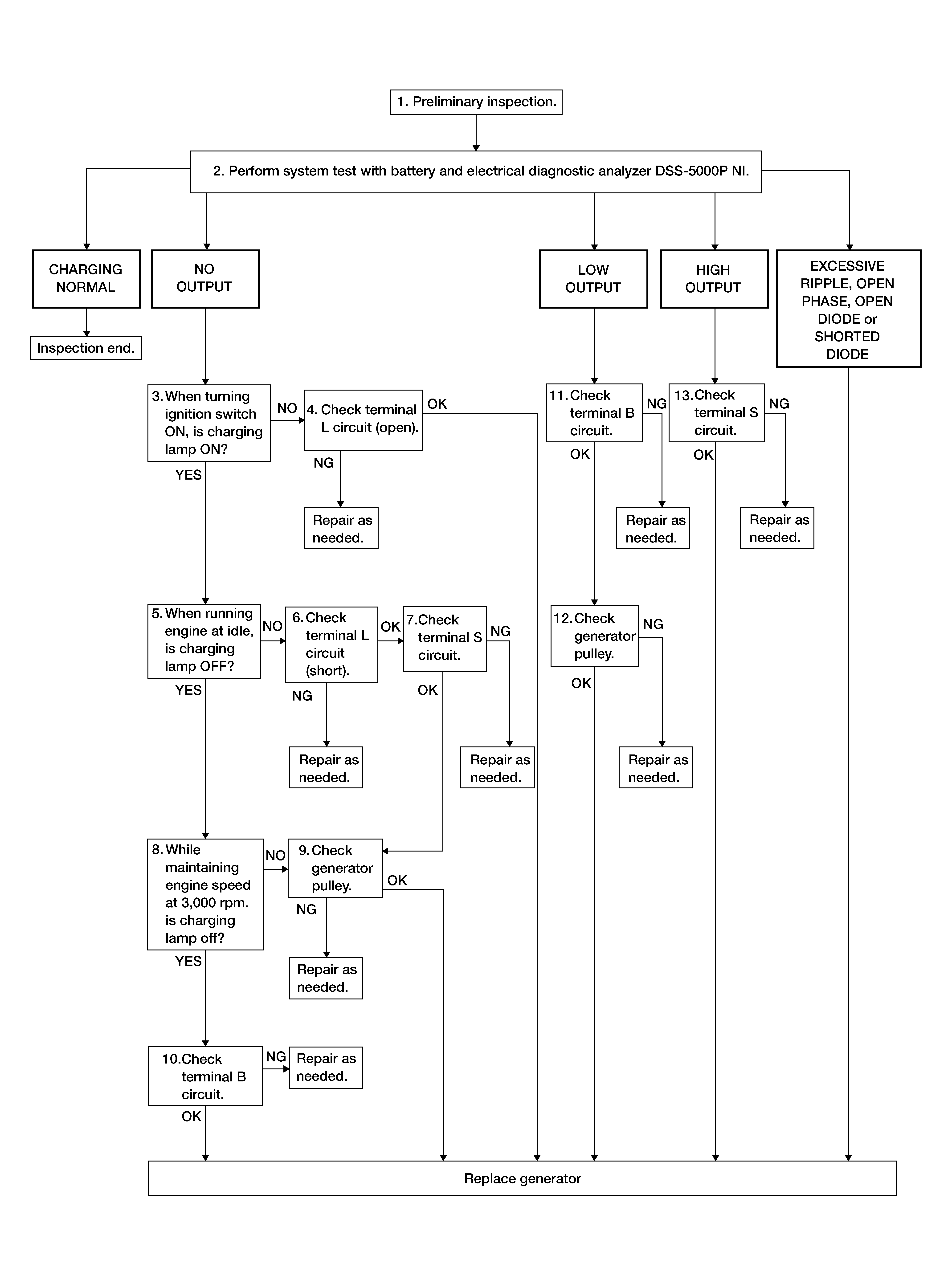

Overall Sequence
Courtesy of NISSAN NORTH AMERICA, INC.
