Exploded View

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

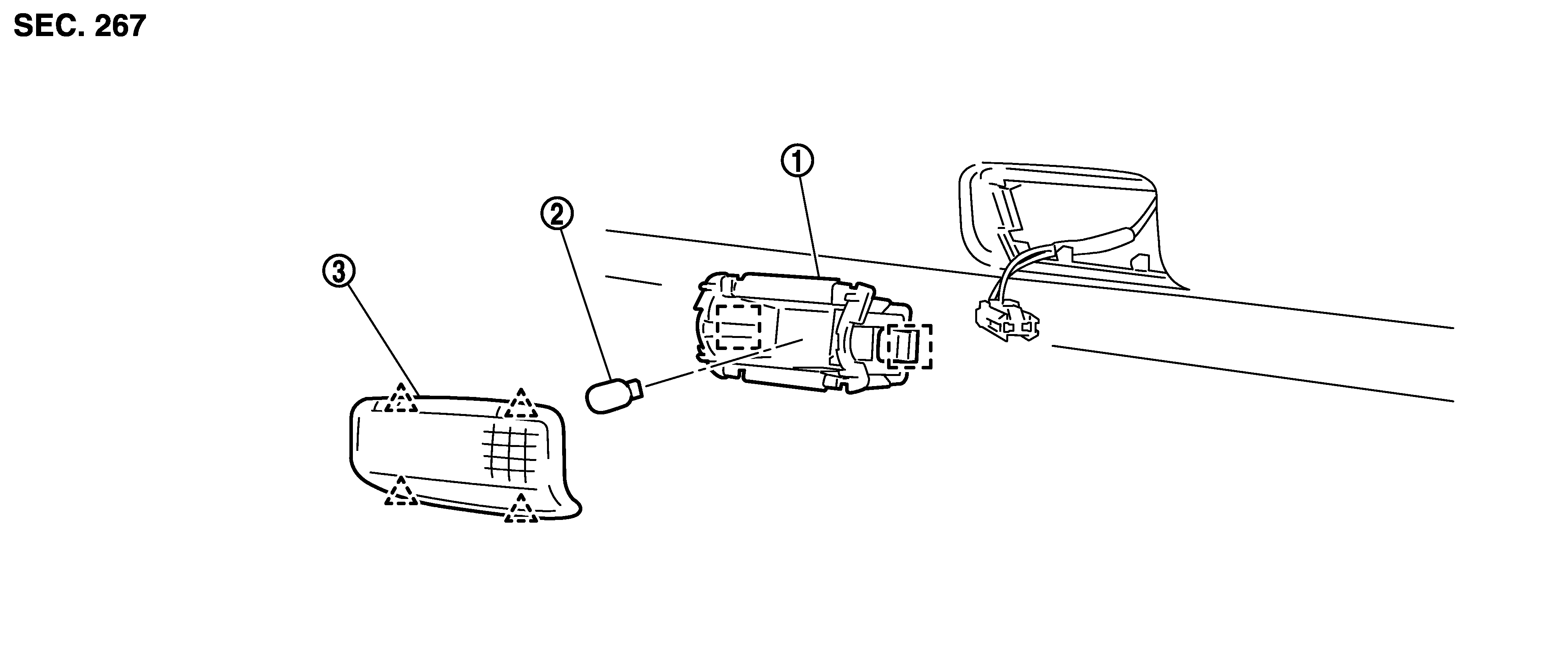

GNSJMLIA0541Z-541Courtesy of NISSAN NORTH AMERICA, INC.

1.

Step lamp case

2.

Bulb

3.

Lens

SYMBOL

: Pawl

SYMBOL

: Metal clip
