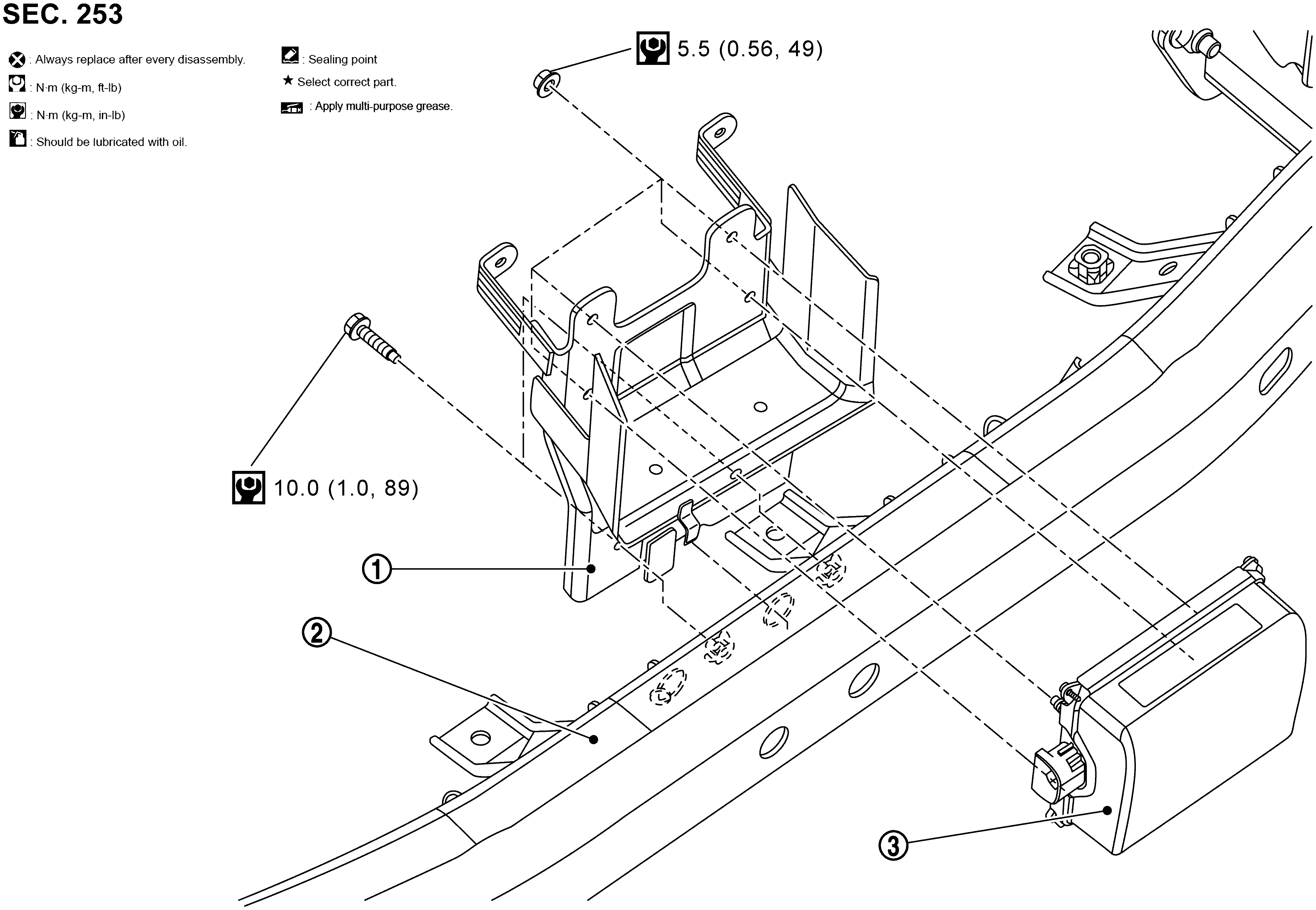

Exploded View
WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always perform the radar alignment and check the operation after the replacement, removal and installation of ICC sensor. Refer to Application Notice .
|
|
Bracket |
|
Front bumper reinforcement |
|
ICC sensor |
|
|
: N.m (kg-m, in-lb) |
||||
