Exploded View

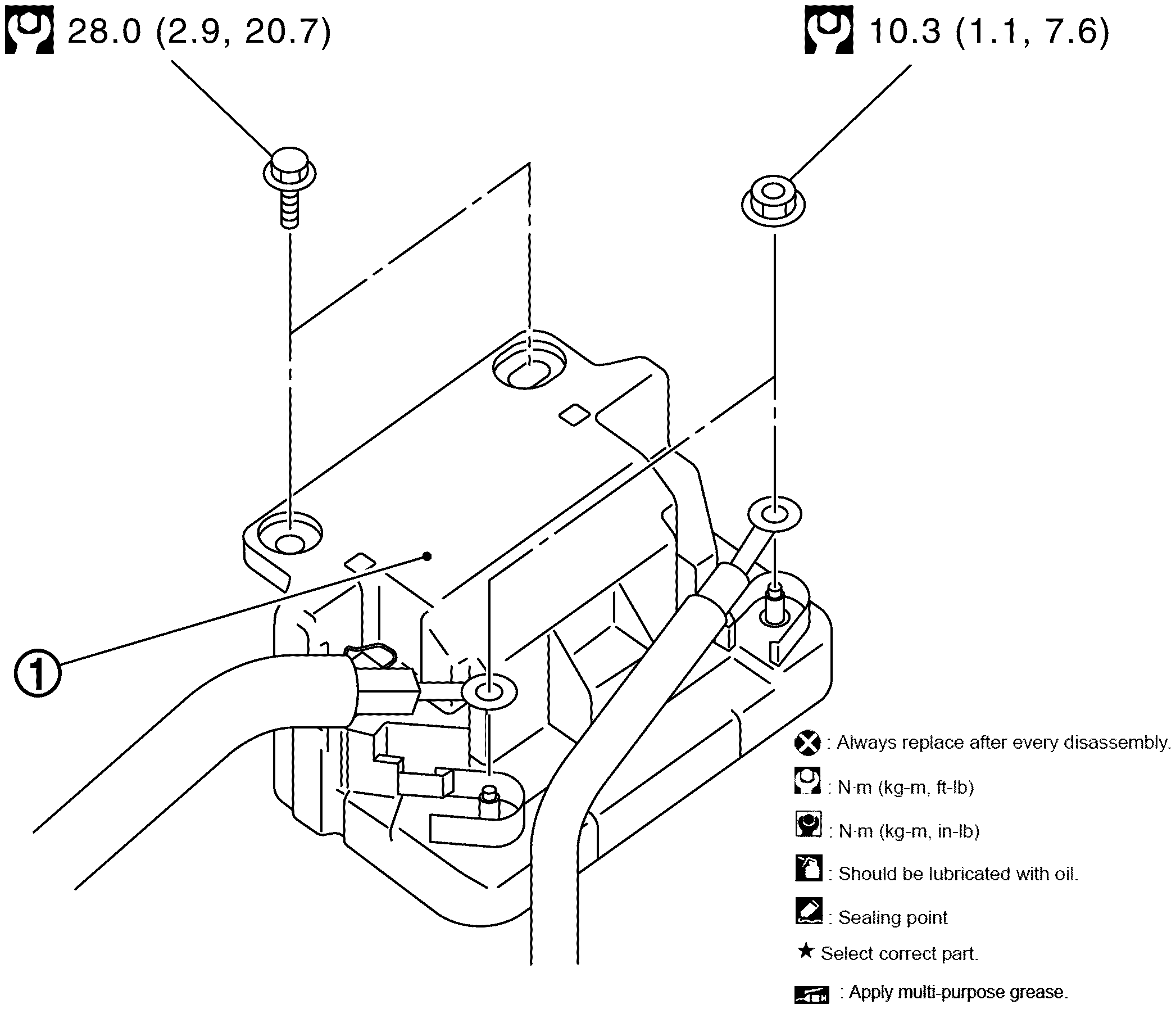

Fig 1: Sub Battery Relay Components With Torque Specification
GNSJSBIA3996GB-996Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Sub battery relay



SYMBOL

: N.m (kg-m, ft-lb)
