Pre-Crash Seat Belt System
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

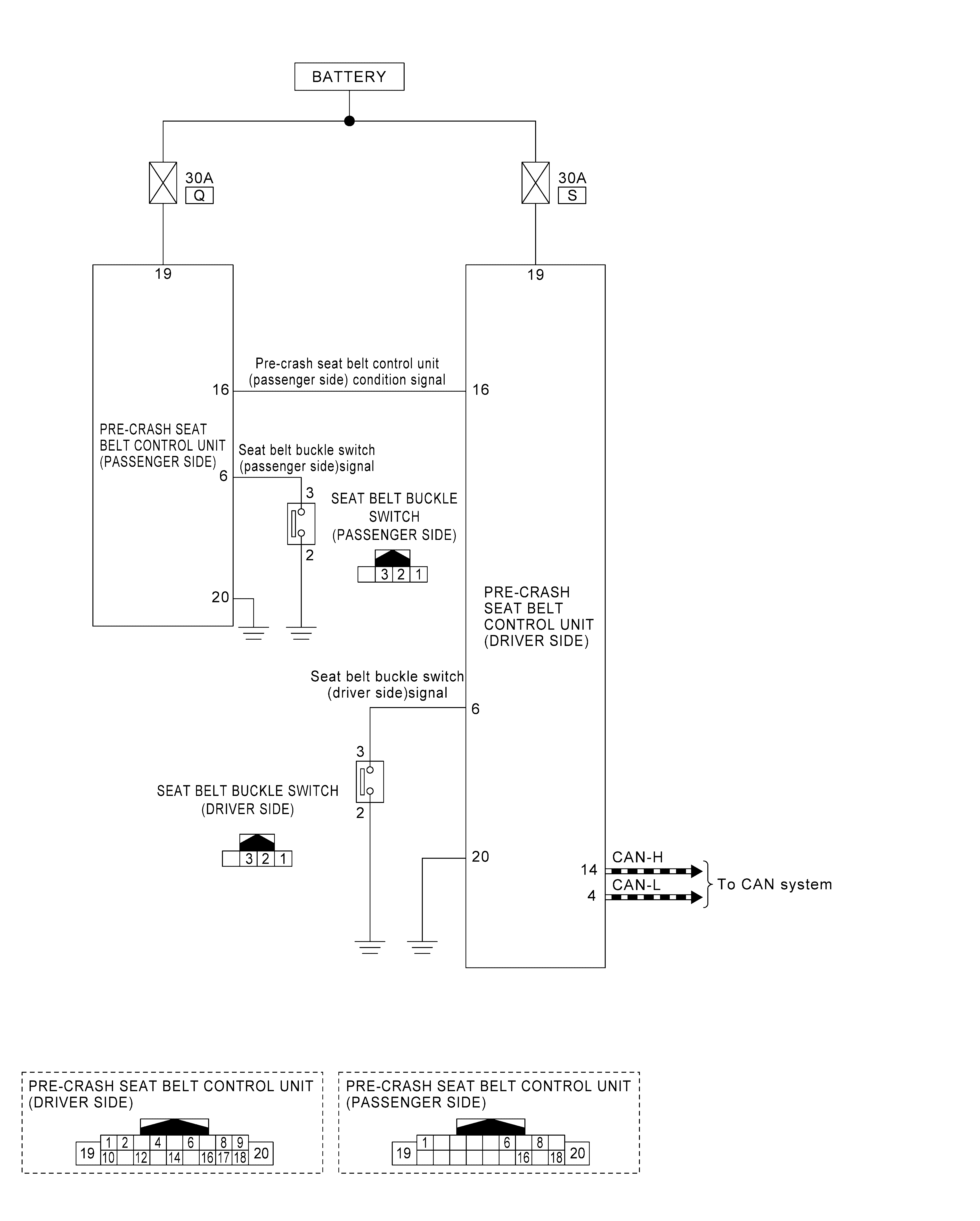

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
