Exploded View

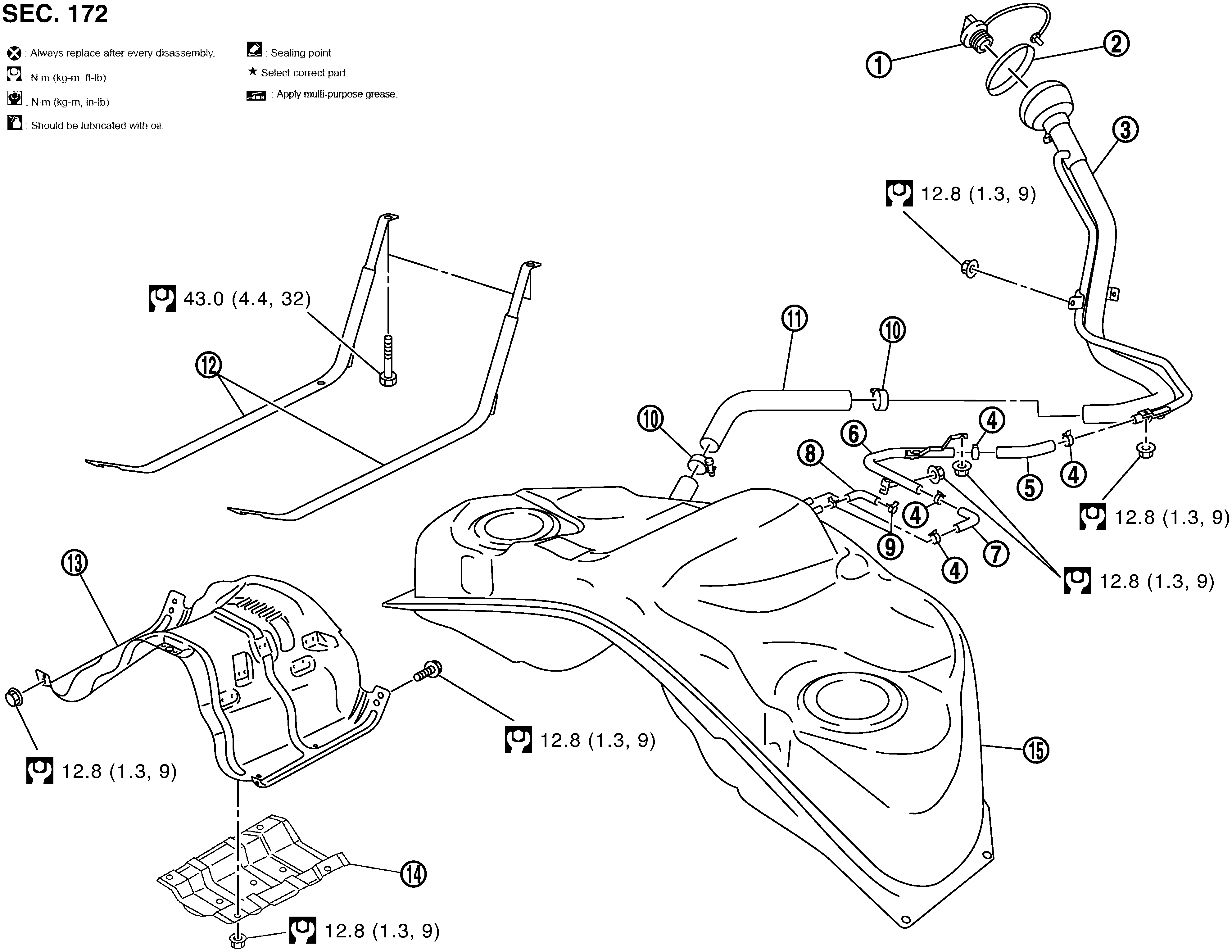

Fig 1: Fuel Tank Mexico With Torque Specifications

GNSJPBIA0508GB-508

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel filler cap	2.	Grommet	3.	Fuel filler tube
4.	Clamp	5.	Vent hose	6.	Vent tube
7.	Vent hose	8.	EVAP hose	9.	Clamp
10.	Clamp	11.	Fuel filler hose	12.	Fuel tank mounting band
13.	Fuel tank protector	14.	Insulator	15.	Fuel tank
	: N.m (kg-m, ft-lb)

Fig 2: Fuel Tank Except Mexico With Torque Specifications

GNSJPBIA0155GB-155

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel filler cap	2.	Grommet	3.	Fuel filler tube
4.	Clamp	5.	Vent hose	6.	Vent tube
7.	EVAP hose	8.	EVAP hose	9.	Clamp
10.	Clamp	11.	Fuel filler hose	12.	Fuel tank mounting band
13.	Fuel tank protector	14.	Insulator	15.	Fuel tank
	: N.m (kg-m, ft-lb)
