Exploded View

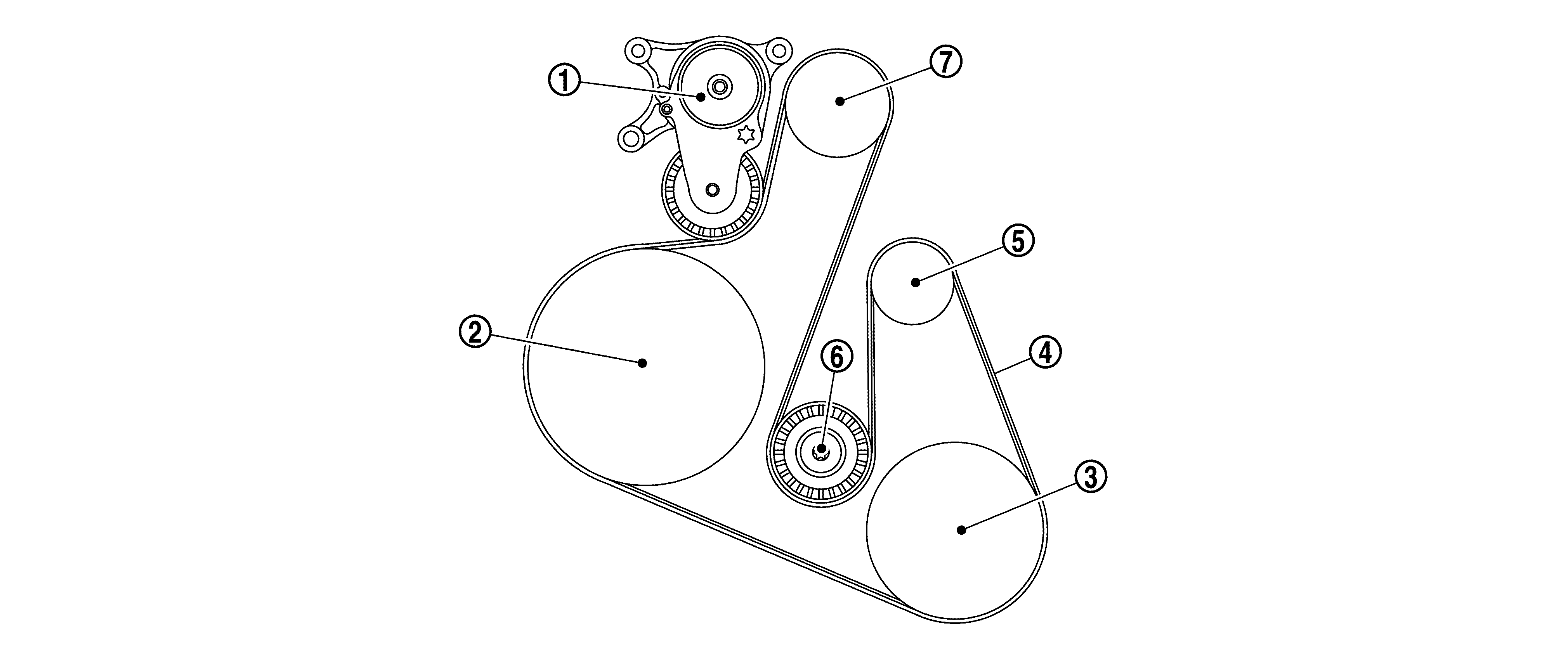

Fig 1: Drive Belt Routing
GNSJSBIA8188Z-188Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Drive belt auto-tensioner

SYMBOL

Crankshaft pulley

SYMBOL

A/C compressor

SYMBOL

Drive belt

SYMBOL

Alternator

SYMBOL

Idler pulley

SYMBOL

Water pump
