Exploded View

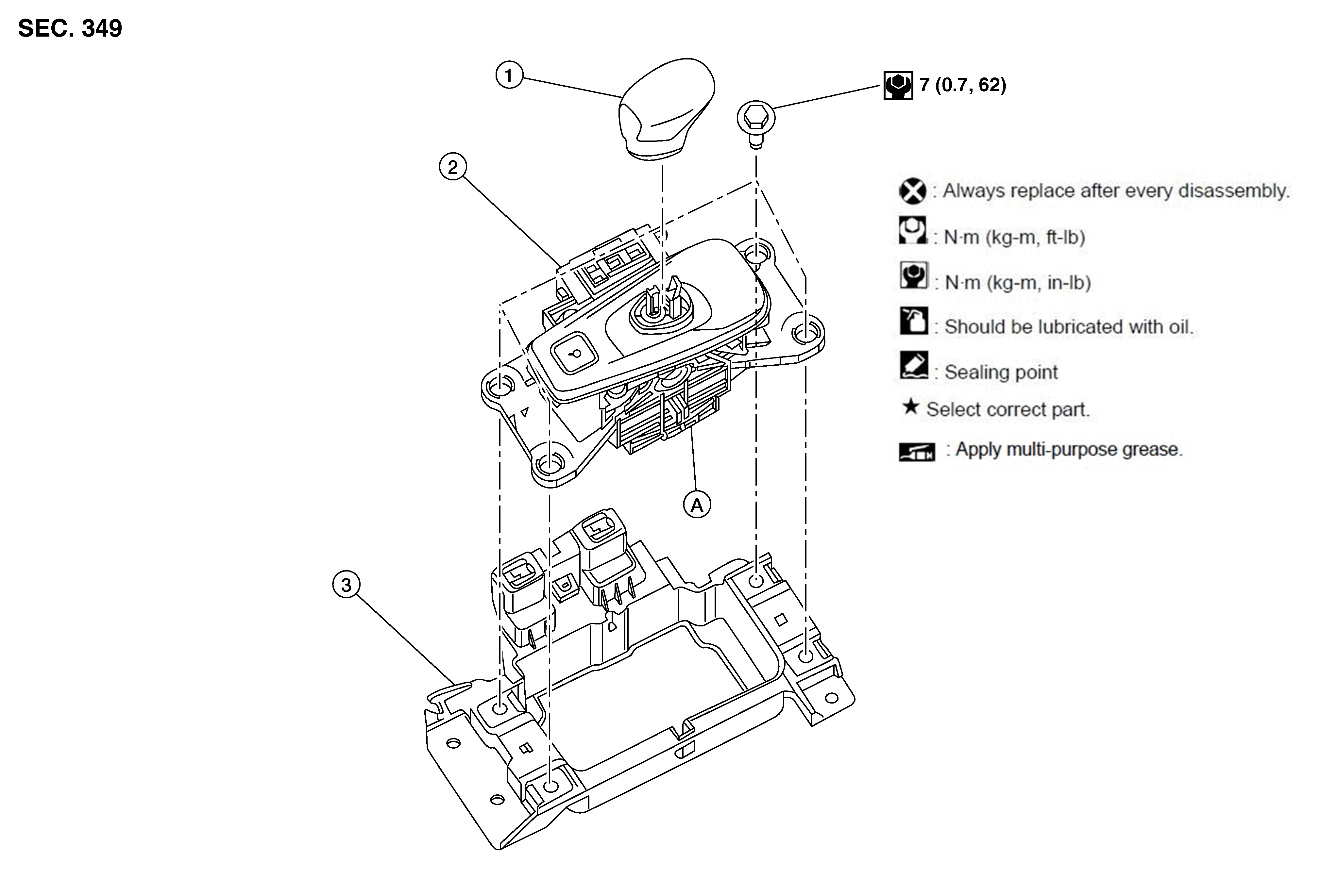

Fig 1: Electric Shift Selector With Torque Specifications
GNSALDIA0074Z-074Courtesy of NISSAN NORTH AMERICA, INC.

1.

Electric shift selector handle

2.

Electric shift selector assembly

3.

Electric shift selector bracket

A.

Locating pin
