Exploded View

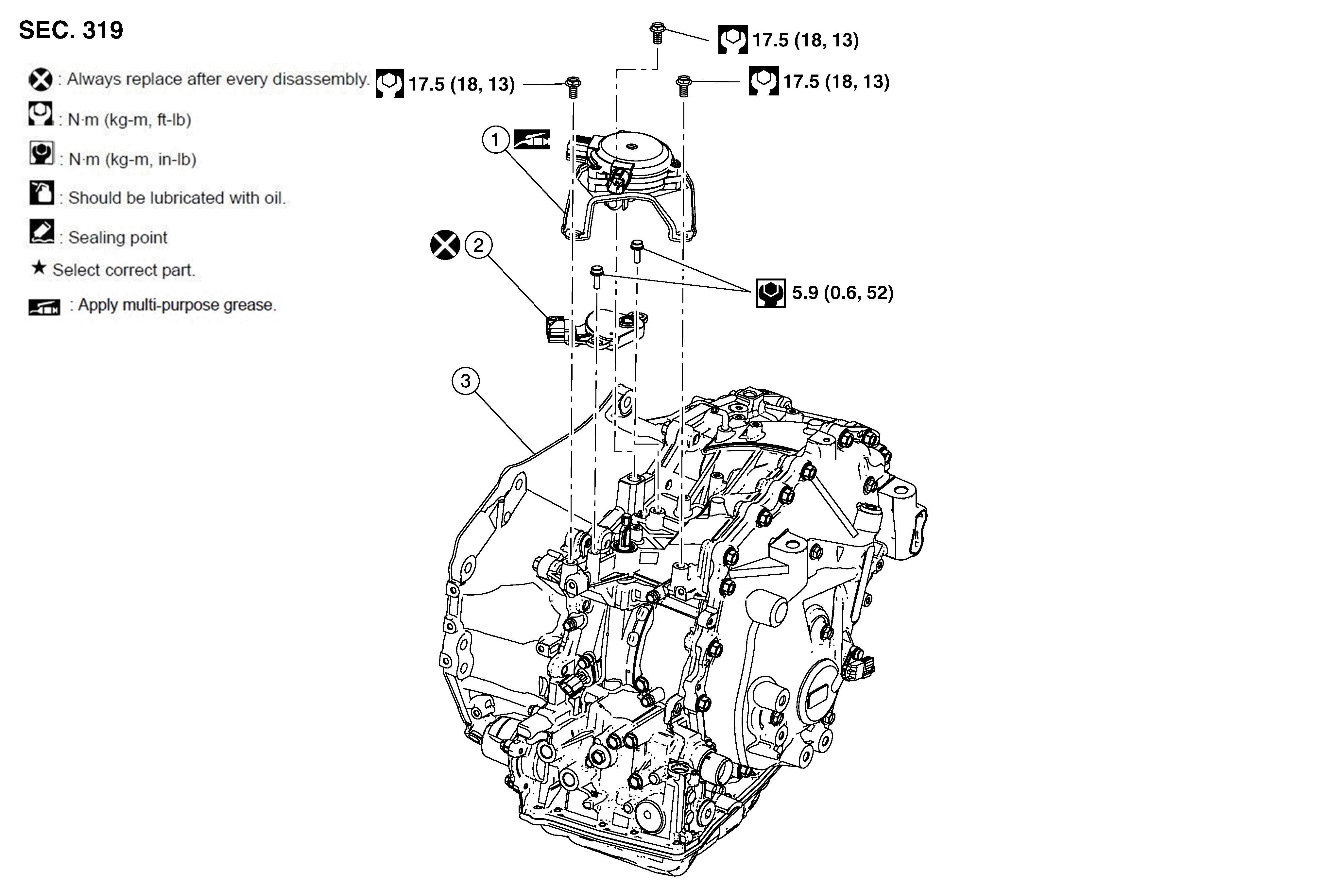

Fig 1: Transmission Range Switch With Torque Specifications
GNSAWDIA0089Z-089Courtesy of NISSAN NORTH AMERICA, INC.

1.

Shift actuator

2.

Transmission range switch

3.

Transaxle assembly
