Exploded View

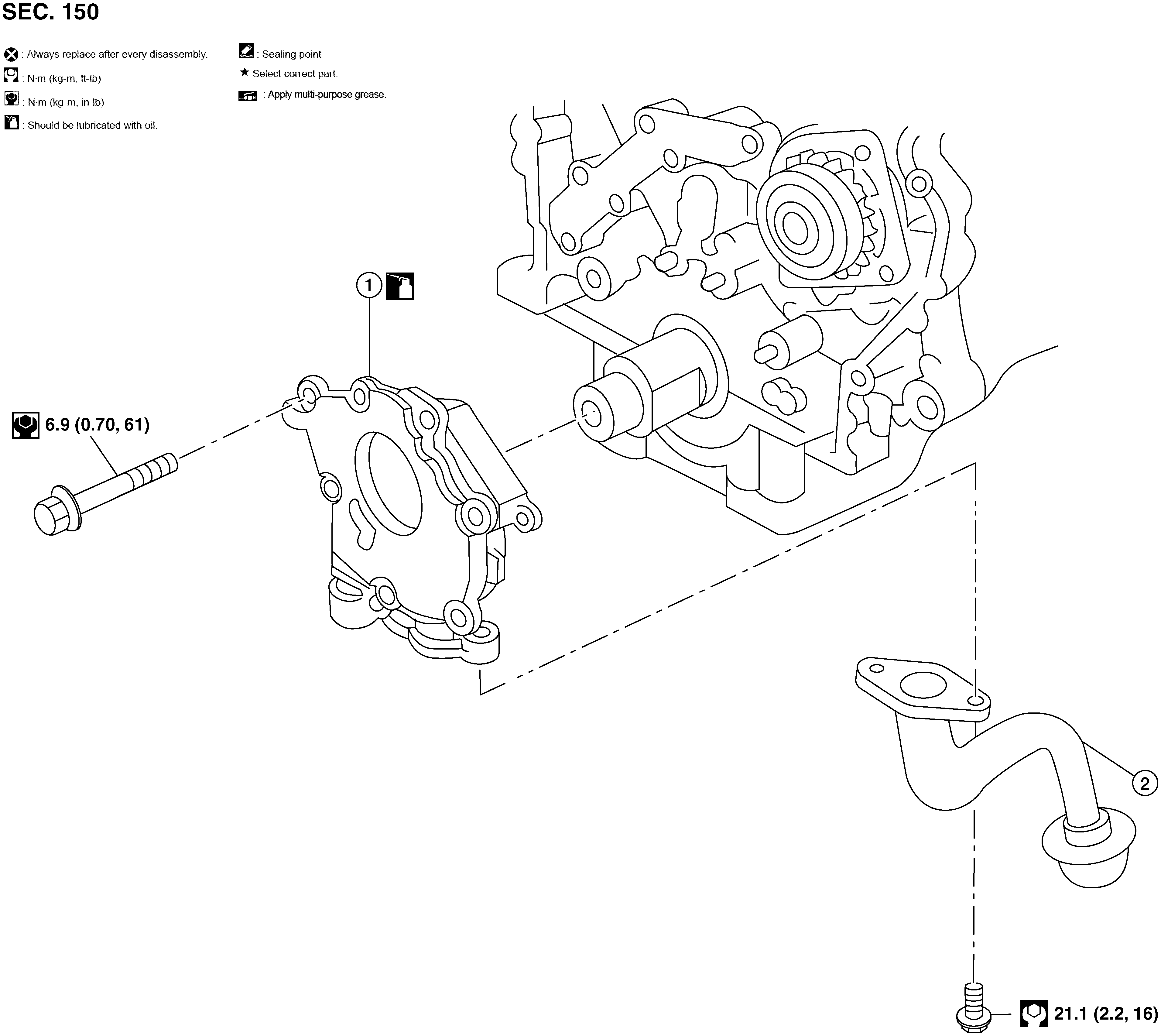

Fig 1: Oil Pump Components With Torque Specification Mexico
GNSAWBIA0044Z-044Courtesy of NISSAN NORTH AMERICA, INC.

1.

Oil pump

2.

Oil strainer
