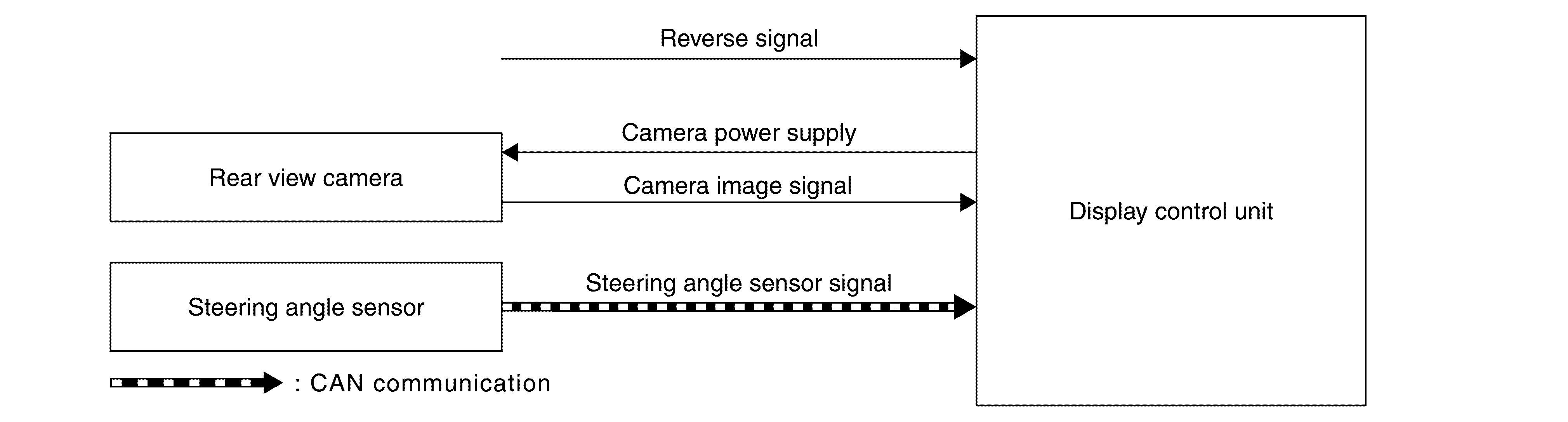

System Diagram

WARNING: This page is about a different car, the 2019 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.
G09161741Courtesy of NISSAN NORTH AMERICA, INC.

Display Control Unit Input Signal (CAN Communication)

Transmit unit

Signal name

Steering angle sensor

Steering angle signal
