Exploded View

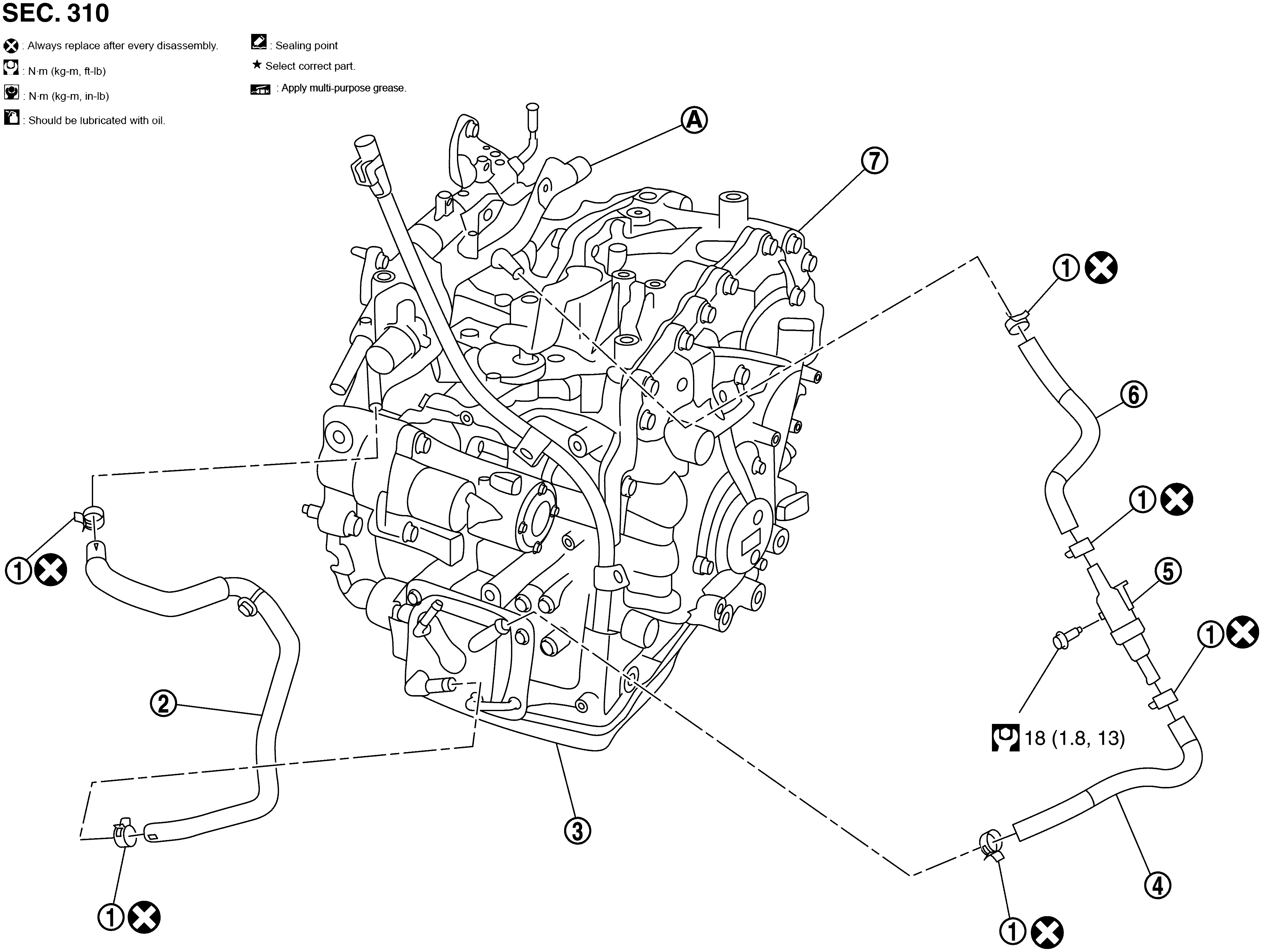

Fig 1: Water Hose With Torque Specifications
GNSJSDIA3630GB-630Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Hose clamp

SYMBOL

CVT water hose A

SYMBOL

Transaxle assembly

SYMBOL

CVT water hose B

SYMBOL

Heater thermostat

SYMBOL

CVT water hose C

SYMBOL

Transaxle assembly

SYMBOL

Water outlet

SYMBOL

: Always replace after every disassembly.

SYMBOL

: N.m (kg-m, ft-lb)
