DTC Detection Logic

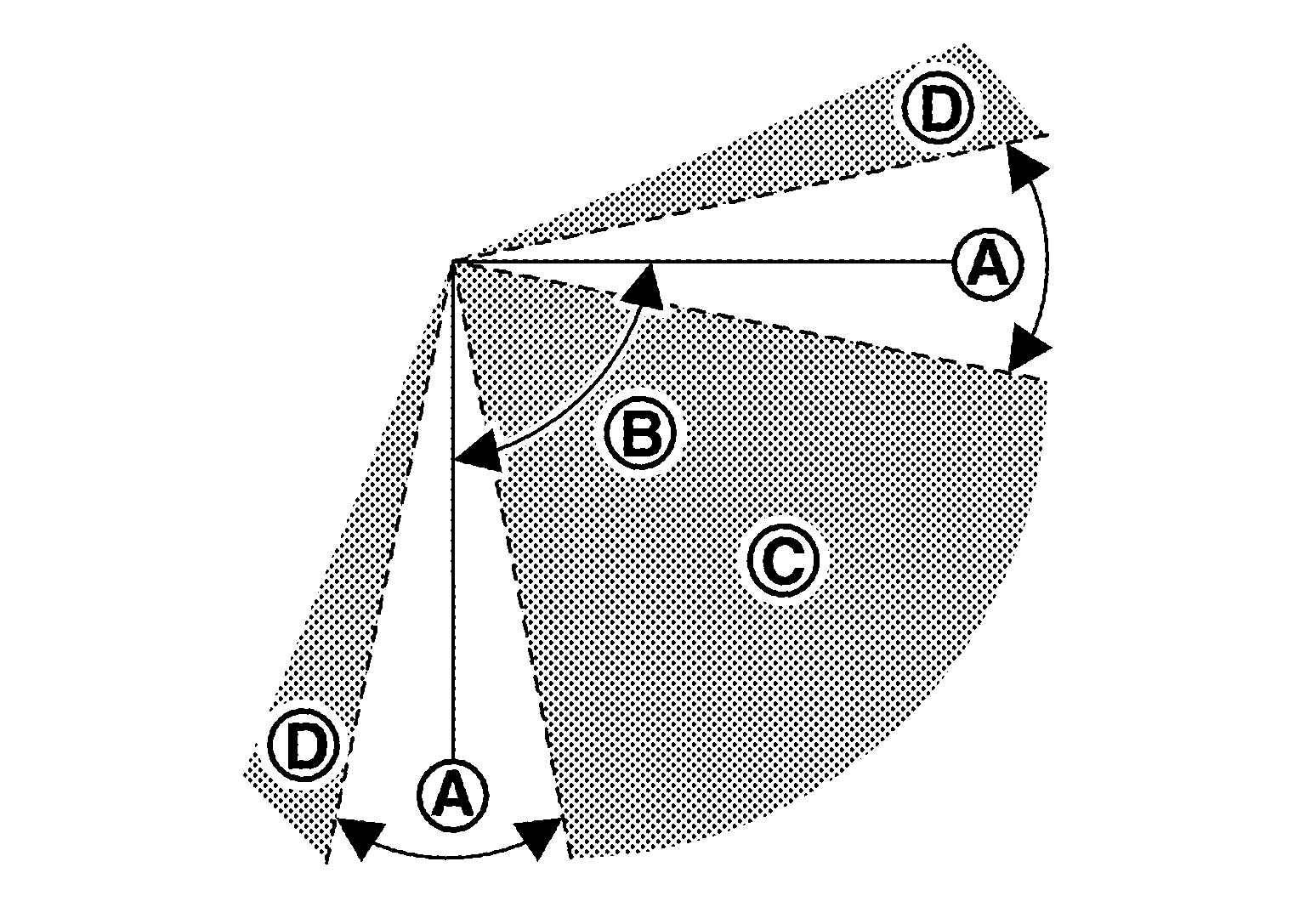

Active grille shutter normally stops within zone
which is defined by zone
(90 deg.+/-20 deg.).
If the active grille shutter stops within zone
stuck error is detected, and if the active grille shutter stops at position beyond zone
overrun error is detected.
|
DTC |
CONSULT screen terms (Trouble diagnosis content) |
DTC detection condition |
|
|
P059F |
ACTIVE GRILLE AIR SHUTTER A (Active grille air shutter A performance/stuck off) |
Diagnosis condition |
-- |
|
Signal (terminal) |
-- |
||
|
Threshold |
Detects the malfunction of initial position learning or operational malfunctions for specified times |
||
|
Diagnosis delay time |
-- |
||
