Required Tools

• Radar Sensor Aiming Kit 1-20-2851-1 Kit includes the following:

a) Target Board (Fixture)

b) Laser assembly

c) Rear Stand

Use kit 1-20-2851-1 with a self-centering wheel adapter (e.g. 1-20-2722-1-IF, Hunter 20-3339-1 or equivalent).

The following tools are necessary to perform distance sensor alignment:

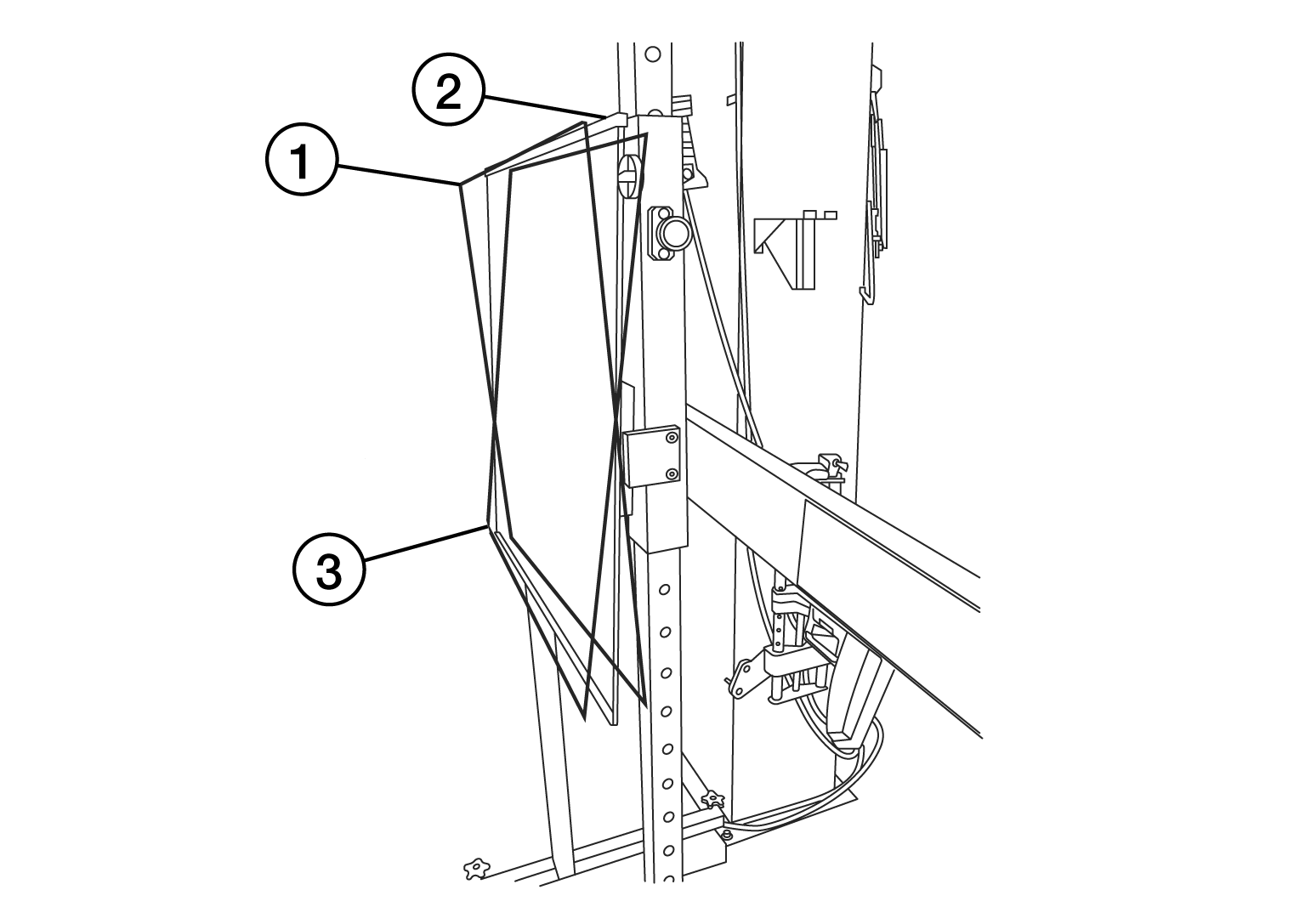

• Target board

  Courtesy of NISSAN NORTH AMERICA, INC.

  1. : Position 1, with top tilted 2 deg. toward vehicle (not used).
  2. : Position 2, vertical.
  3. : Position 3, with top tilted 2 deg. away from vehicle (not used).

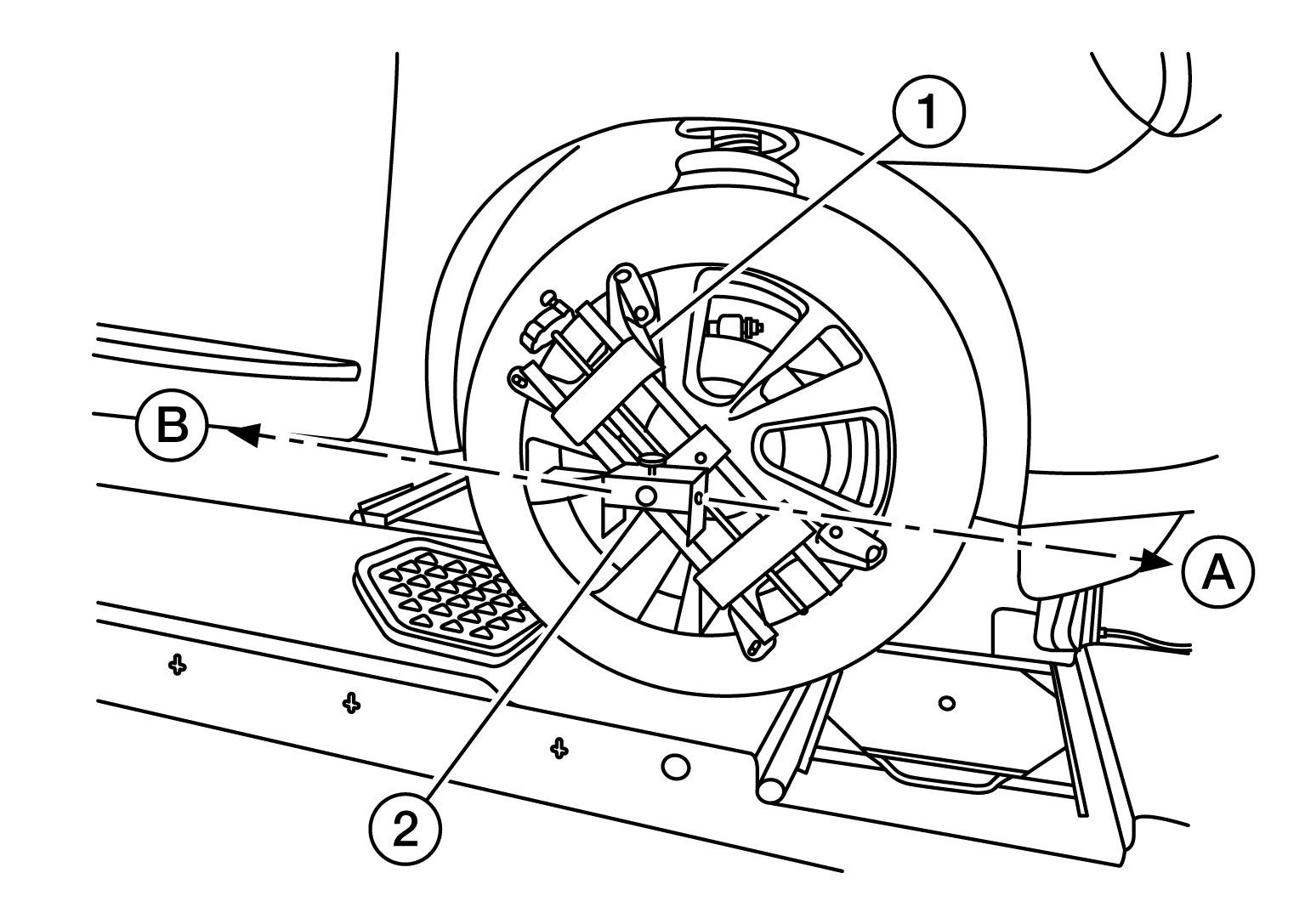

• Hunter self-centering wheel adapter [shown with laser assembly installed] (Hunter alignment rack head may be substituted.)

  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:

  • Directional arrows and are shown to illustrate the direction of the laser assembly beams.

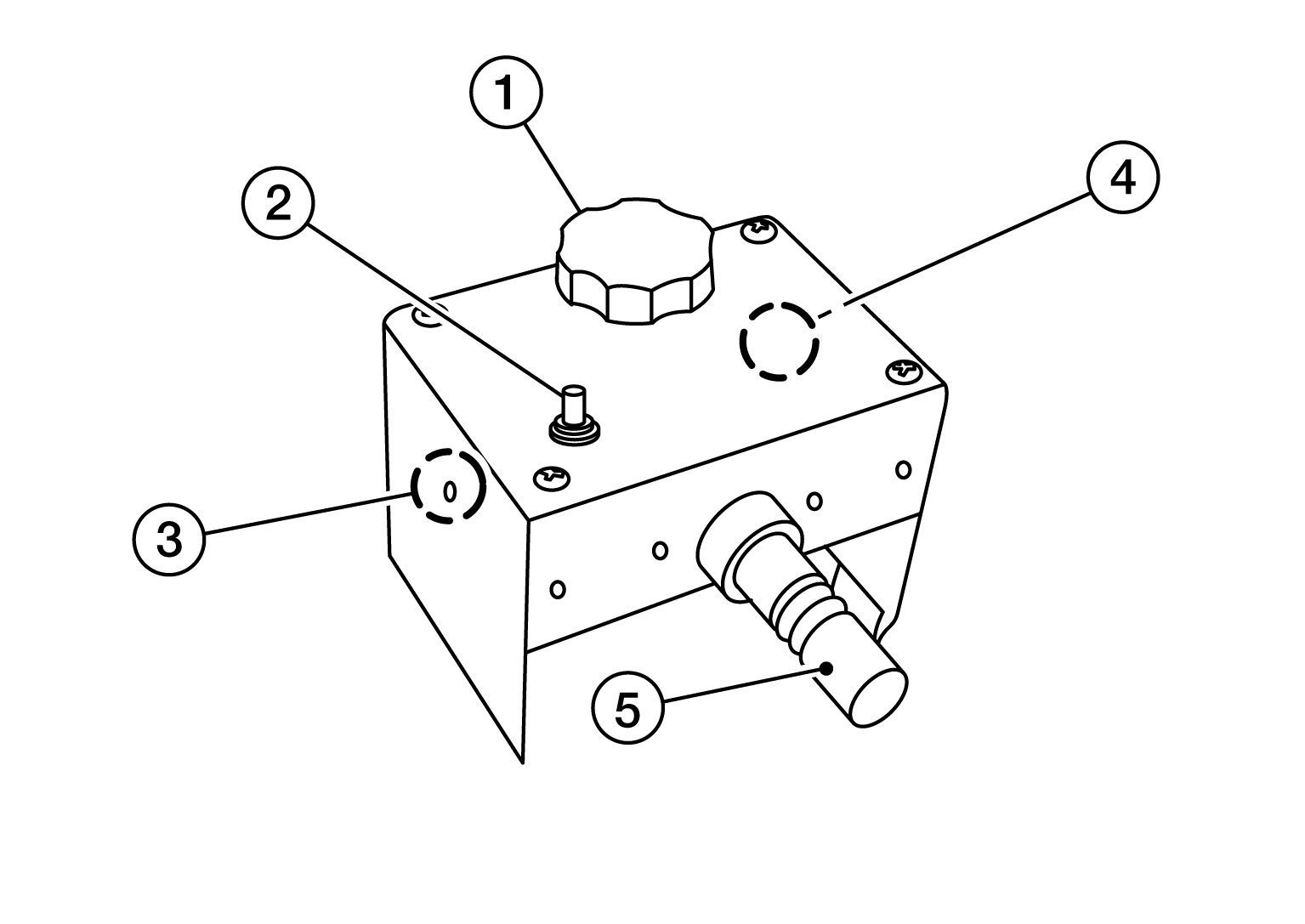

• Laser assembly (with bi-directional laser beam) as shown in the illustration, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  1. Tightening knob
  2. Power ON/OFF button
  3. Front laser beam opening
  4. Rear laser beam opening
  5. Attaching shaft

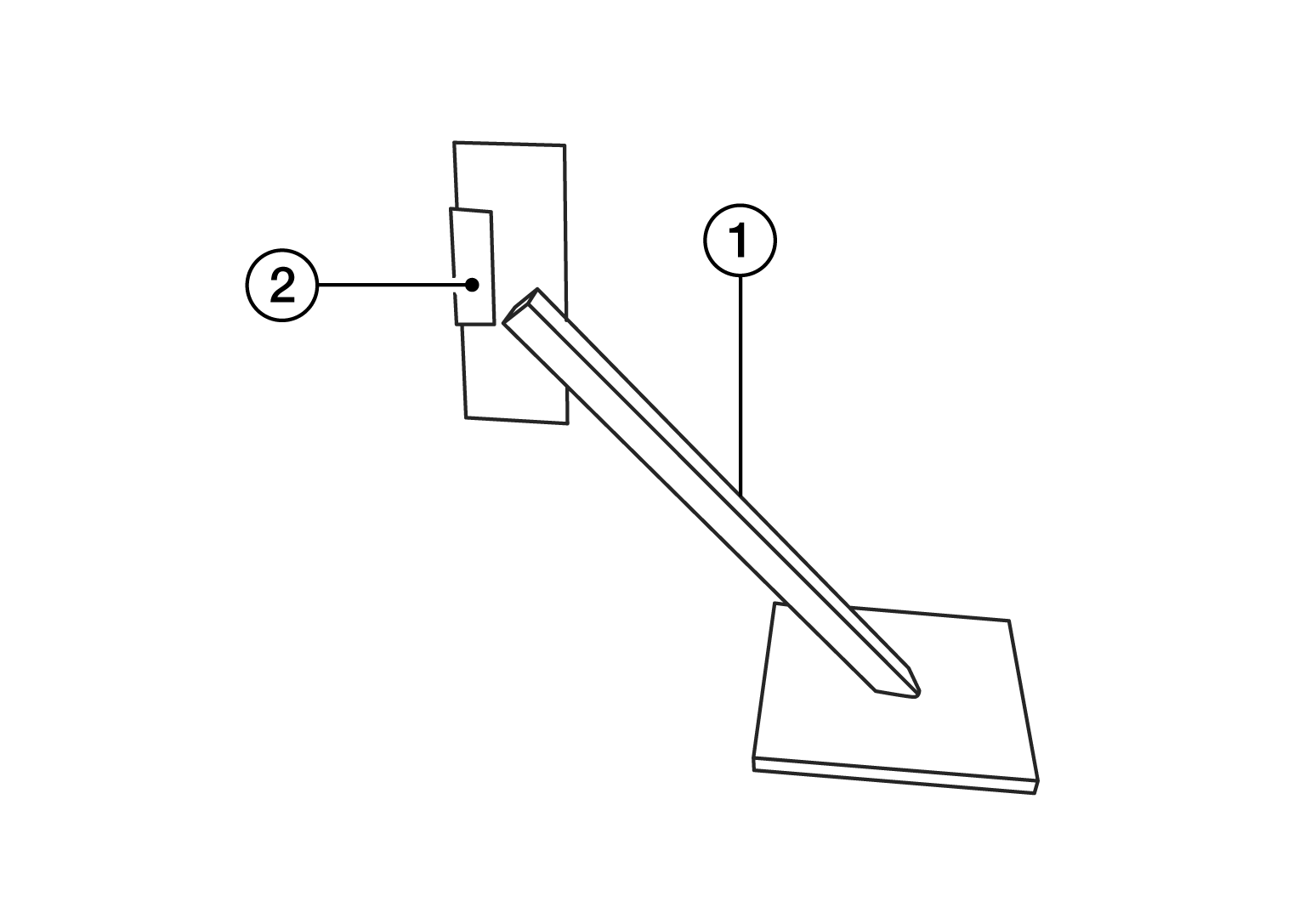

• Rear stand as shown in the illustration, below.

  Courtesy of NISSAN NORTH AMERICA, INC.

  1. Rear stand
  2. Laser signal reception plate
