Consult Checking System: Description

CAUTION: After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must be cycled OFF ->ON (for at least 5 seconds) ->OFF. If this step is not performed, the BCM may not go to "sleep mode", potentially causing a discharged battery and a no-start condition.

NOTE: This vehicle is diagnosed using the CONSULT-III plus.

When CONSULT is connected with a data link connector equipped on the vehicle side, it will communicate with the control unit equipped in the vehicle and then enable various kinds of diagnostic tests.

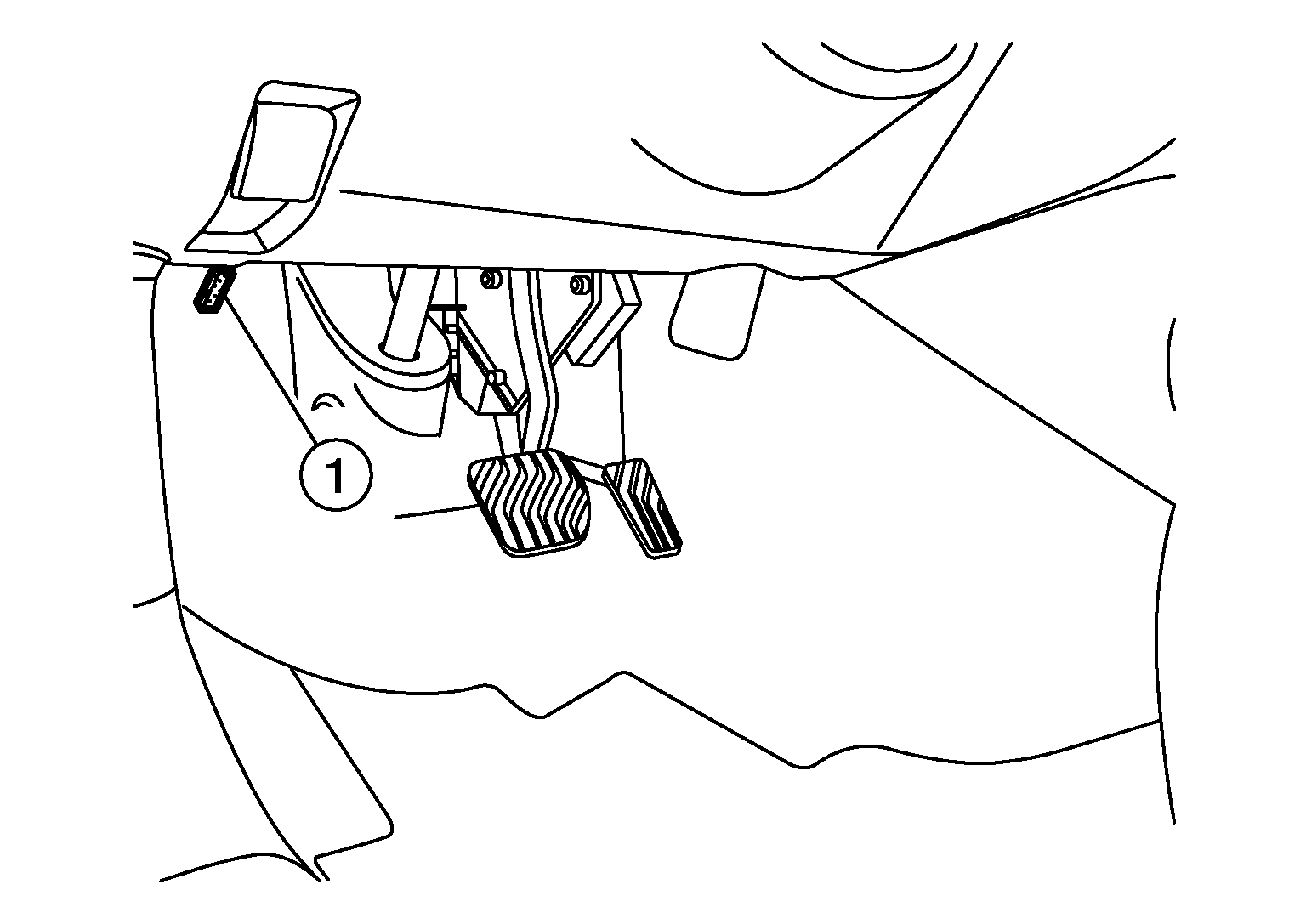

Courtesy of NISSAN NORTH AMERICA, INC.

1

: Data link connector
Refer to "CONSULT-III plus Operation Manual" for more information.
