Exploded View

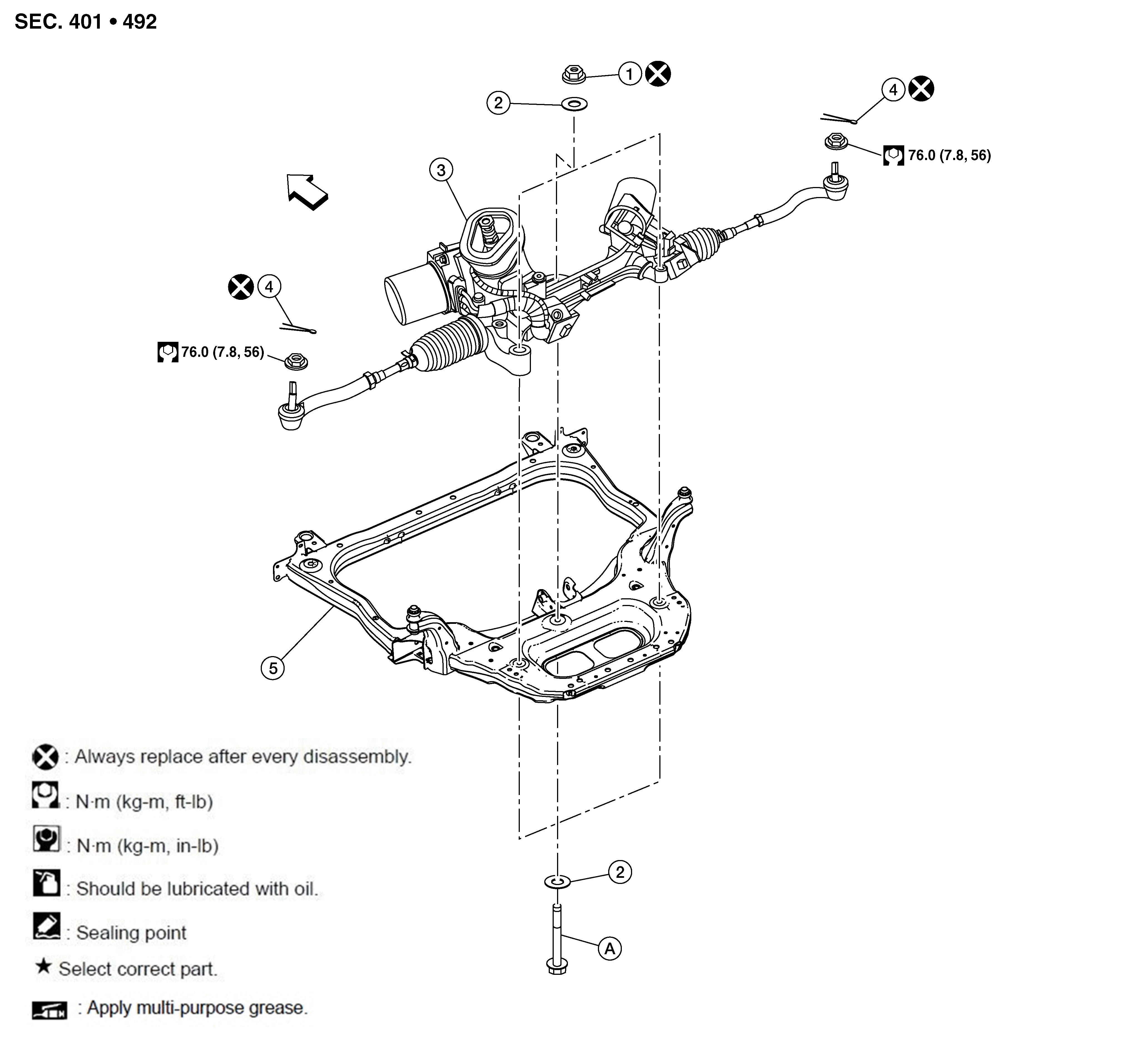

Fig 1: Steering Gear And Linkage Unit With Torque Specifications - Direct Adaptive Steering
GNSAWGIA0054Z-054Courtesy of NISSAN NORTH AMERICA, INC.

1.

Nut

2.

Washer

3.

Steering gear

4.

Cotter pin

5.

Front suspension member

A.

Refer to Removal and Installation .

SYMBOL

Front
