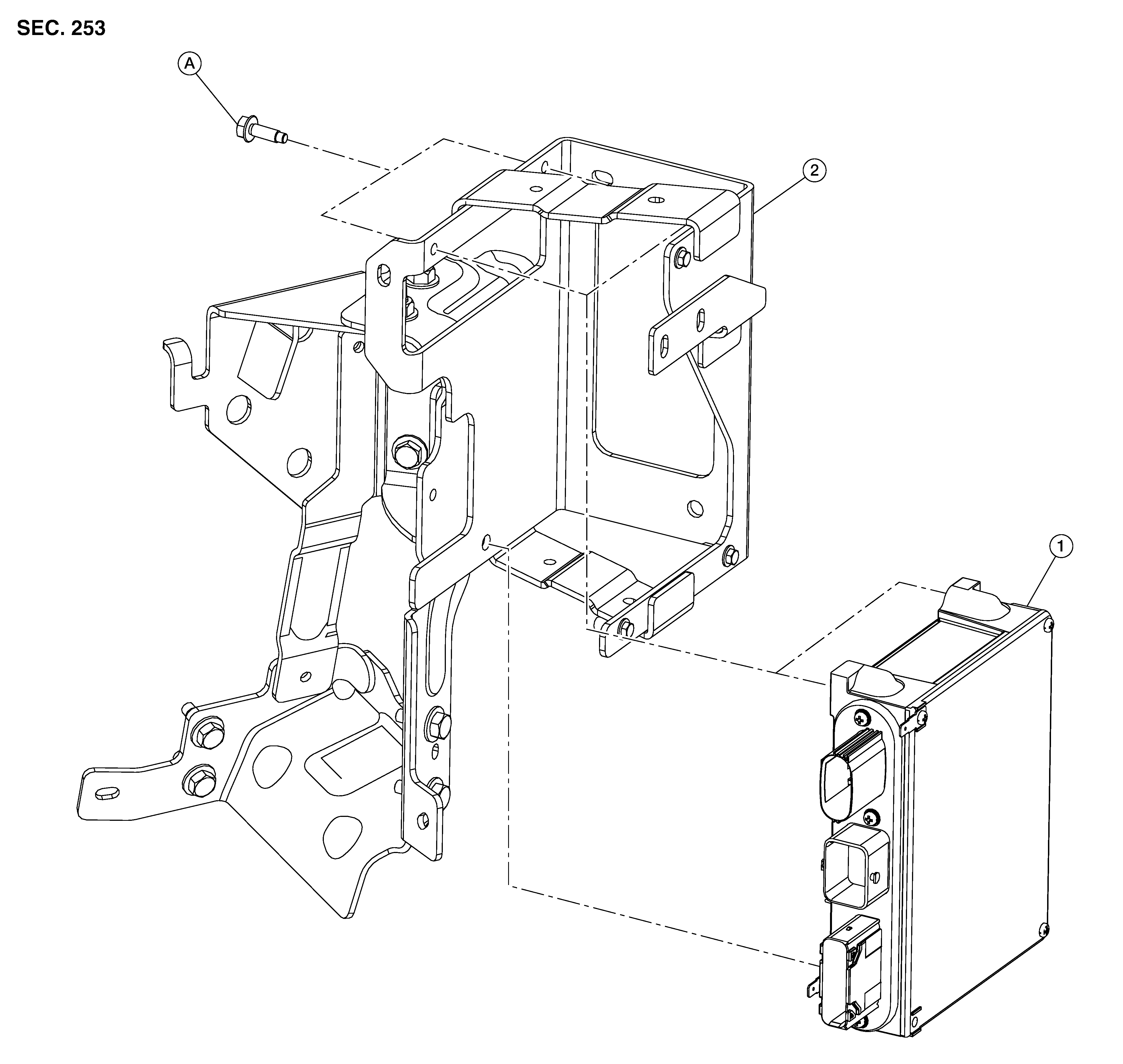

Exploded View

GNSAWGIA0051Z-051Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering angle sub control module

2.

Bracket

A.

Refer to Removal and Installation .
