Removal and Installation: Removal

  1. Disconnect the negative battery terminal.
  2. Remove instrument lower panel (LH). Refer to Removal and Installation .
  3. Disconnect the harness connectors from the BCM.

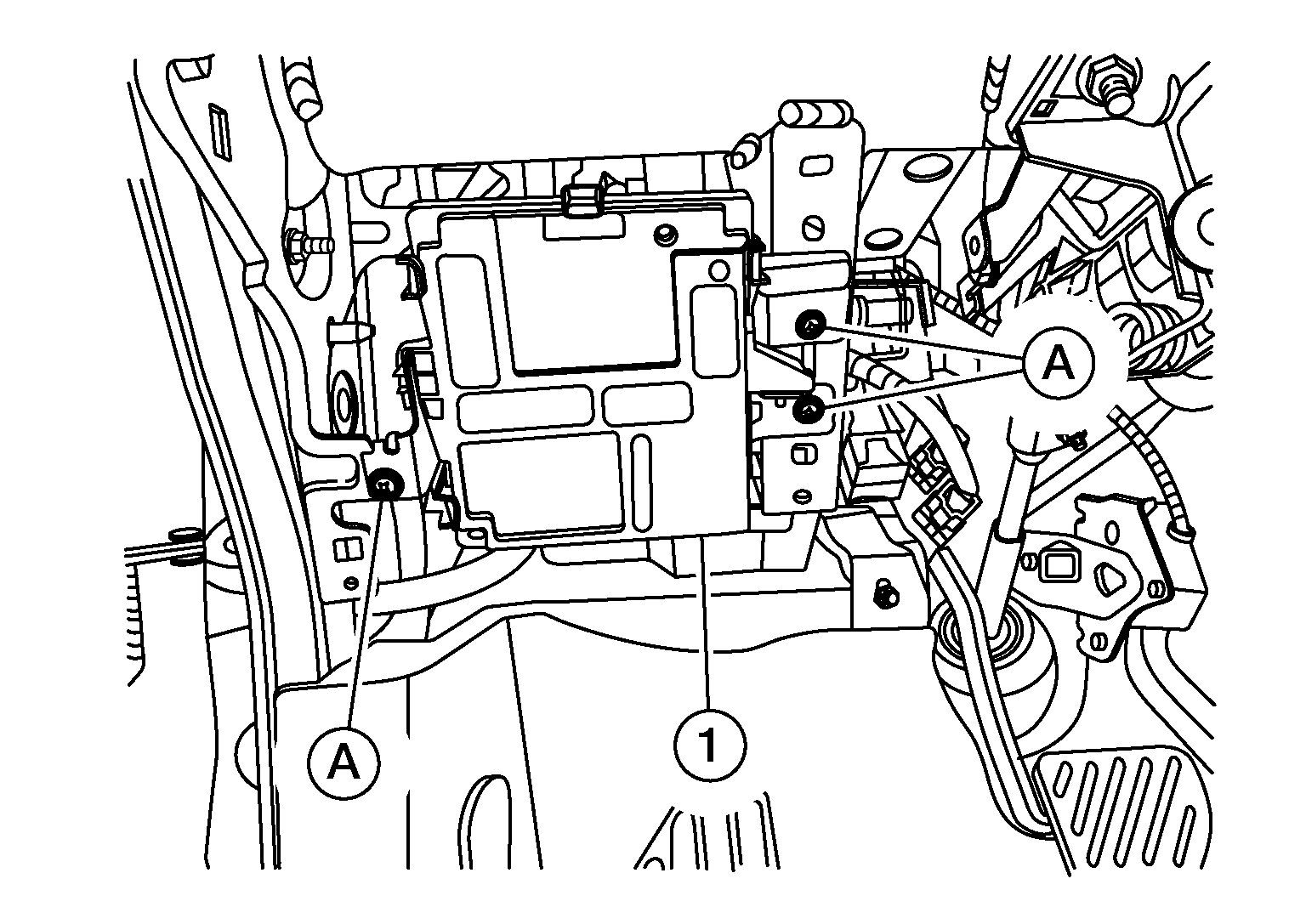

  4. Remove bolts (A) and remove BCM (1).
    GNSDB18211Courtesy of NISSAN NORTH AMERICA, INC.
