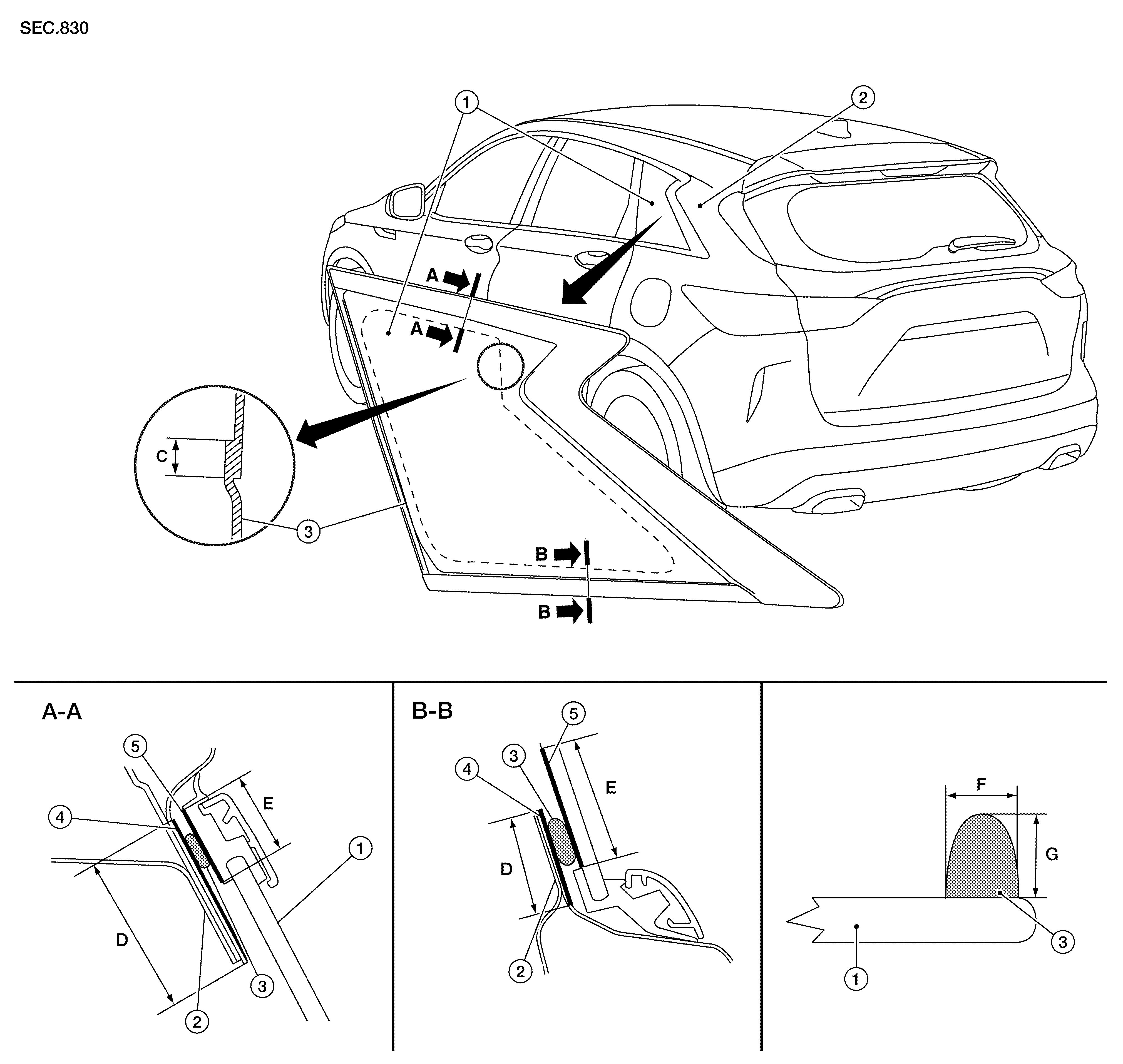

Exploded View

GNSDB58366

Courtesy of NISSAN

1.	Quarter window glass	2.	Body side outer	3.	Adhesive
4.	Body primer	5.	Glass primer	C.	30 mm (1.18 in)
D.	20 mm (0.79 in)	E.	15 mm (0.59 in)	F.	7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
G.	12 + 2, - 0 mm (0.47 + 0.08, - 0 in)
