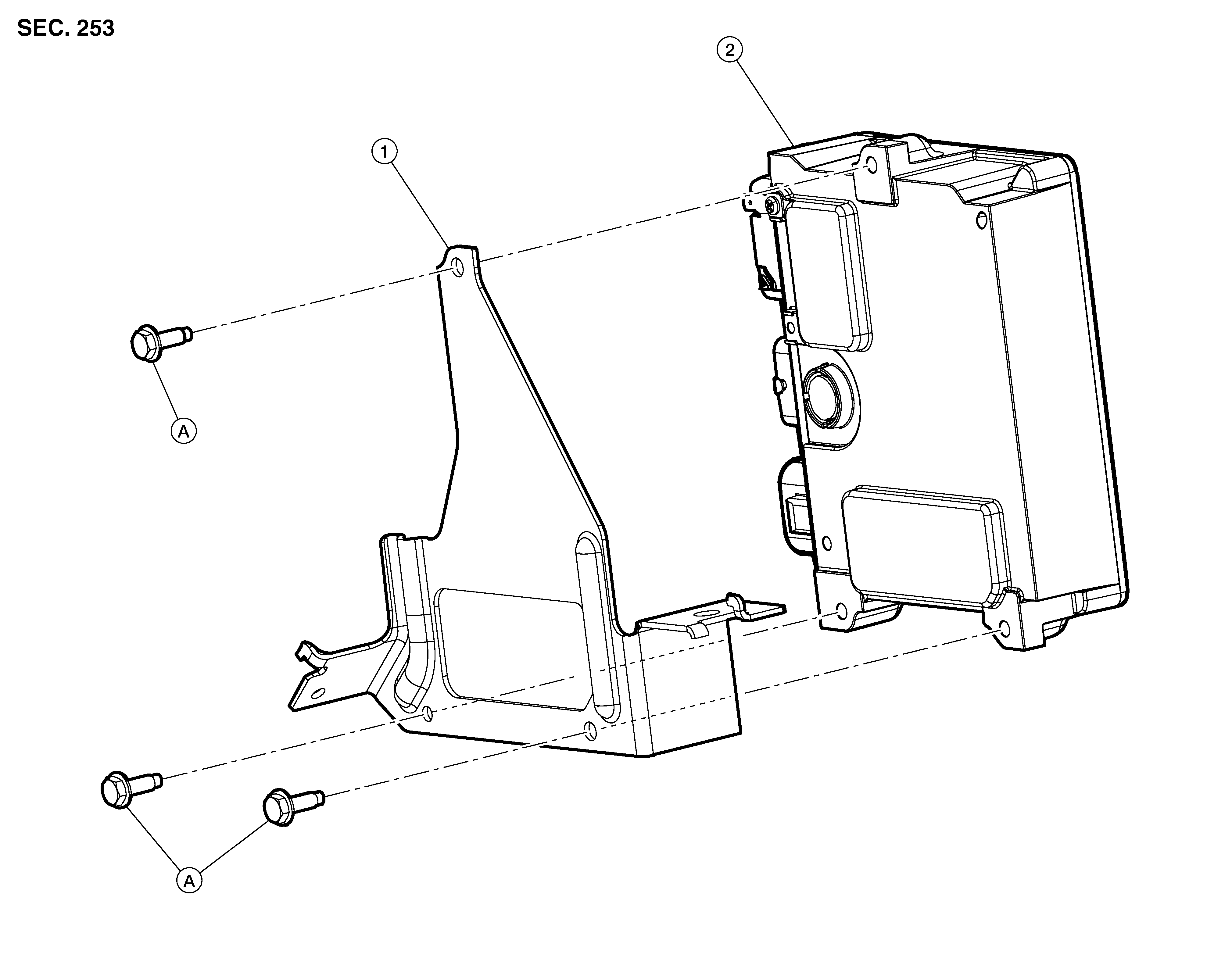

Exploded View

GNSDB39211Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bracket

2.

Steering force control module

A.

Refer to Removal and Installation .
