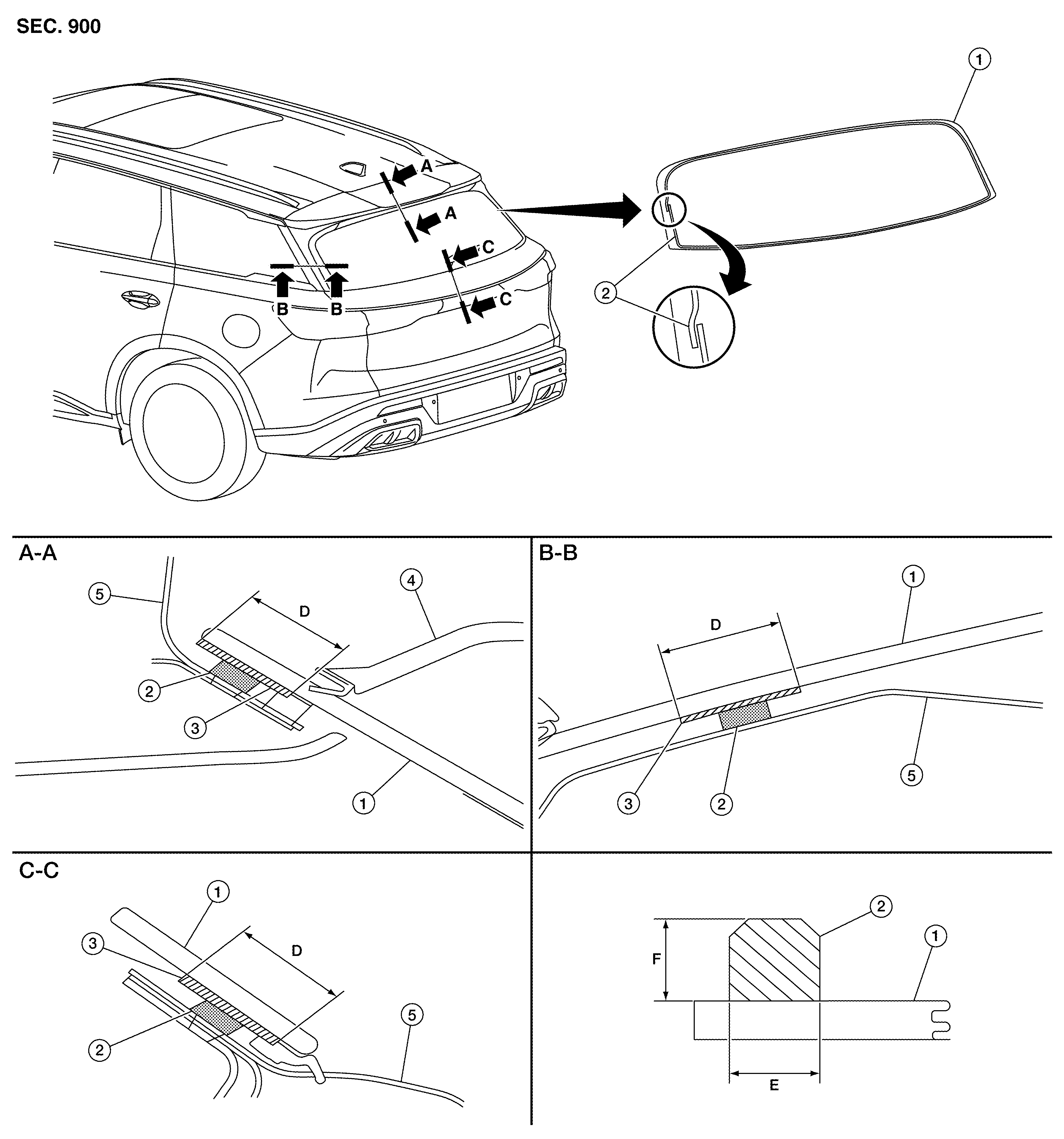

Exploded View

GNSDB57758Courtesy of NISSAN
1. Back door glass 2. Adhesive 3. Primer
4. Rear spoiler 5. Body side outer D. 15 mm (0.59 in)
E. 7 mm (0.28 in) F. 12 mm (0.47 in)
