Home
>>
Infiniti
>>
2023
>>
QX60 Autograph, AWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System (VDC/TCS/Abs)
>>
Removal And Installation
>>
Front Wheel Sensor
>>
Exploded View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

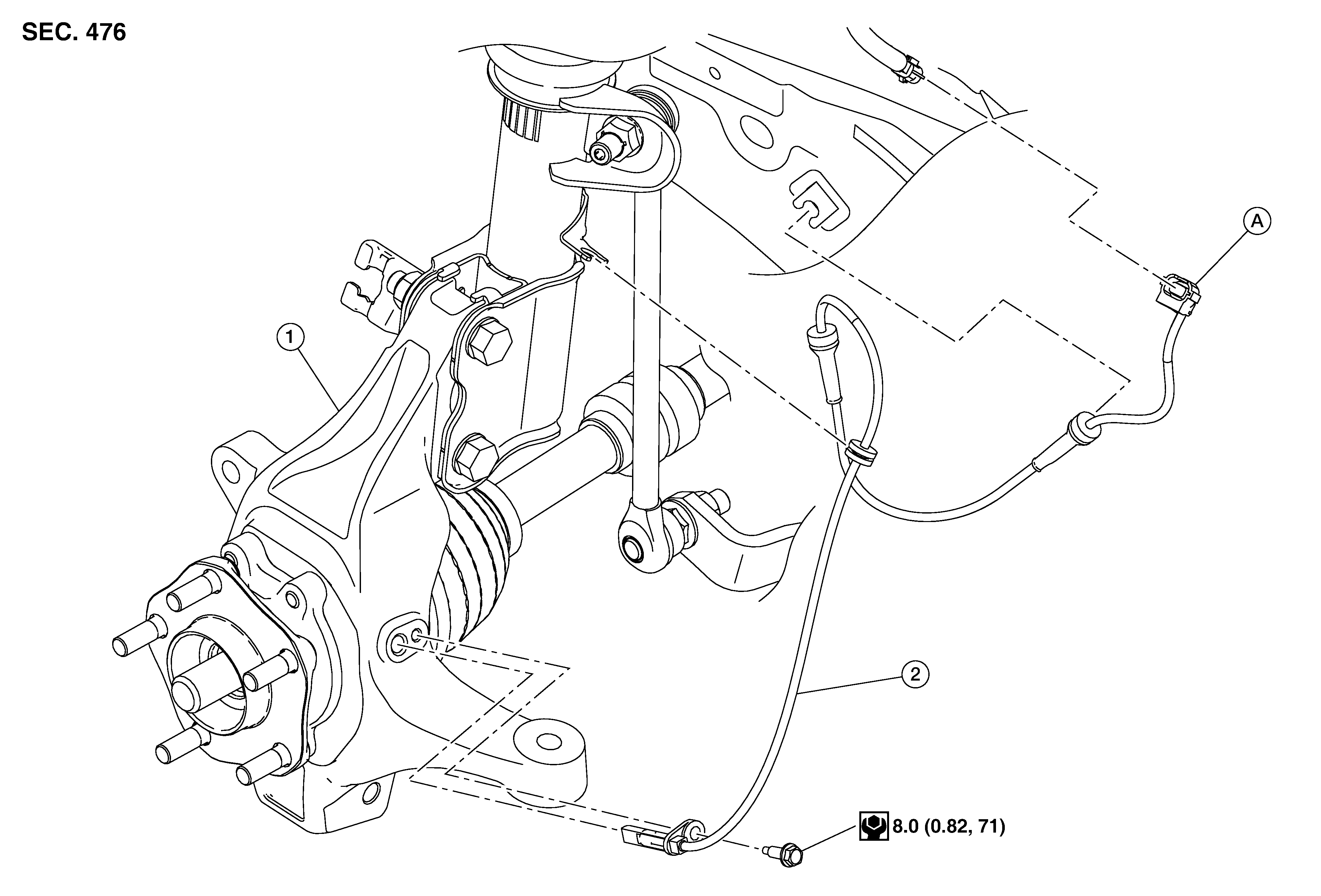

Exploded View
Courtesy of NISSAN
1.
Steering knuckle
2.
Front wheel sensor
A.
Harness connector
Courtesy of NISSAN
