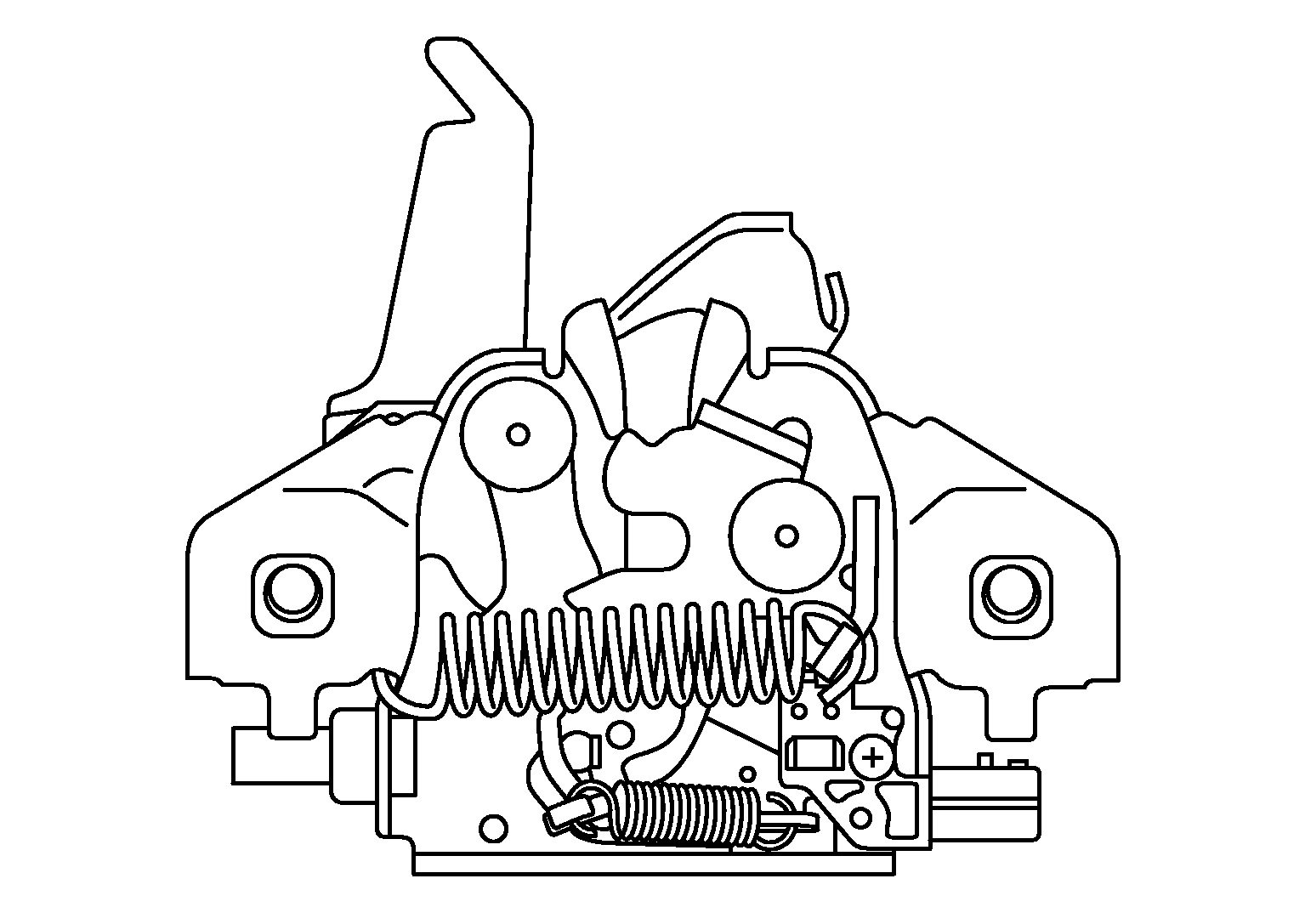

Hood Switch
- Hood switch is integrated into hood lock assembly. It is located under the front of the hood.
- Hood switch detects that hood is open and then transmits ON/OFF signal to IPDM E/R. IPDM E/R transmits hood switch signal to BCM via CAN communication.
 Courtesy of NISSAN
|
