Component Location

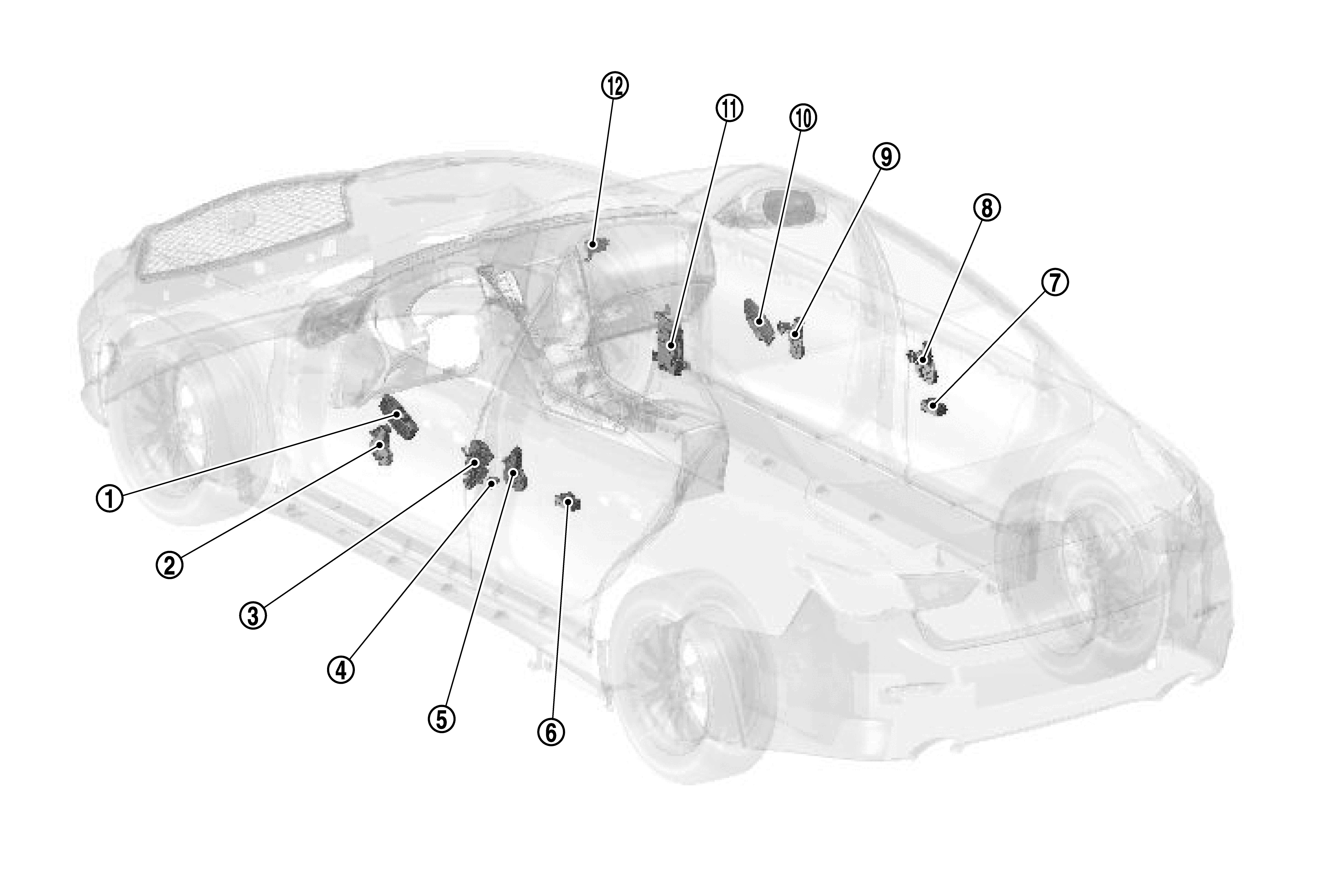

GNSDB147955Courtesy of NISSAN NORTH AMERICA, INC.
No. Component Function
SYMBOL Power window main switch Refer to Component Description .
SYMBOL Front power window motor (driver side) Refer to Component Description .
SYMBOL Front door lock assembly (driver side) (door key cylinder switch)*
SYMBOL Front door switch (driver side) Detects door open/close condition and transmits to BCM. Refer to Component Description .
SYMBOL Rear power window motor LH Refer to Component Description .
SYMBOL Rear power window switch LH Refer to Component Description .
SYMBOL Rear power window switch RH Refer to Component Description .
SYMBOL Rear power window motor RH Refer to Component Description .
SYMBOL Front power window motor (passenger side) Refer to Component Description .
SYMBOL Front power window switch (passenger side) Refer to Component Description .
SYMBOL BCM
  • Supplies power supply to power window switch.
  • Controls retained power.
  • Receives key ID signal from remote keyless entry receiver.
  • Controls keyless power window operation via serial link.
Refer to Component Location .
SYMBOL Remote keyless entry receiver Receives key ID signal from the Intelligent Key, and then transmits to BCM. Refer to Component Description .

*: Not applicable
