IGNITION TIMING : Periodic Maintenance

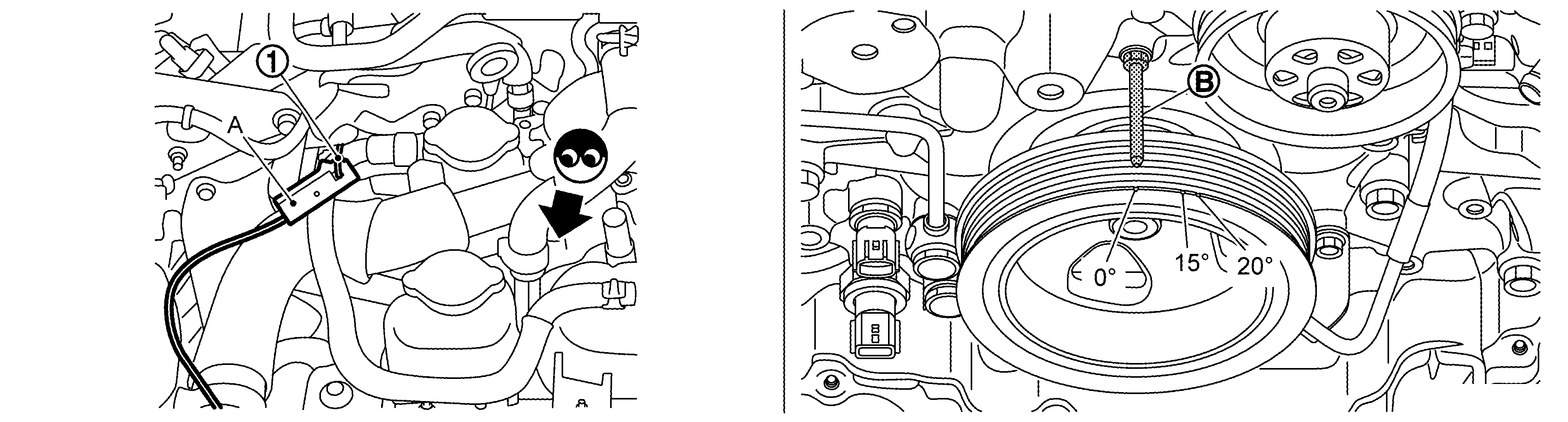

  1. Attach timing light (A) to loop wire as shown in the illustration.
    GNSDB147766Courtesy of NISSAN NORTH AMERICA, INC.
    SYMBOL . Loop wire
    SYMBOL . Timing indicator
  2. Check ignition timing.
