Exploded View

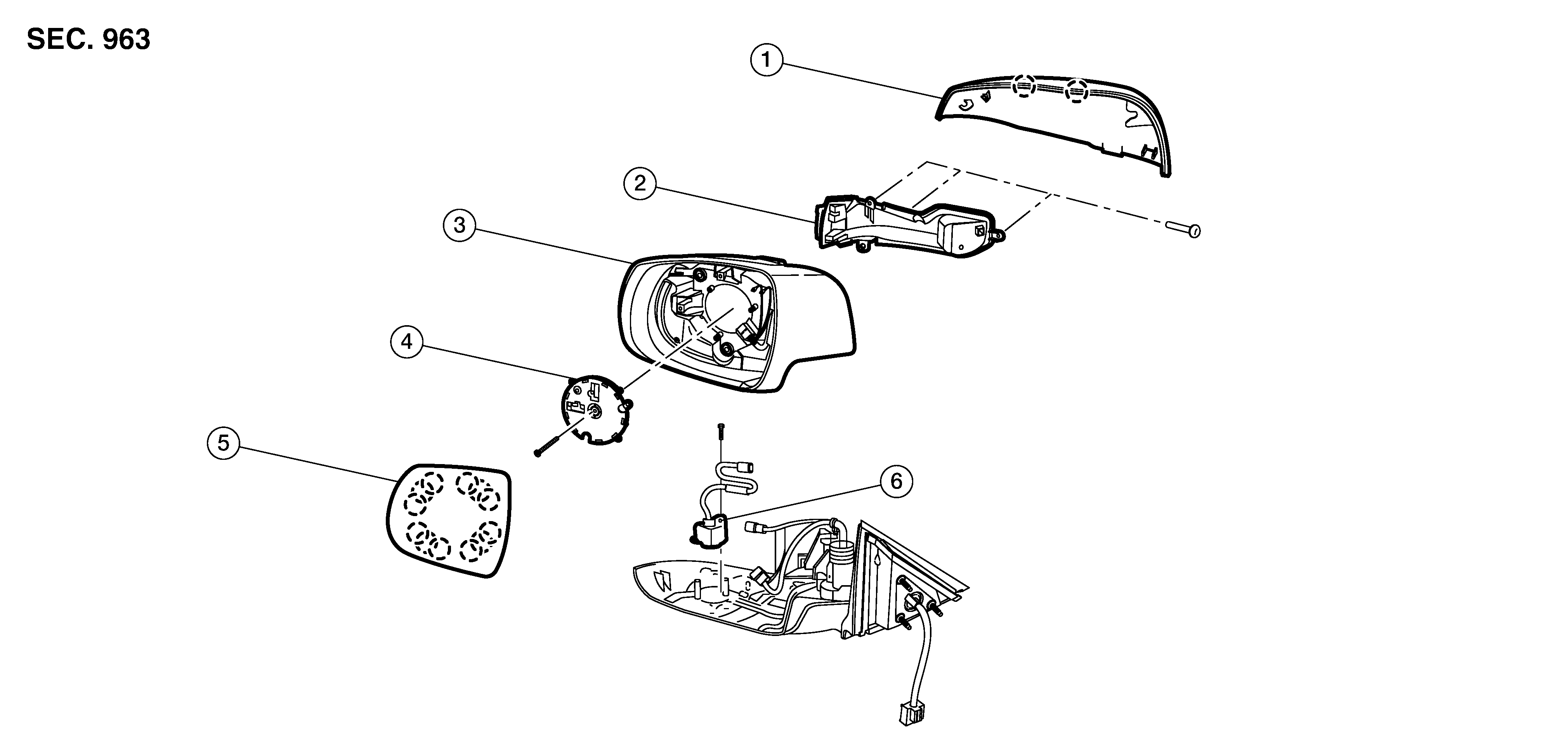

GNSDB140460Courtesy of NISSAN NORTH AMERICA, INC.
1. Door mirror rear finisher 2. Turn signal lamp 3. Door mirror
4. Door mirror actuator 5. Door mirror glass 6. Side camera
SYMBOL Pawl
