Exploded View

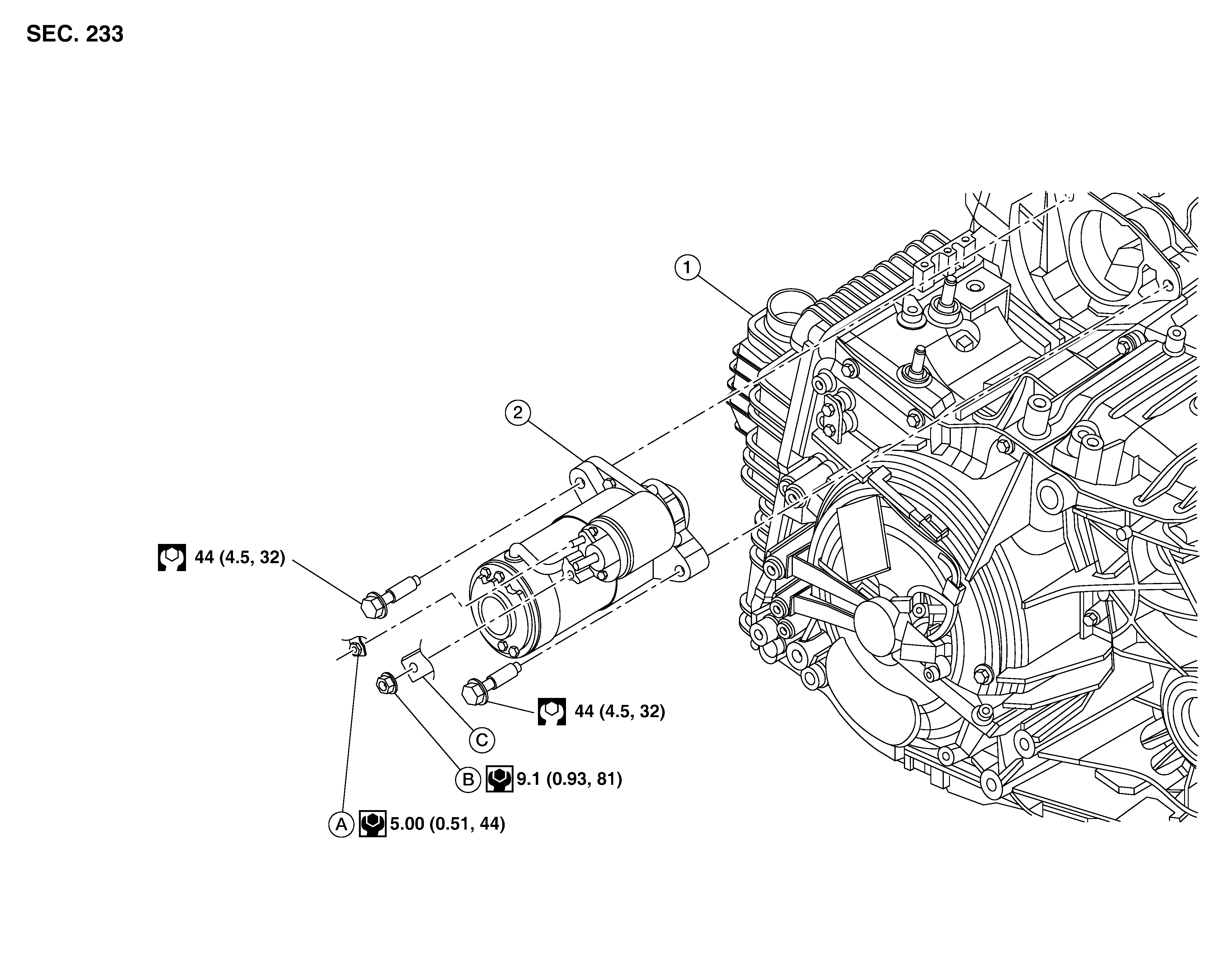

Fig 1: Starter Motor With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Converter housing	2.	Starter motor	A.	"S" terminal nut
B.	"B" terminal nut	C.	"B" terminal harness

NOTE:

The "S" terminal nut is attached to the "S" terminal harness.
