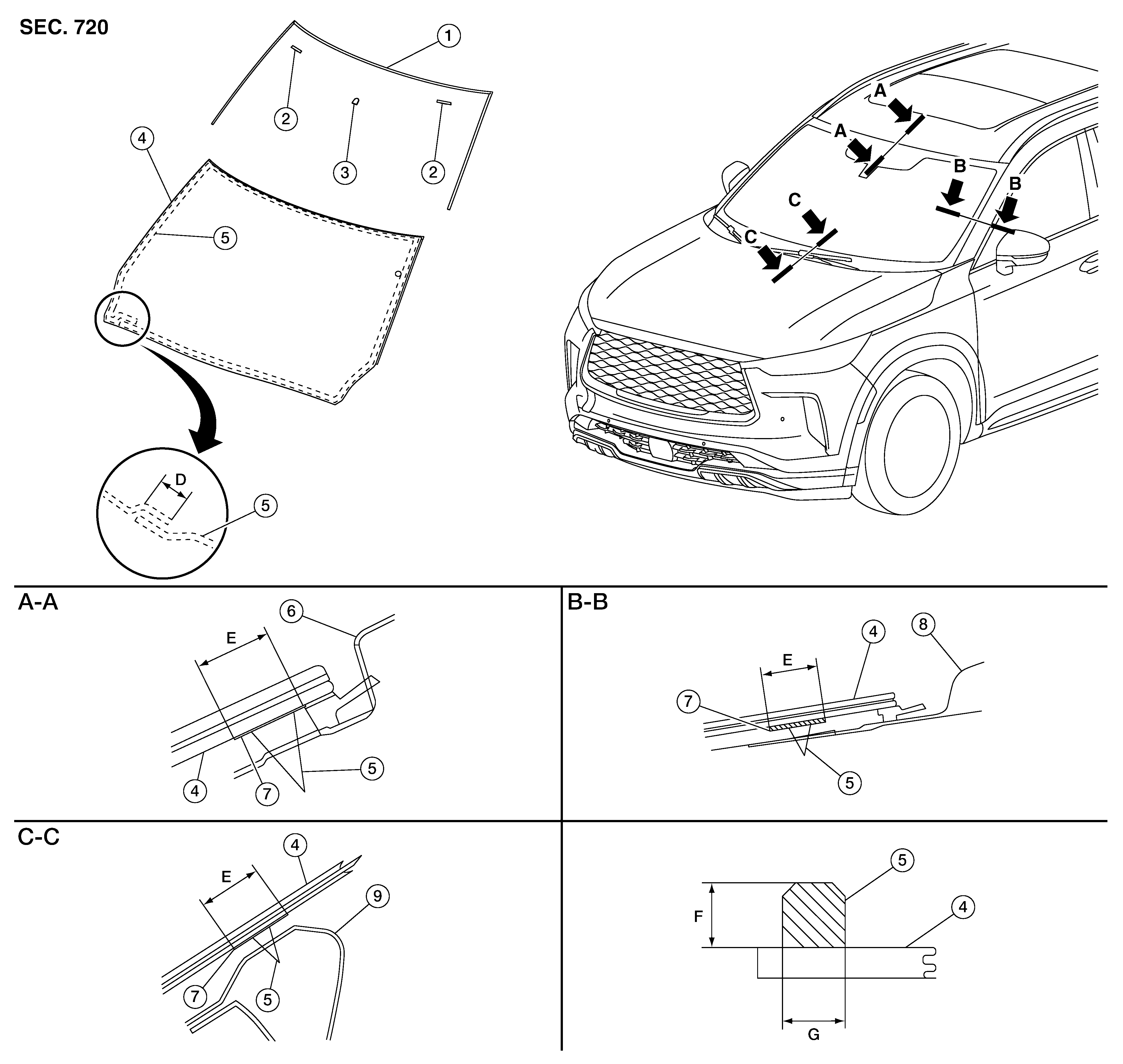

Exploded View

GNSDB139911

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Windshield glass molding	2.	Spacer	3.	Mirror base
4.	Windshield glass	5.	Adhesive	6.	Roof
7.	Glass primer	8.	Body side outer	9.	Cowl top
D.	30 mm (1.18 in)	E.	16 mm (0.63 in)	F.	12 mm (0.47 in)
G.	7 mm (0.28 in)
