AIR LEVELIZER CONTROL MODULE : Exploded View

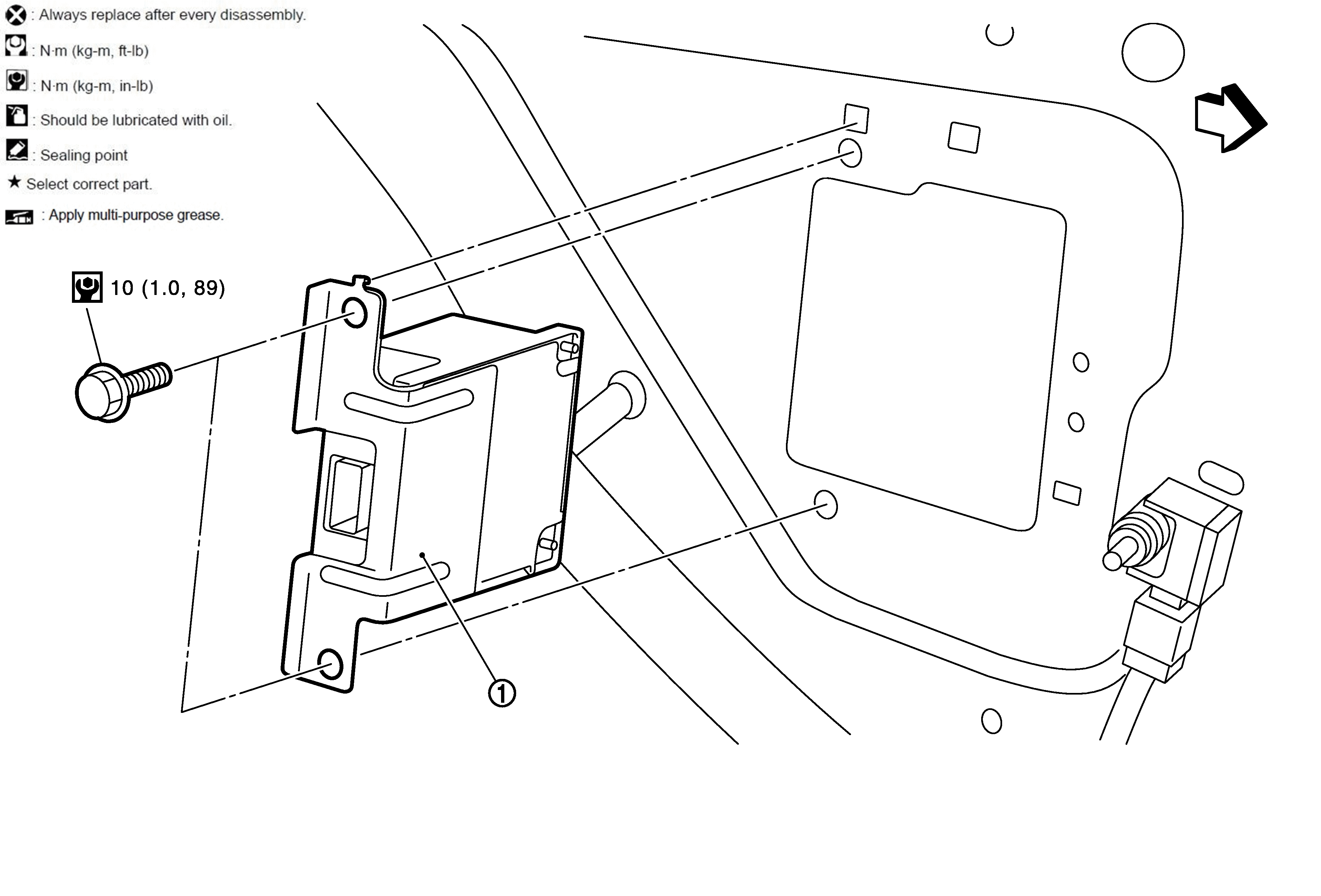

Fig 1: Air Levelizer Control Module With Torque Specifications
GNSDB146071Courtesy of NISSAN NORTH AMERICA, INC.
1. Air levelizer control module
SYMBOL : Vehicle front
SYMBOL : N.m (kg-m, in-lb)
