Glow Plug Relays

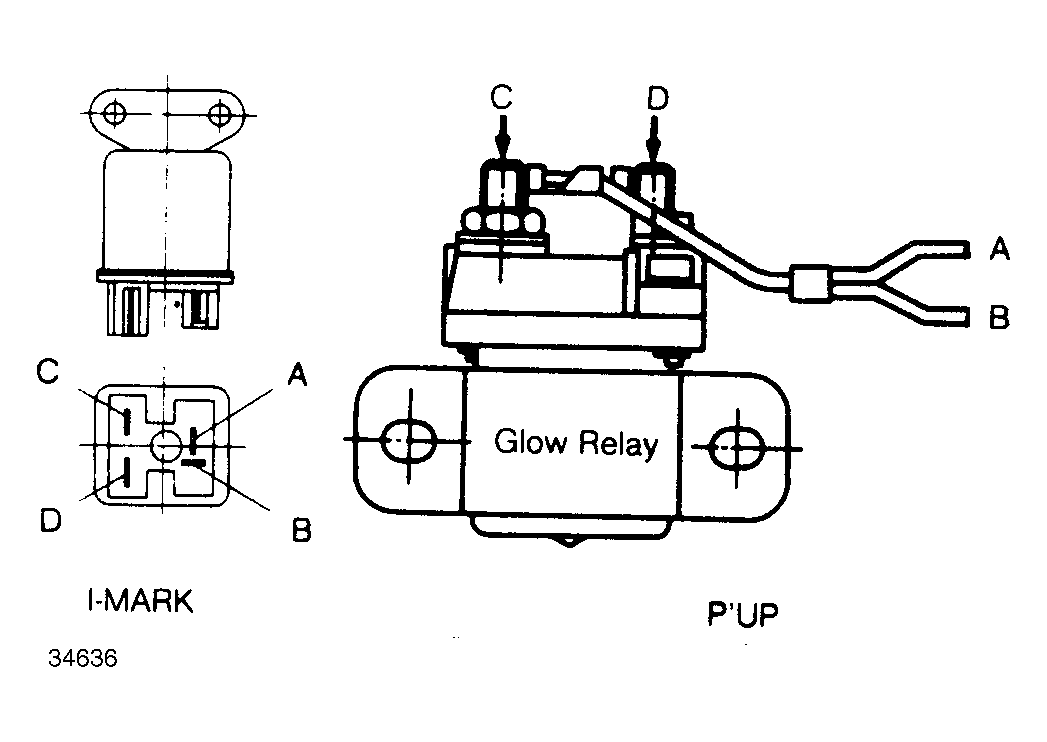

No continuity should be present across terminals "C" and "D". With battery voltage applied to terminals "A" and "B", continuity should be present across "C" and "D". If not, replace relay. See Fig 1 .
No continuity should be present across terminals "C" and "D". With battery voltage applied to terminals "A" and "B", continuity should be present across "C" and "D". If not, replace relay. See Fig 1 .
