Valve Body Assembly: Notes

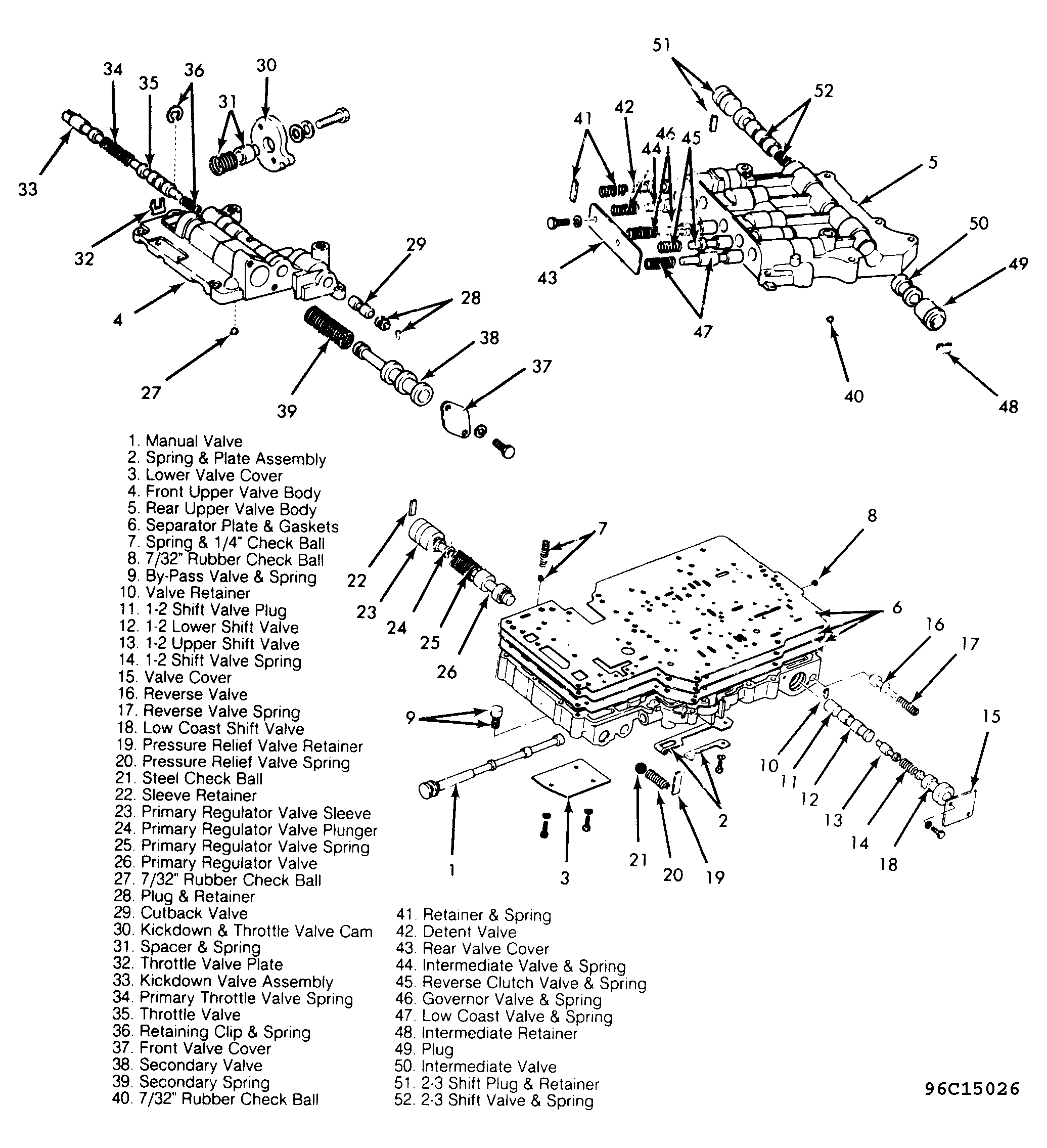

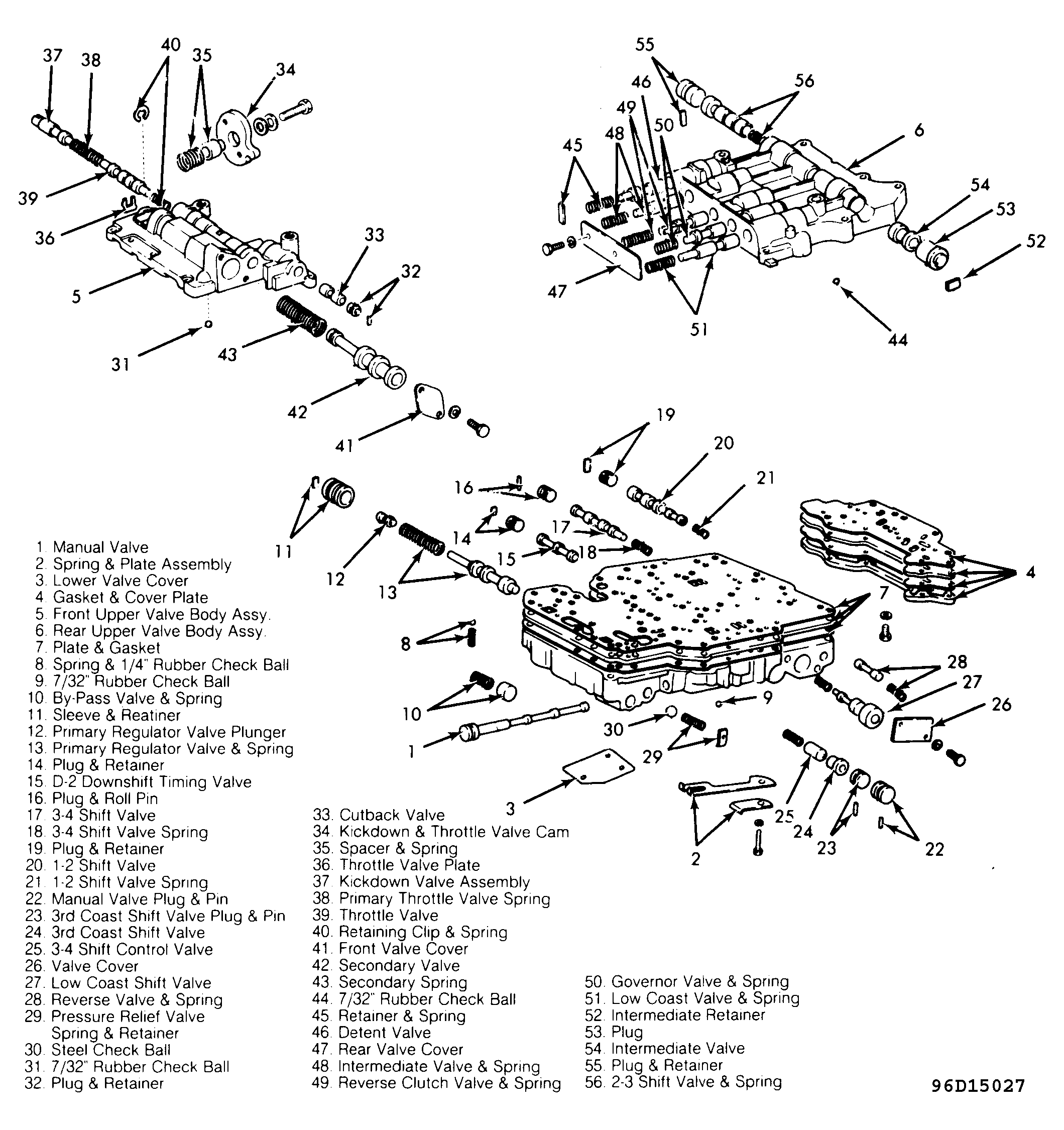

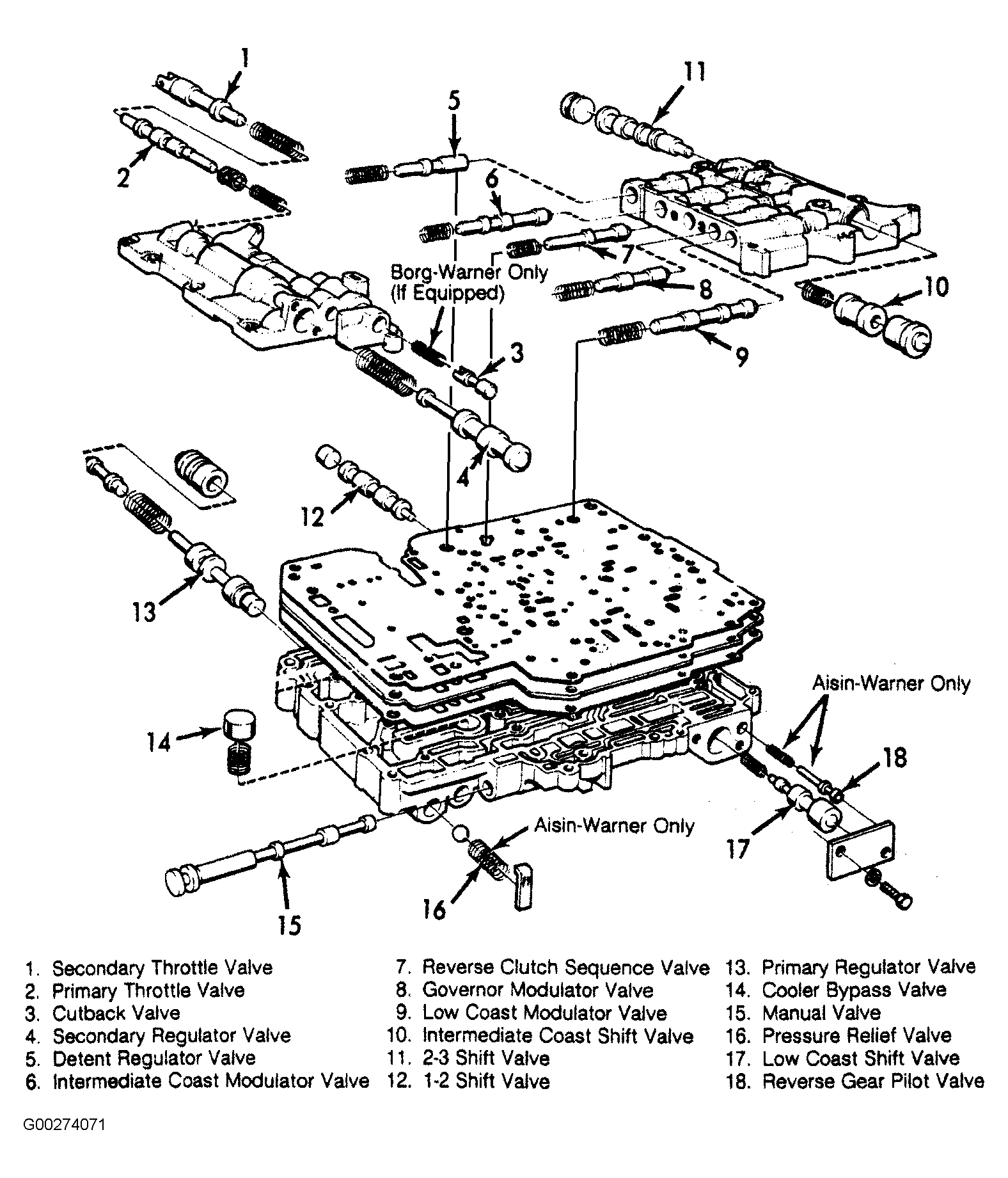

NOTE: Valve body assemblies used on BW and AW transmissions differ slightly. These differences will be called out in following procedures. See Figure , Figure and Figure
.
