Line Pressure Test

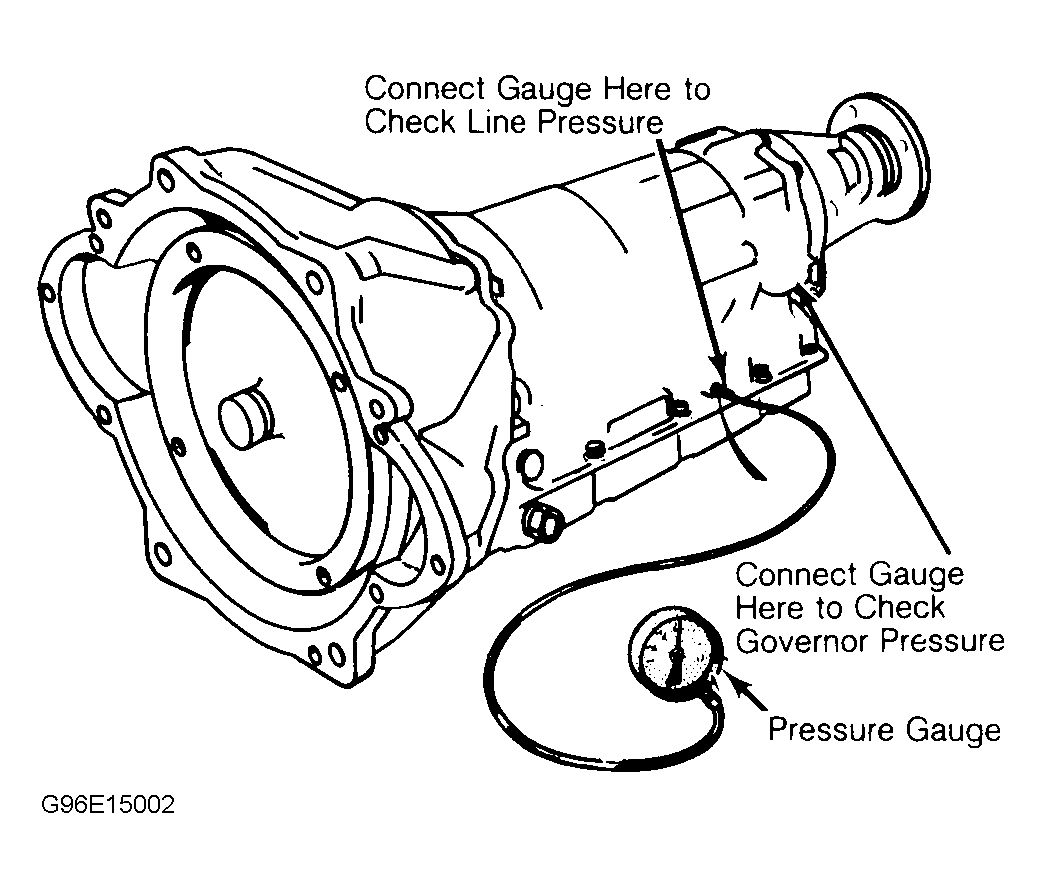

- Road test vehicle to bring transmission to normal operating temperature. Connect pressure gauge to front plug on transmission. See Fig 1 . Place gauge so that it is visible from driver's seat. Connect tachometer to engine.
- Start engine and if necessary, adjust idle speed to 900 RPM (1000 RPM on I-Mark). Depress brake pedal and place selector lever in "D". Note line pressure reading on gauge. Pressure should be approximately as shown in LINE PRESSURE SPECIFICATIONS table.
- Repeat line pressure test with selector lever in "R". Pressure should be approximately as shown in LINE PRESSURE SPECIFICATIONS table.
Test port locations apply to all transmissions.
LINE PRESSURE SPECIFICATIONS
| Application | psi (kg/cm2 ) | |
|---|---|---|
| AW 55 | ||
| In "D" | 57-64 (4.0-4.5) | |
| In "R" | 82-97 (5.8-6.8) | |
| AW 70 & 71 | ||
| In "D" | 65-77 (4.6-5.4) | |
| In "R" | 108-117 (7.6-8.2) | |
| BW 55 | ||
| In "D" | 75-90 (5.3-6.3) | |
| In "R" | 104-129 (7.3-9.1) | |
