Injection Pump Timing: I-Mark

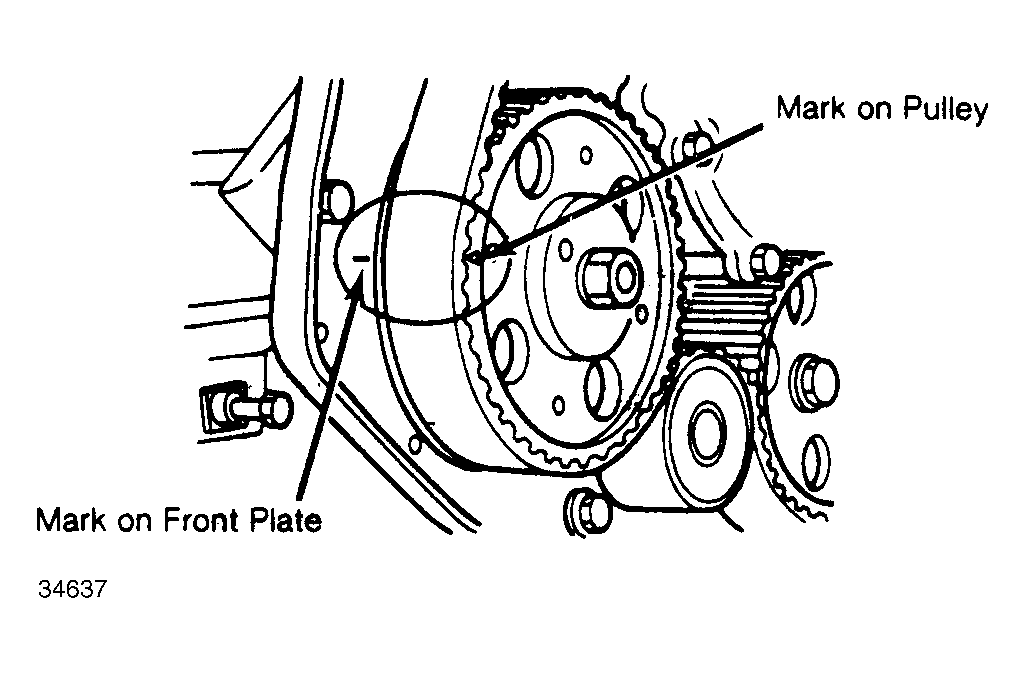

- Check that notch in pump flange is in line with notched line on front plate. Set No. 1 cylinder at TDC of compression stroke. Remove injection pump pulley cover (upper front cover). Ensure timing marks are aligned. See Figure .

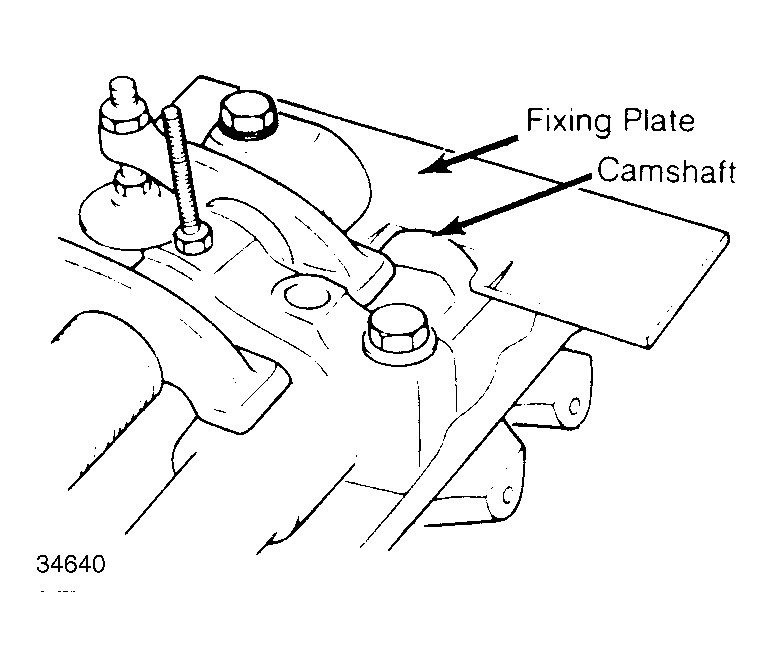

- Remove valve cover and rear plug. Check that fixing plate fits smoothly into slit at rear end of camshaft, then remove fixing plate. See Figure . Disconnect injection pipe from pump (using back-up wrench) and remove fuel distributor head screw.

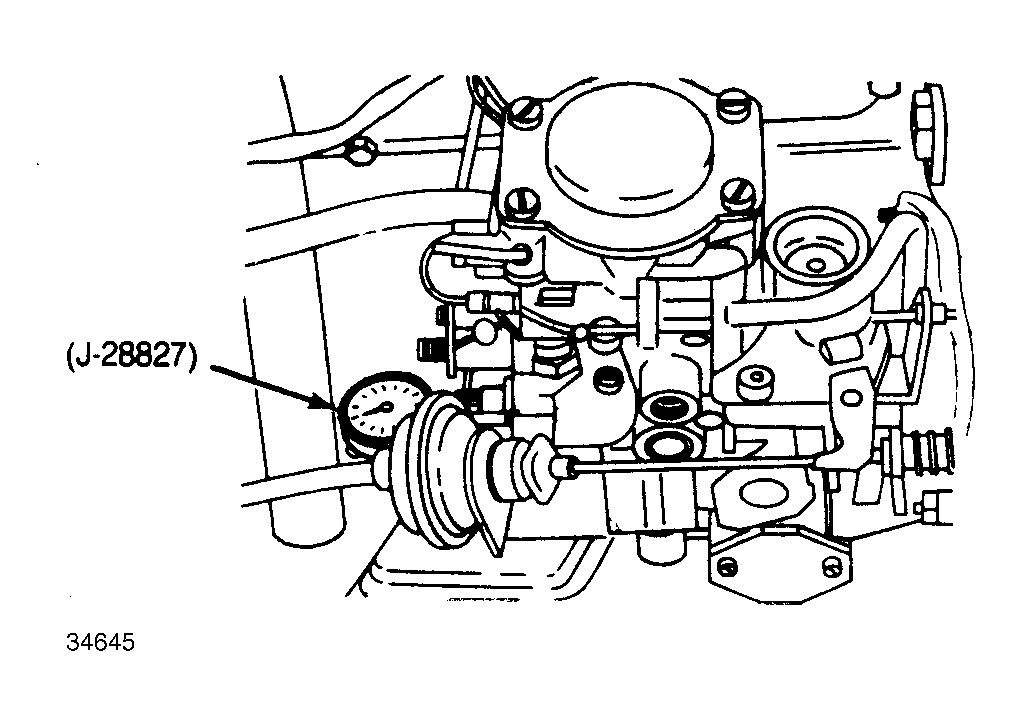

- Install Timing Gauge Tool (J-28827). See Fig 1
. Set lift approximately .04" (1 mm) from plunger. Turn engine until No. 1 cylinder is 45-60° BTDC, then set dial indicator to zero.

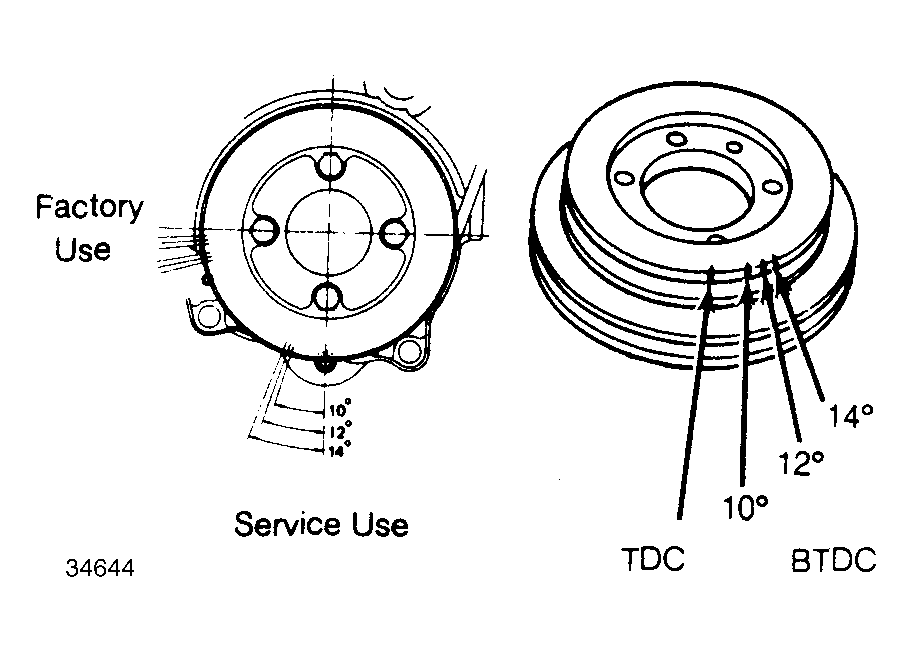

NOTE: Crankshaft pulley has 7 notched lines (3 lines in one area and 4 lines in another). Use group of 4 lines for static timing. Group of 3 lines is for factory dynamic timing.
- Turn crankshaft in normal direction of rotation until timing mark (12° BTDC) on crankshaft pulley is in line with indicator. See Fig 2 . Dial indicator should show .020" (0.5 mm). If not, loosen pump bolts and rotate pump slightly to obtain proper reading.
