Home >> Isuzu >> 1985 >> I-Mark 4D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> Slow Cut Solenoid Check, Chart 17

April 5, 2026: LEMON Manuals is launched! Read the announcement.

Slow Cut Solenoid Check, Chart 17

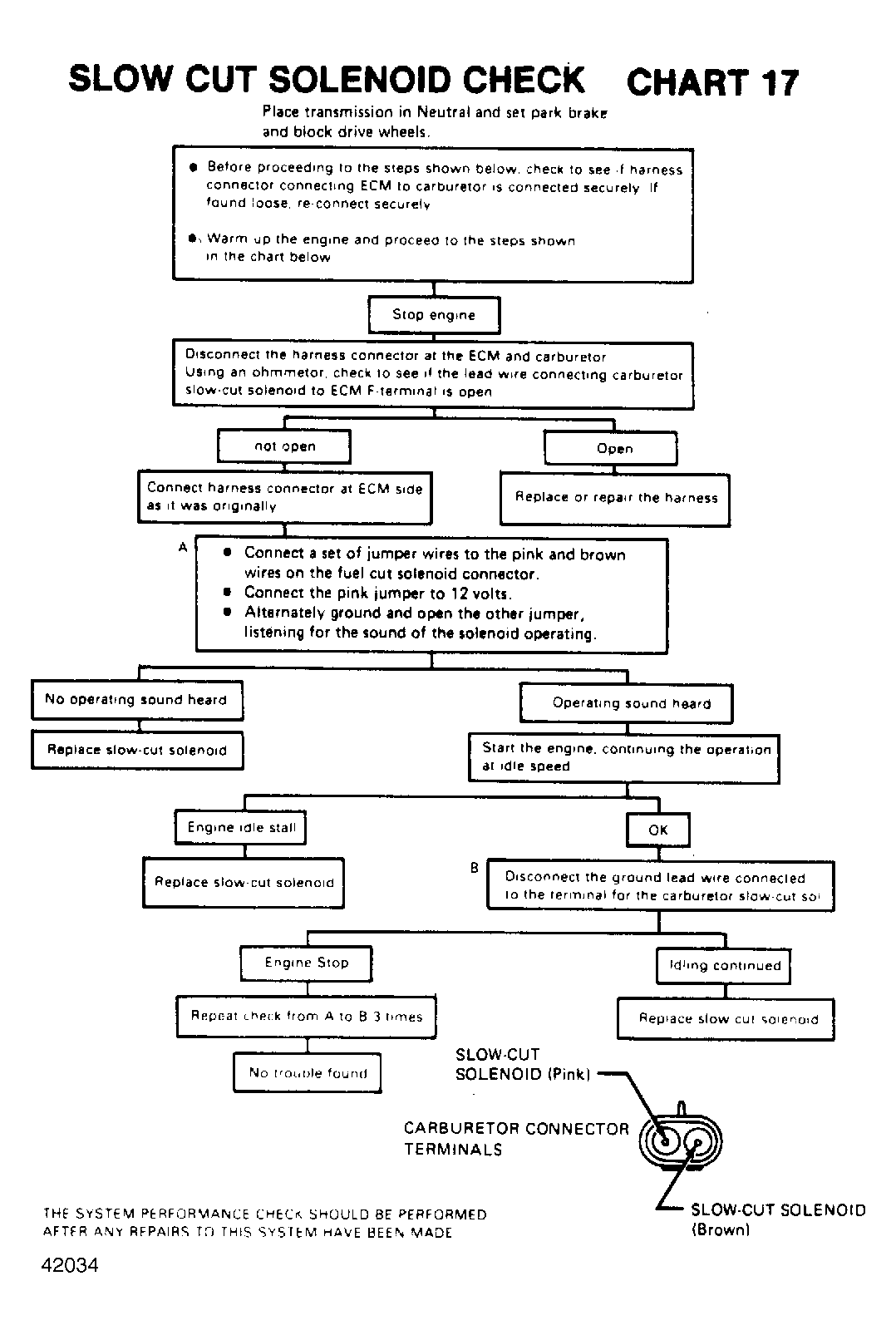

Fig 1: Slow Cut Solenoid Check, Chart 17

G42034
