Disassembly

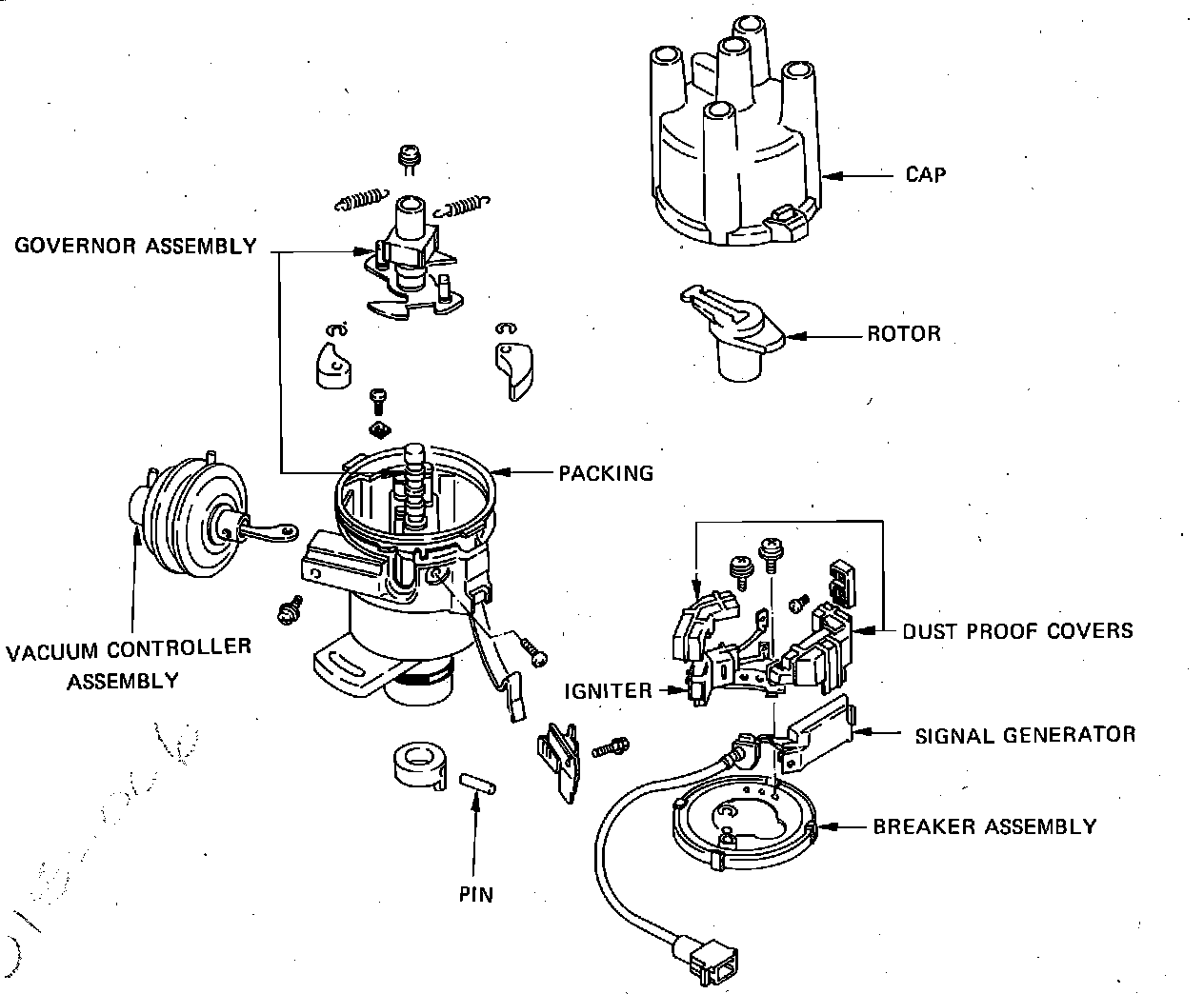

Fig. 6 Distributor exploded view.:

1. Remove distributor from engine.
2. Remove distributor packing, Fig. 6.
3. Remove dust proof covers and igniter (module) from distributor.
4. Remove signal generator from distributor.
5. Remove vacuum advance assembly from distributor.
6. Remove breaker assembly from distributor.
7. Break away caulking on the coupling lug, then remove pin.
8. Remove governor assembly from distributor.
9. Replace any worn and/or damaged parts as required.
