Gasoline Models

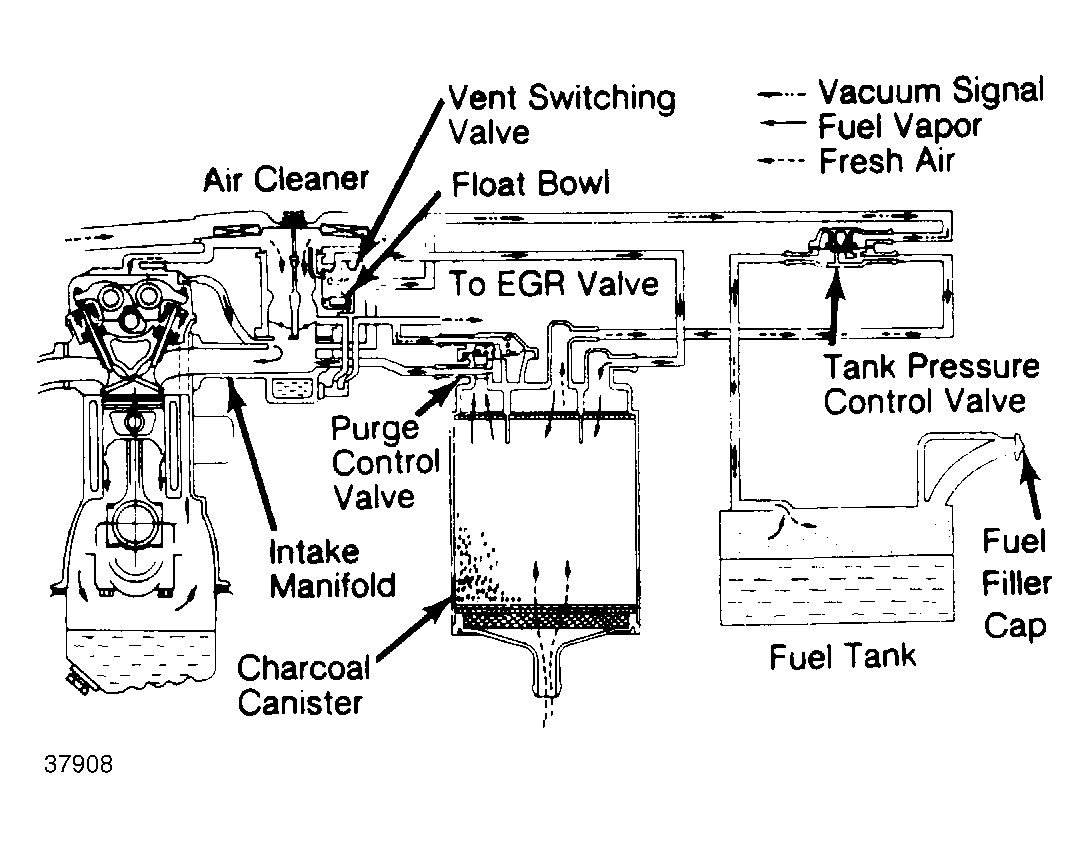

System is designed to route fuel vapor from fuel tank and carburetor into carbon canister where they are stored until intake vacuum draws vapor into combustion chambers for burning.
Components include a sealed filler cap, charcoal canister and purge control valve, solenoid operated vent switching valve (carbureted engines), thermal vacuum valve tank pressure control valve, and connecting lines and hoses.
