Initial Feedback System Performance Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Initial Feedback System Performance Check

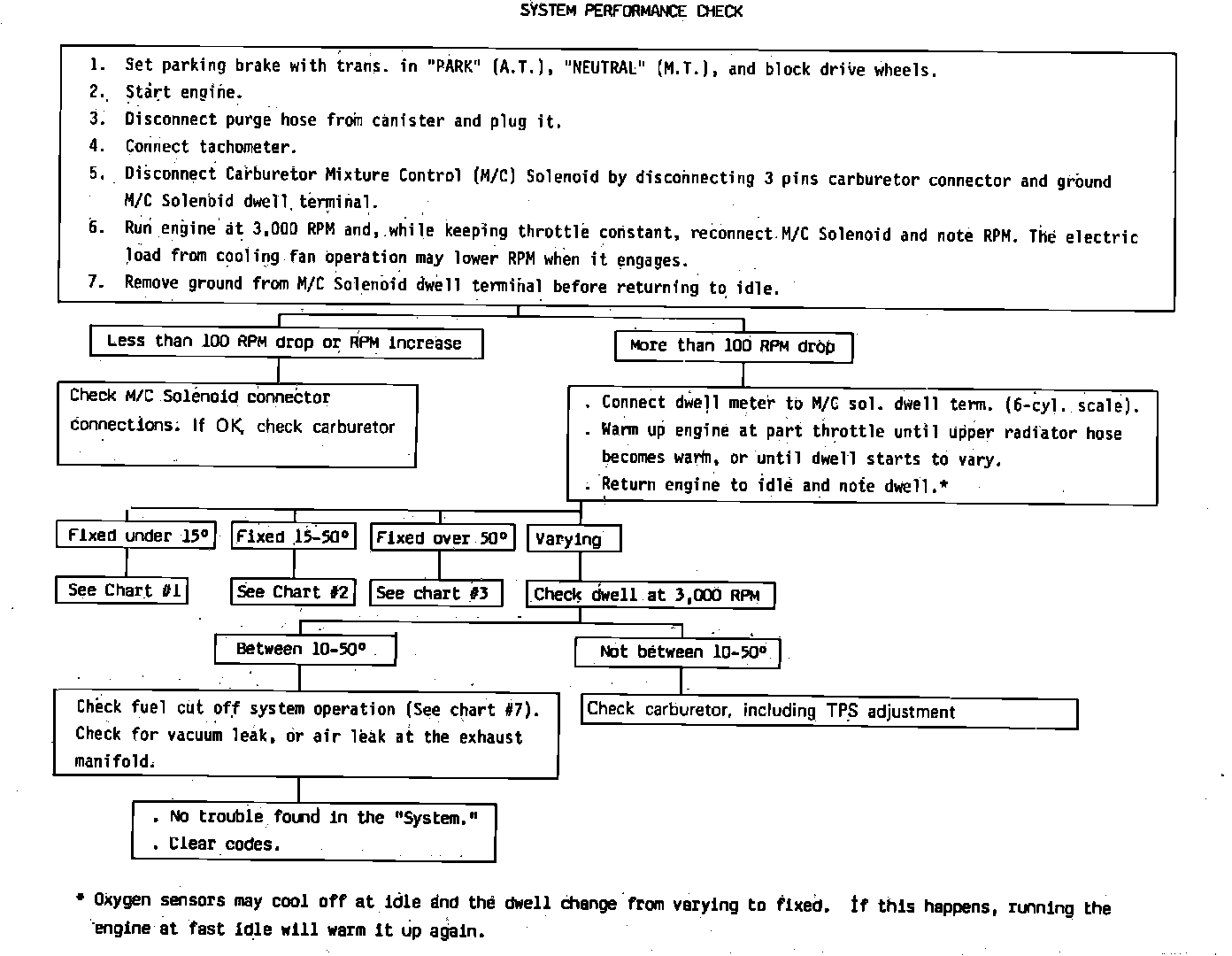

Fig. 7 System performance check:
