Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

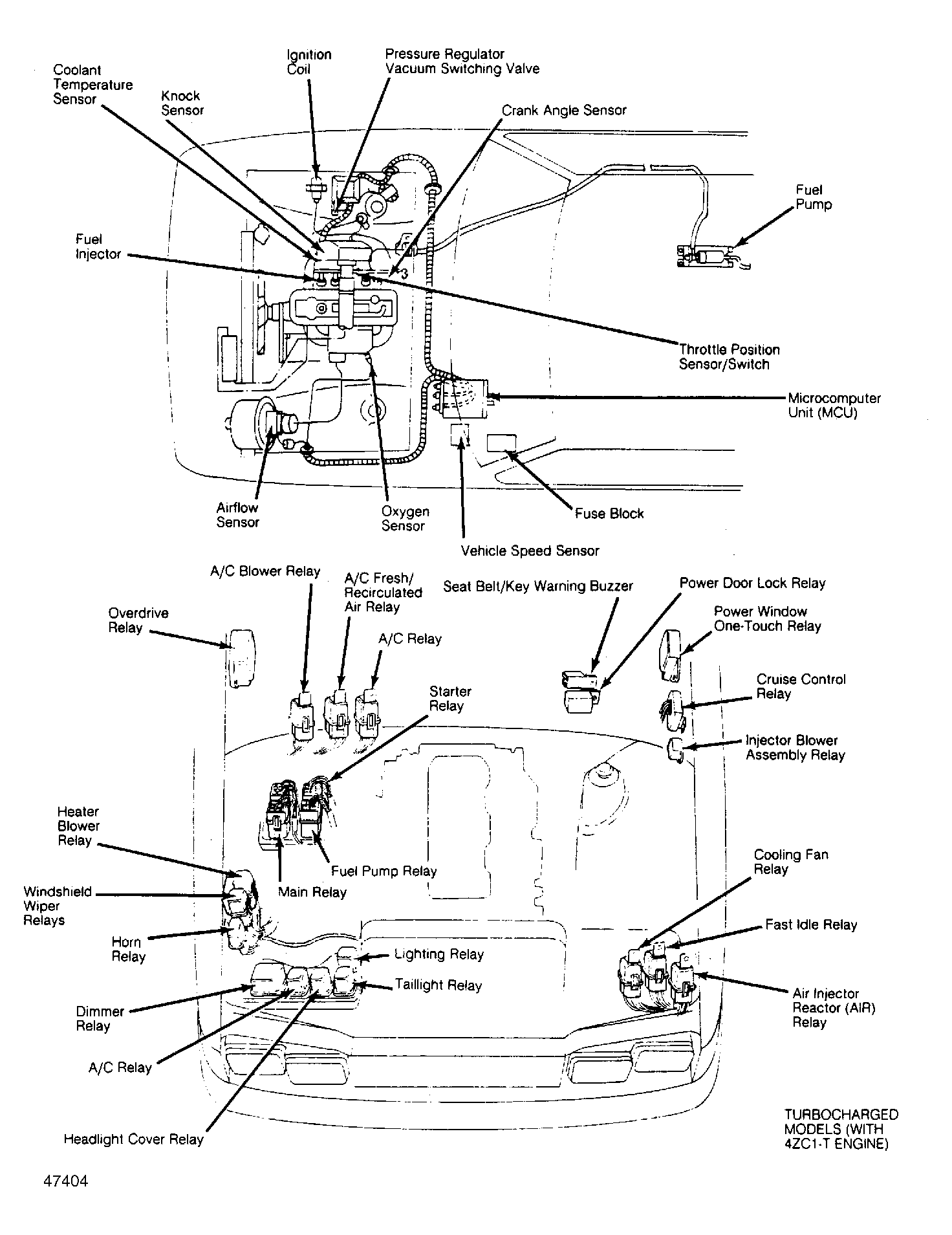

| Fuse Block | On left side of dash, below instrument cluster. See Figure . |
| Fuse/Relay Blocks | On right fender panel, next to battery. |
| Fusible Links | On right fender panel, next to battery. |
