Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

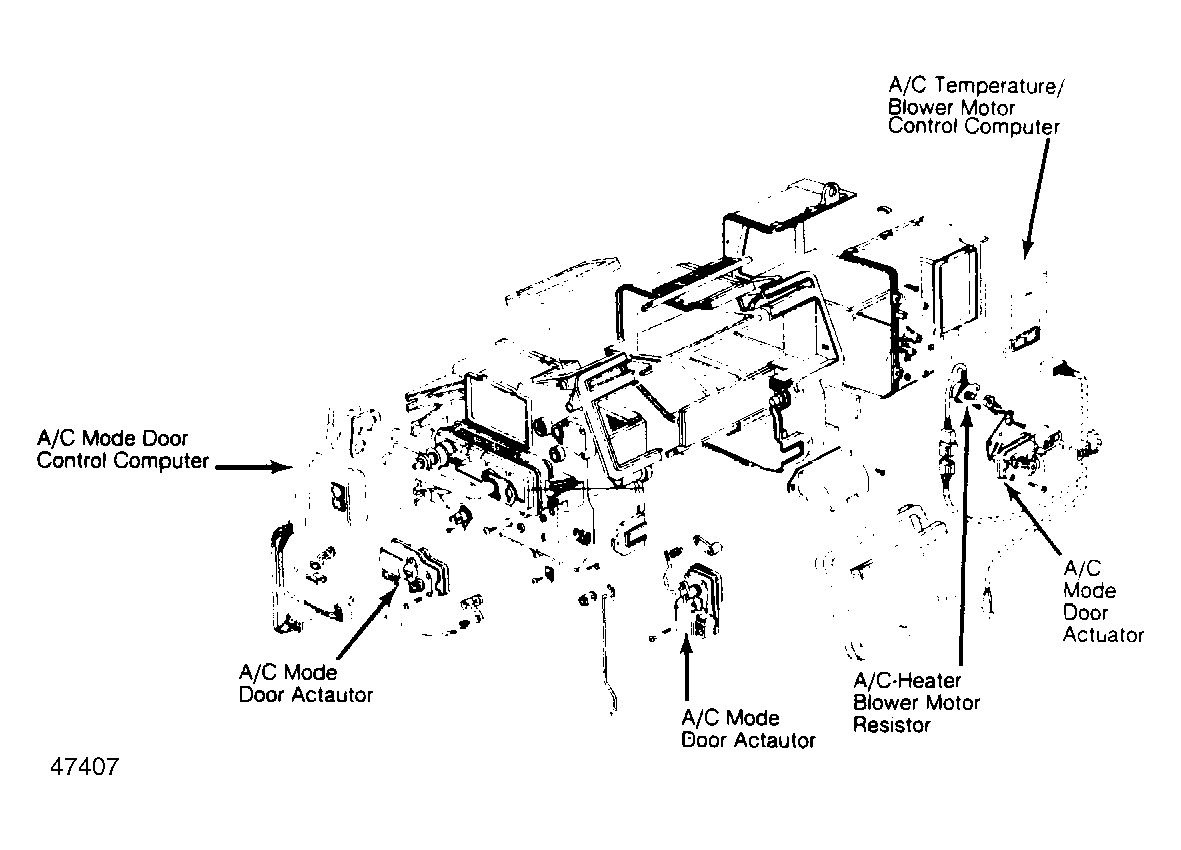

| A/C Mode Door Control Computer | Under left side of center console, on A/C-heater housing. See Figure . |
| A/C Super Heat Switch (SHS) Computer (Turbo) | Under right side of dash, on A/C-heater housing. |
| A/C Temperature/Blower Motor Control Computer | Under right side of center console, on A/C-heater housing. See Figure . |
| Anti-Theft Control Module | Behind luggage compartment rear panel, on right side. |
| Cruise Control Unit | Under left side of dash, on driver's kick panel. |
| Injector Blower Control Module | Under left side of dash, on driver's kick panel. |

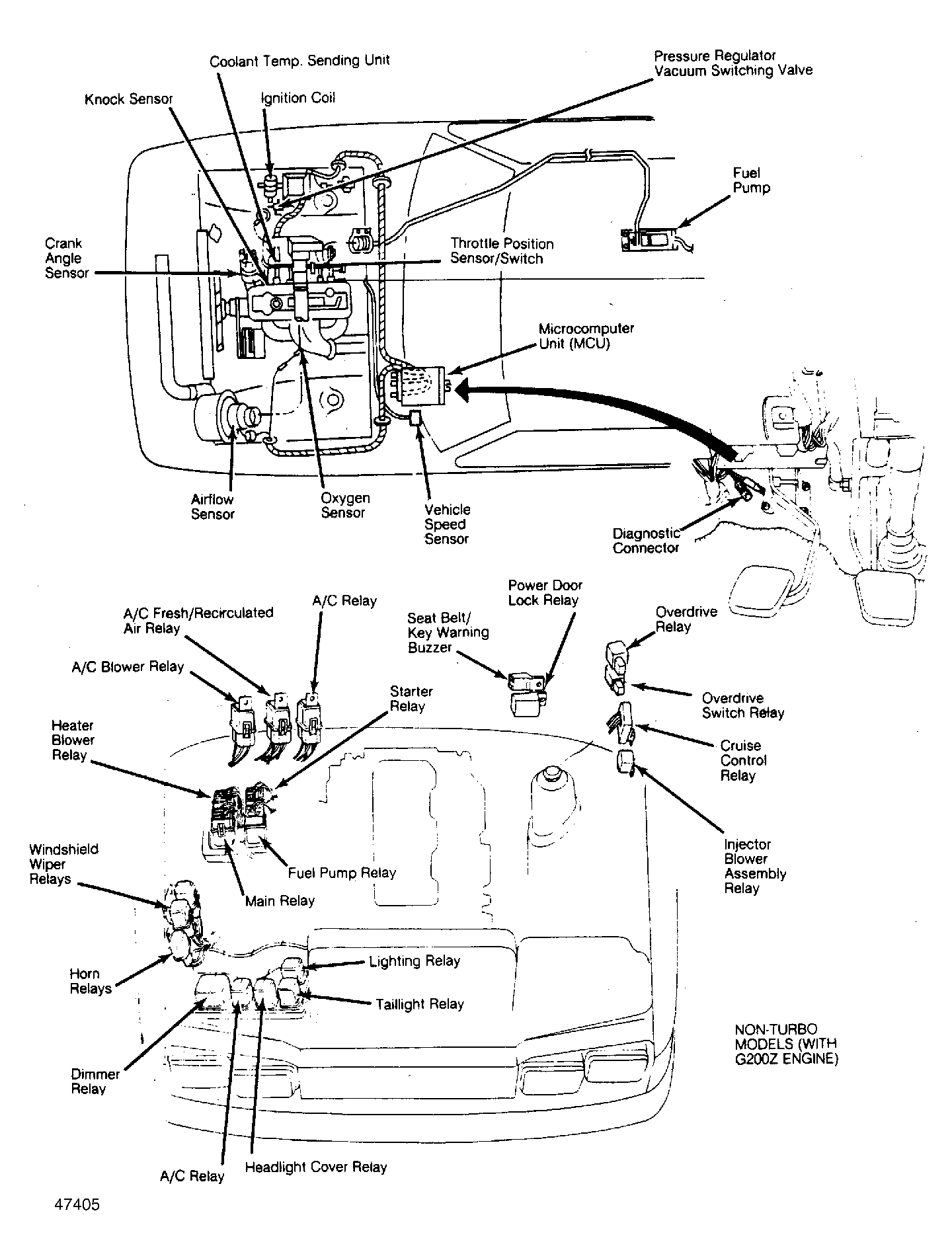

| Microcomputer Unit (MCU) | Under left side of dash, below instrument cluster. See Figure & Figure . |
| Turbo Control System (TCS) Unit | Behind luggage compartment rear panel, on left side. |
