Trooper II Base, 2D Utility, 2.3 L
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Test Charts
>>
Chart 10, Trouble Code 21 Idle Switch Circuit Open Or Wot Switch Circuit Shorted
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart 10, Trouble Code 21 Idle Switch Circuit Open Or Wot Switch Circuit Shorted

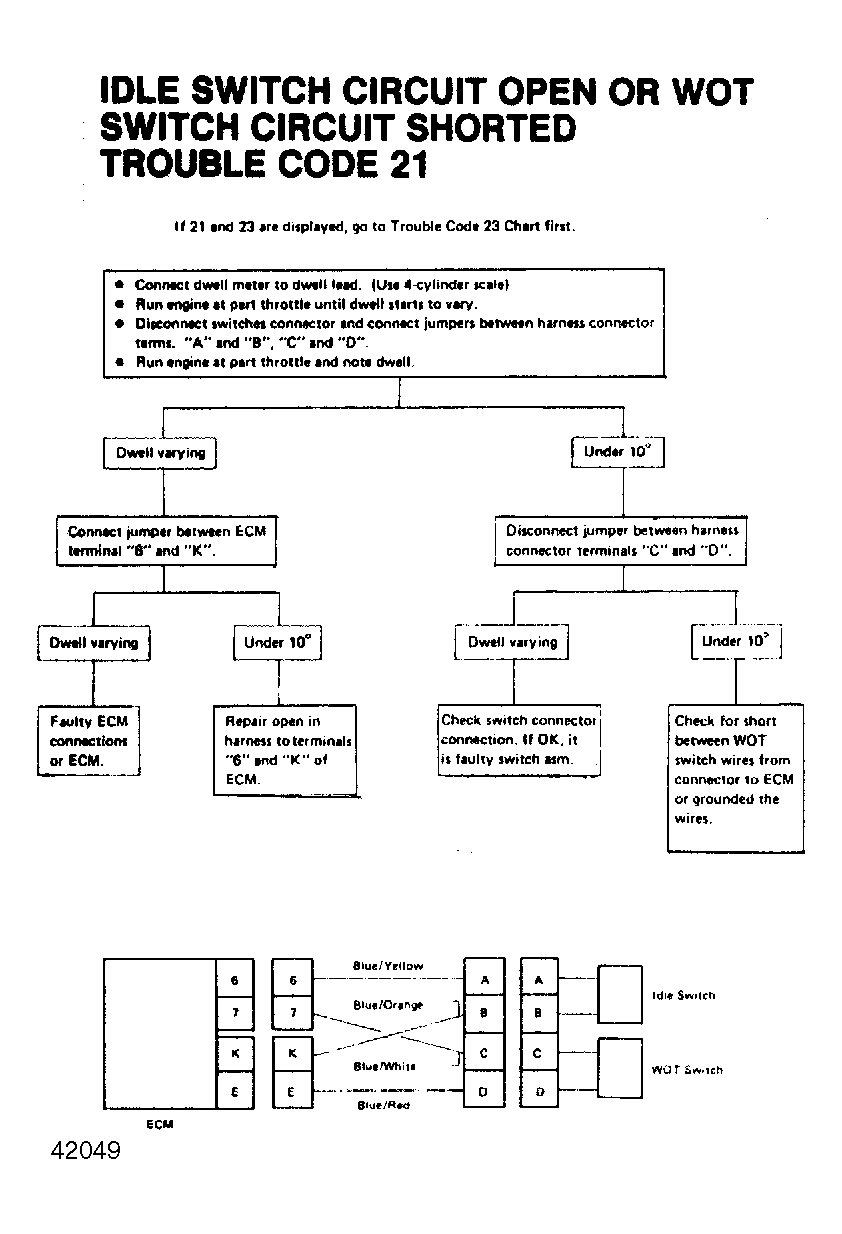

Fig 1: Chart 10
