Home
>>
Isuzu
>>
1987
>>
Trooper II Base, 2D Utility, 2.3 L
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor System
>>
Test Charts
>>
Chart 13, Trouble Code 23 Mixture Control (M/C) Solenoid Circuit Open Or Grounded
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Chart 13, Trouble Code 23 Mixture Control (M/C) Solenoid Circuit Open Or Grounded

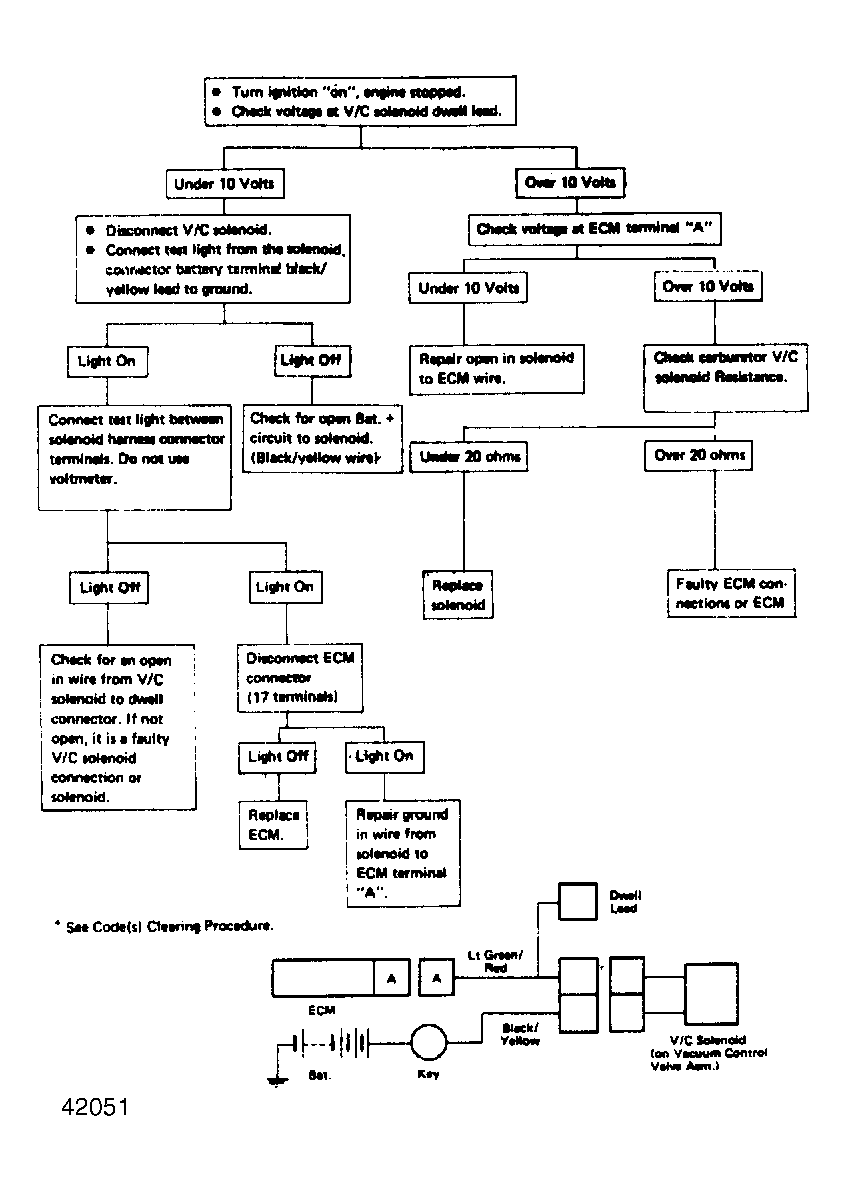

Fig 1: Chart 13
