System Perfomance Check

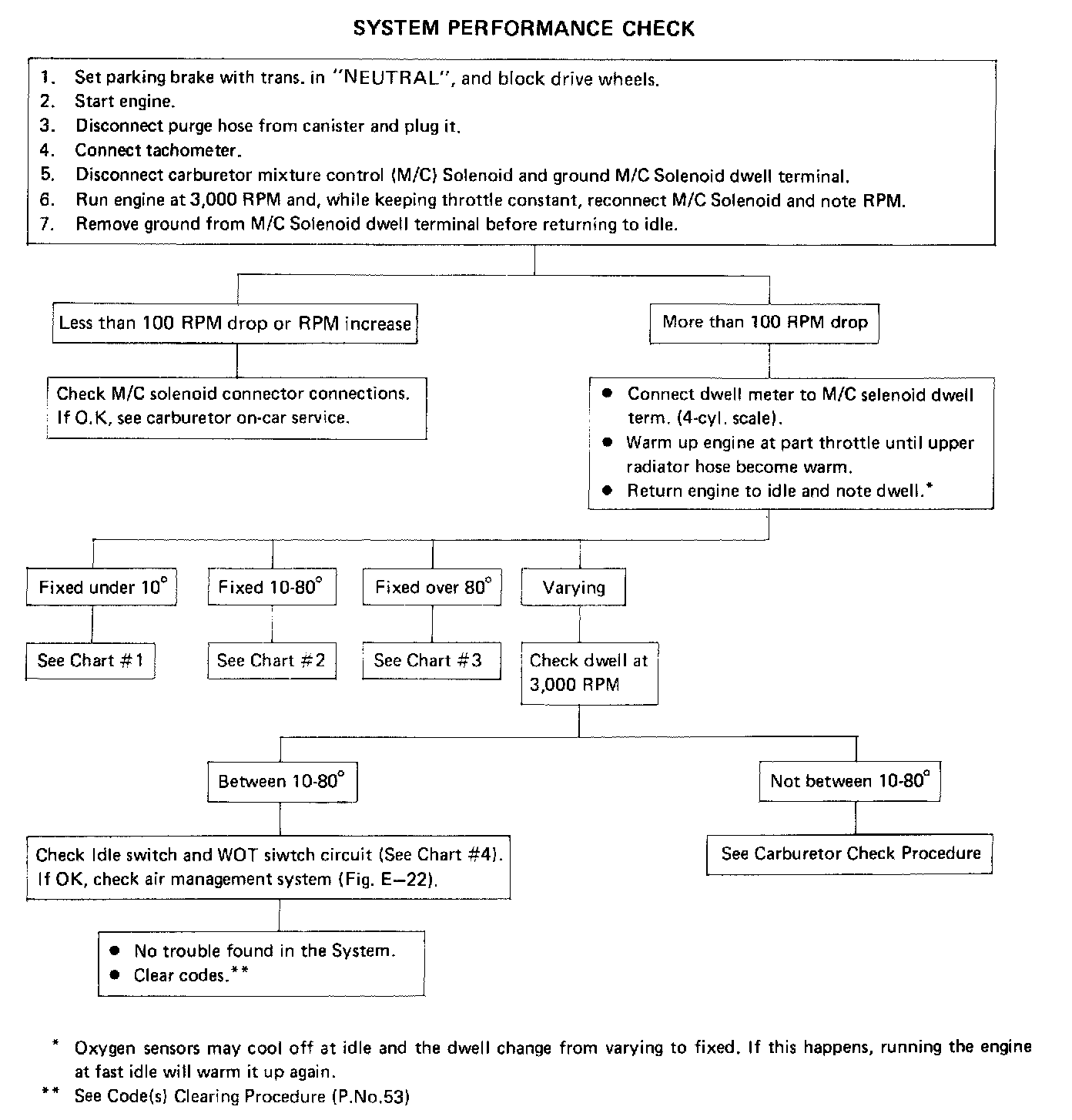

Fig. E-4:

SYSTEM PERFORMANCE CHECK
The System Performance Check (Fig. E-4) is used to check the operation of the M/C solenoid and the main metering circuit using tachometer, and to check the operation of the Closed Loop Emission Control System by the use of a dwell meter.
